SKF 117X140X29DOCR60 Metal face seal (Duo-Cone / mud seal)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 117X140X29DOCR60 metal face seal (duo-cone / mud seal). Rotary metal face seal — two lapped cast-alloy sealing rings loaded together by opposed elastomer torics. Designed to seal shafts running in gritty, abrasive slurry conditions where a lip seal would be immediately destroyed. Standard on track-drive final-drives on tracked excavators, dozers and marine deck-machinery where dredge slurry, cement wash or seawater is present. Nominal shaft speed to 4 m/s.
Technical Specifications
- Type
- Metal face seal (Duo-Cone / mud seal)
- Designation
- SKF 117X140X29DOCR60
- HS code
- 8484.20
- Inside diameter
- 117 mm
- Outside diameter
- 140 mm
- Seal width
- 29 mm
- Shaft diameter, maximum
- 102 mm
- Nominal bore depth
- 13 mm
- Design
- With O-rings (DO)
- Sealing lip material
- Cast iron
- Rubber energizer
- Nitrile rubber (NBR)
- Product net weight
- 0.595 kg
- eClass code
- 23-07-08-02
- UNSPSC code
- 31181602
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8484.20
Cross References
- Caterpillar 7G-1898 1171402960
- Kalsi Seals 1171402960
- CR Services 1171402960
- Trelleborg 1171402960
- Equivalent: 1171402960 (Caterpillar 7G-1898)
- Equivalent: 1171402960 (Kalsi Seals)
- Equivalent: 1171402960 (CR Services)
- Equivalent: 1171402960 (Trelleborg)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 1206EKTN9/C3 Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF
SKF 30232/DF Matched pair / set of tapered roller bearings
SKF
SKF HJ10/600 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF 81118TN Cylindrical roller thrust bearing (81XXX)
SKF
SKF 99092 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AH24126 Withdrawal sleeve
SKF
SKF C2212KTN9 CARB toroidal roller bearing (C xxxx)
SKF

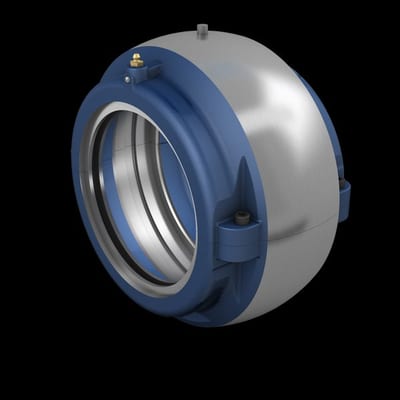

SKF COP.01C150MEX Cooper split roller bearing
