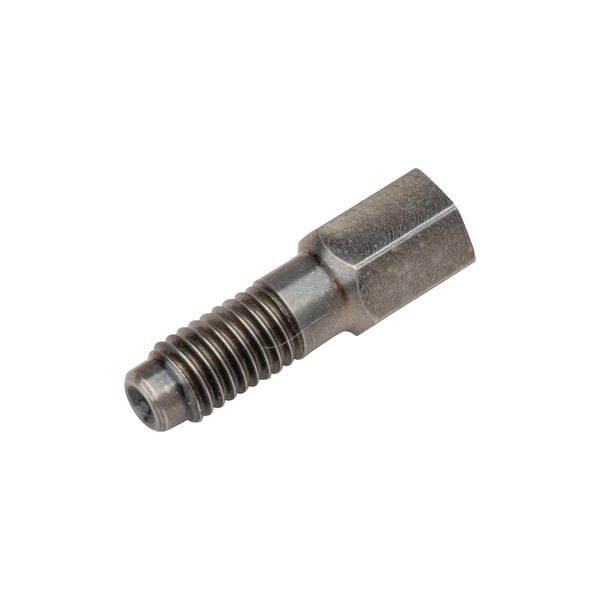

SKF 1077456/100MPa Hydraulic bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 1077456/100MPA hydraulic bearing mounting / dismounting tool. Hydraulic pump, oil injector, or hydraulically-driven nut used to mount a large tapered-bore bearing to its correct radial internal clearance, and to dismount it without shaft damage. SKF HMV-E hydraulic nut, TMHP / THAP pump, or SKF Drive-up-Method oil-pressure kit.
Technical Specifications
- Type
- Hydraulic bearing mounting / dismounting tool
- Designation
- SKF 1077456/100MPA
- HS code
- 8412.29
- Connecting thread 1
- M6
- Connecting thread 2
- M8
- Width across flats
- 10 mm
- Connecting cone diameter
- 4 mm
- Total length
- 33 mm
- Length of connecting thread 1
- 10 mm
- Length of connecting thread 2
- 15 mm
- Maximum pressure
- 1000 bar
- Series
- Hydraulic connection nipple
- Suitable for use with quick connection nipple
- No
- Type of connecting thread 1
- Female
- Type of connecting thread 2
- Male
- Maximum pressure (MPa)
- 100 MPa
- Connection type
- Straight
- Material
- Chromium molybdenum steel, hardened and tempered
- Colour
- Metallic
- Country of Manufacturing (COM code)
- 16 - Netherlands
- Product net weight
- 0.012 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27112908
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8412.29
Cross References
- Enerpac 1077456100
- Simatec 1077456100
- Equivalent: 1077456100 (Enerpac)
- Equivalent: 1077456100 (Simatec)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
