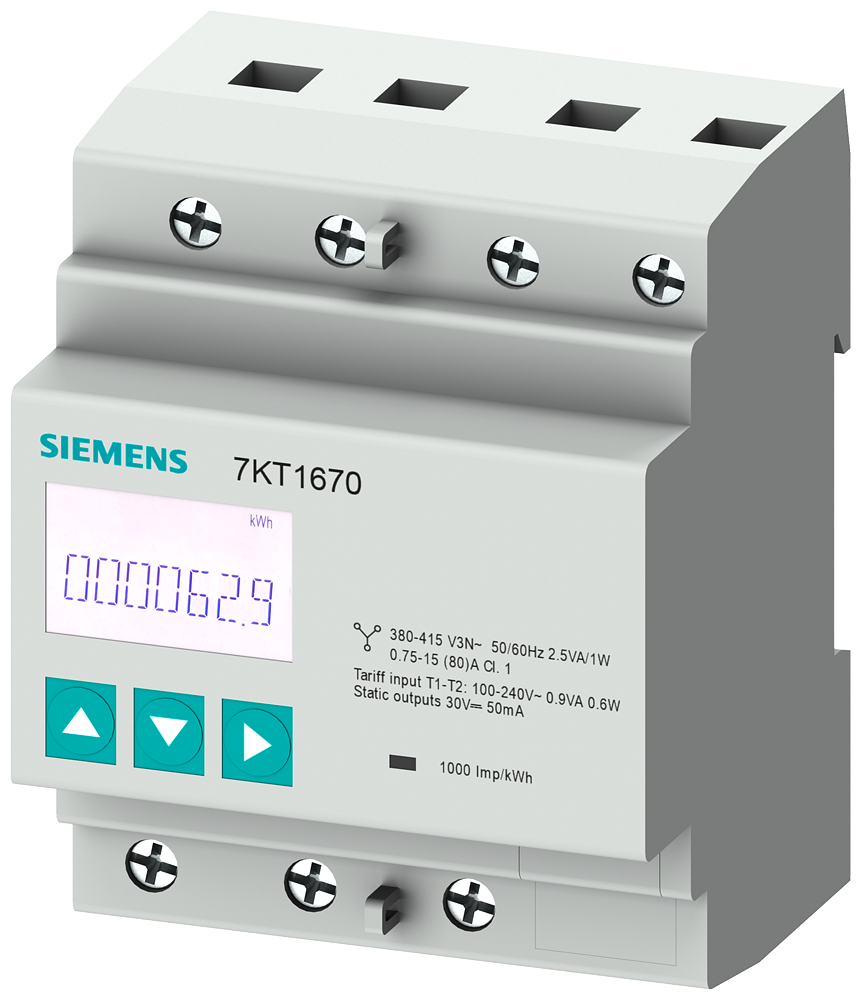

Siemens SENTRON,measuring instrument 7KT1670
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 7KT1670 SENTRON,measuring instrument,7KM PAC1600,LCD,L-L: 400V,L-N: 230V,80A,standard mounting rail,3-phase,S0,.
Technical Specifications
- Manufacturer part number (MPN)
- 7KT1670
- EAN / GTIN
- 4001869563640
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Direct measurement
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Frequency
- 45–65 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 10
- Type of meter
- Electronic
- Degree of protection (IP)
- IP40
- Type of interface
- None
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Escapement mechanism
- Yes
- Calibrated
- No
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 1–1000 Imp/kWh (kvarh)
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 187–264 V
- Nominal voltage (Un) L-L
- 323–456 V
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 4001869563640
- SAP 1200119907
- Code 81989011
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC S7 automation module 6ES7440-1CS00-0YE0
Siemens

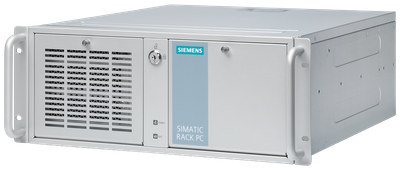

Siemens SIMATIC IPC347G (rack PC, 19", 4 U); Core I5-6500 (4C/4T, 3 6AG4012-2BA10-0AX0
Siemens

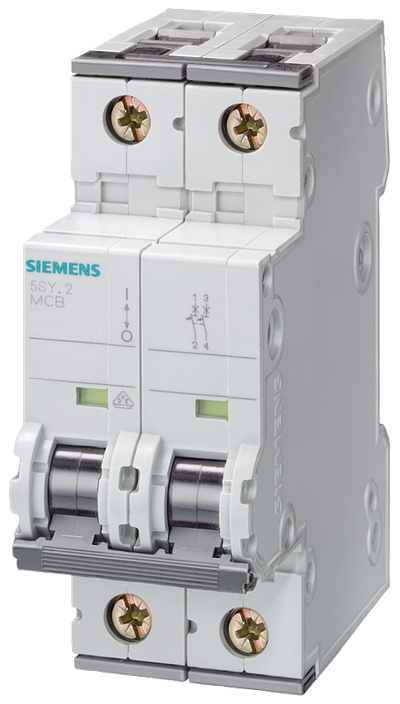

Siemens SENTRON 5SY8216-7 Miniature Circuit Breaker 2-Pole C16A 25KA
Siemens

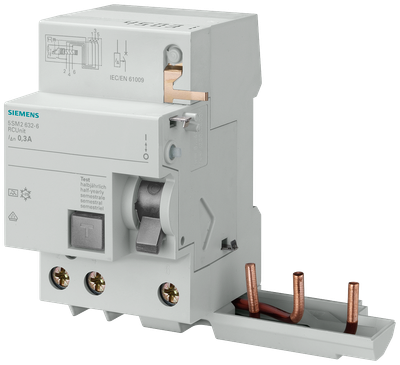

Siemens 5SM2635-6 RC Unit for 5SY Miniature Circuit Breaker — 3-Pole, Type A, in 63 A, 300 mA, 400 V AC
Siemens

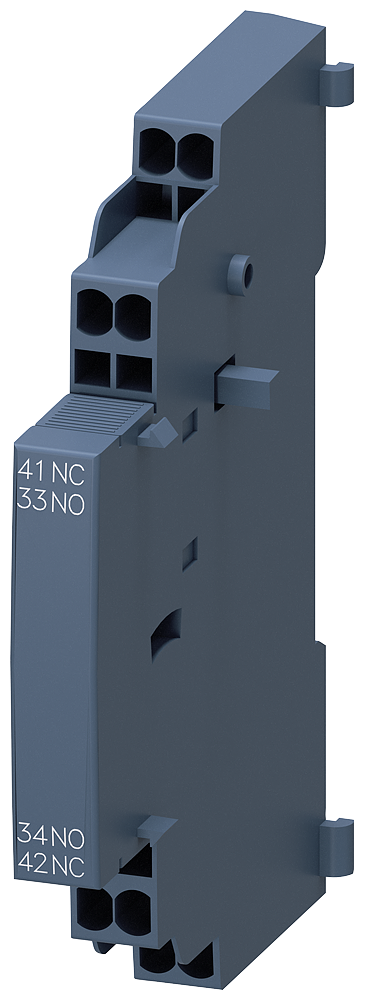

Siemens Auxiliary cover side-mounted 1NO+1NC with spring terminals
3RV2901-2A
Siemens

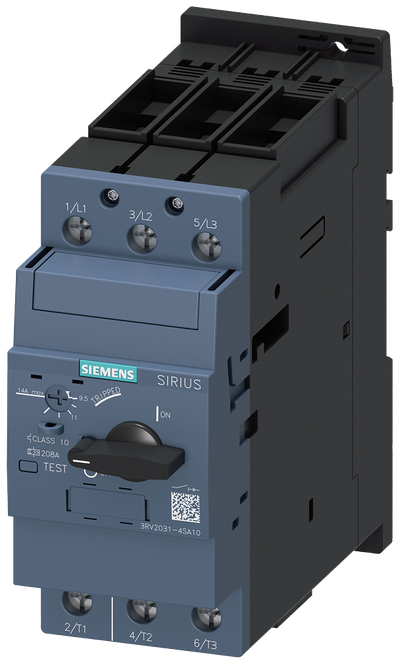

Siemens SIRIUS Motor protection circuit breaker,9 3RV2031-4SA10
Siemens

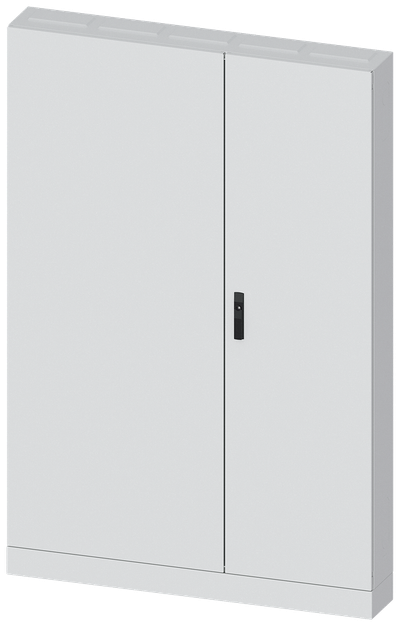

Siemens Alpha 630 Din, Floor Cabinet Including Plinth Delivery Form Flat Pack, Colour Ral 7035, IP43 8GK1312-8KK52
Siemens

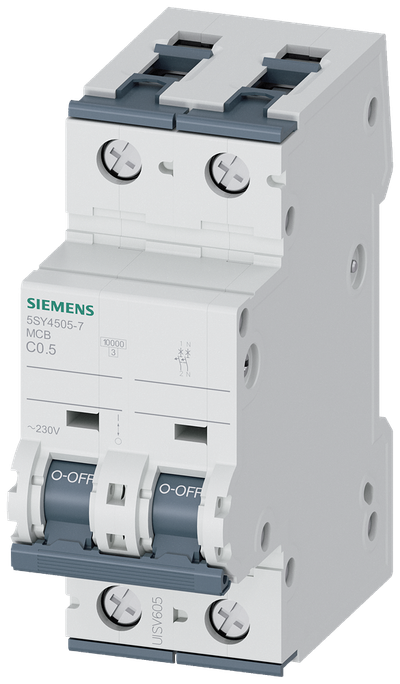

Siemens SENTRON 5SY4505-7 Miniature Circuit Breaker 1+N-Pole C0.5A 10KA
