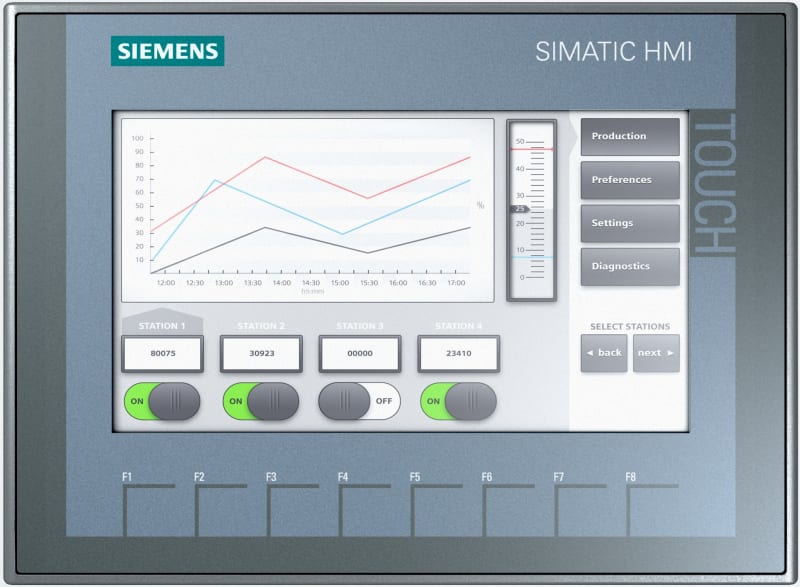

Siemens Panel Basic 2ND KTP700 PN Touch and taster 7"

Siemens 6AV2123-2GB03-0AX0 KTP700 Basic HMI. Siemens genuine. Siemens hmis & displays for industrial and marine service. Fits listed models.

Approval

CE, UL, cUL, CSA, FM, ATEX II 3G (Ex nA variants), IECEx, RCM, EAC, KC, CCC, DNV, ABS, LR, BV, ClassNK

Standards

IECEx, IEC 60529, IEC 61131-2

Approvals

DNV, ABS, BV, LR

HS code

8537.10

Product type designation

KTP700 Basic color PN

Design of display

TFT widescreen display, LED backlighting

Screen diagonal

7 in

Display width

154.1 mm

Display height

85.9 mm

Number of colors

65 536

Horizontal image resolution

800 pixel

Vertical image resolution

480 pixel

MTBF backlighting (at 25 °C)

20 000 h

Backlight dimmable

Yes

Number of function keys

8

Design as touch screen

Yes; Analog-resistive

Numeric keyboard

Yes; Onscreen keyboard

Type of supply voltage

DC

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

230 mA

Active power input, typ.

5.5 W

Processor type

ARM

Memory available for user data

10 Mbyte

Number of industrial Ethernet interfaces

1

Number of USB interfaces

1; Up to 16 GB

PROFINET

Yes

EtherNet/IP

Yes

MODBUS

Yes; Modicon (MODBUS TCP/IP)

IP (at the front)

IP65

IP (rear)

IP20

Enclosure Type 4 at the front

Yes

Enclosure Type 4x at the front

Yes

CE mark

Yes

CULus

Yes

Marine approval (GL/ABS/BV/DNV/LRS/Class NK)

Yes

Ambient temperature during operation (vertical installation)

0 ... 50 °C

Ambient temperature during storage/transportation

-20 ... +60 °C

Relative humidity operation, max.

90 %; no condensation

Configuration software

WinCC Basic (TIA Portal) and higher

Number of online/runtime languages

10

Number of variables per device

800

Number of configurable images

250

Number of recipes

50

Enclosure material (front)

Plastic

Width of the housing front

214 mm

Height of housing front

158 mm

Mounting cutout, width

198 mm

Mounting cutout, height

142 mm

Mounting depth

39 mm

Weight (without packaging)

780 g

EAN

4034106029210

Classification / Approval

CE, UL, cUL, CSA, FM, ATEX II 3G (Ex nA variants), IECEx, RCM, EAC, KC, CCC, DNV, ABS, LR, BV, ClassNK

HS Code

8537.10
