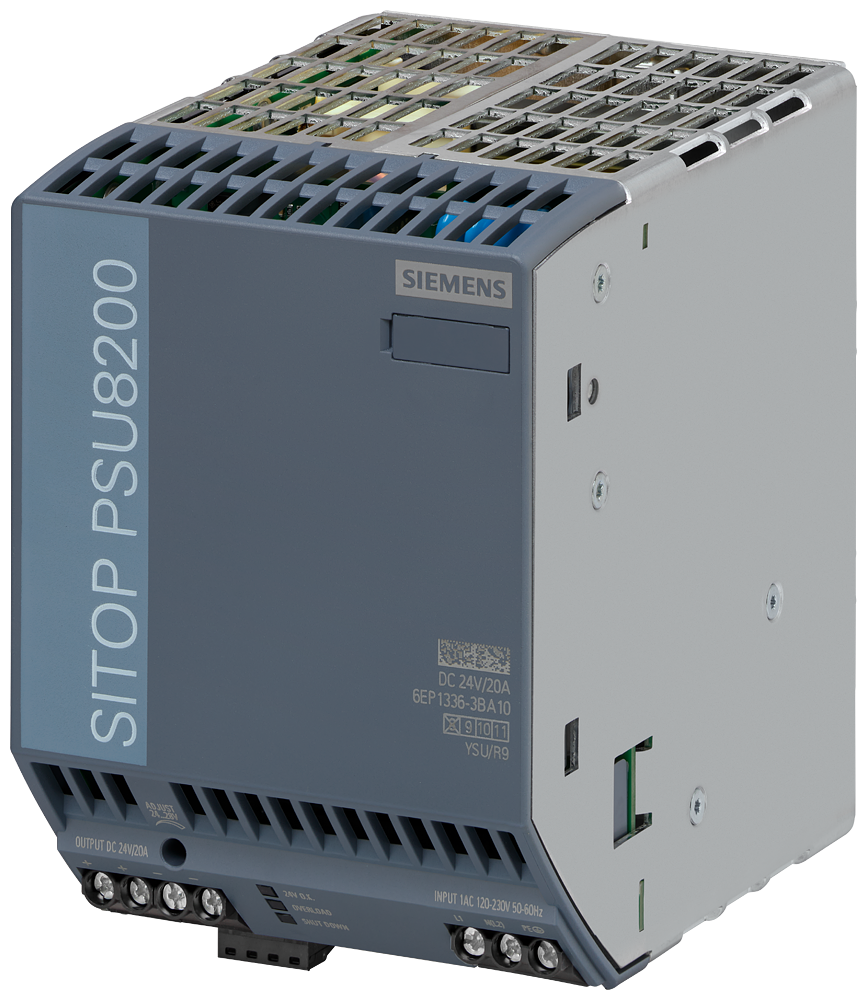

Siemens SITOP DC power supply 6EP1336-3BA10

Siemens 6EP1336-3BA10 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP Modular PSU100M Regulated power supply, Input: 120-230 V AC, Output: 24 V DC/20 A.

Manufacturer part number (MPN)

6EP1336-3BA10 EAN / GTIN: 4025515152583 Sales unit: pcs Type of the power supply network: 1-phase and 2-phase AC or DC Supply voltage at AC — minimum rated value: 120 V Supply voltage at AC — maximum rated value: 230 V Supply voltage at AC — initial value: 85 V Supply voltage at AC — full-scale value: 275 V Supply voltage at AC: temperature derating necessary at Uin<100 V AC or DC at 50 °C; additional derating at Uin<100 V: Uin=95 V Pa max=460 W, Uin=90 V Pa max=440 W, Uin=85 V Pa max=420 W Supply voltage at DC: 110 ... 220 V Input voltage at DC: 88 ... 350 V Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 230 V Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 4.6 A Input current — at rated input voltage 230 V: 2.5 A Current limitation of inrush current at 25 °C maximum: 20 A I2t value maximum: 5 A²·s Fuse protection type in the fe

HS Code

8504.40

• EAN 4025515152583
• SAP 1000350933
• Code 81127672
