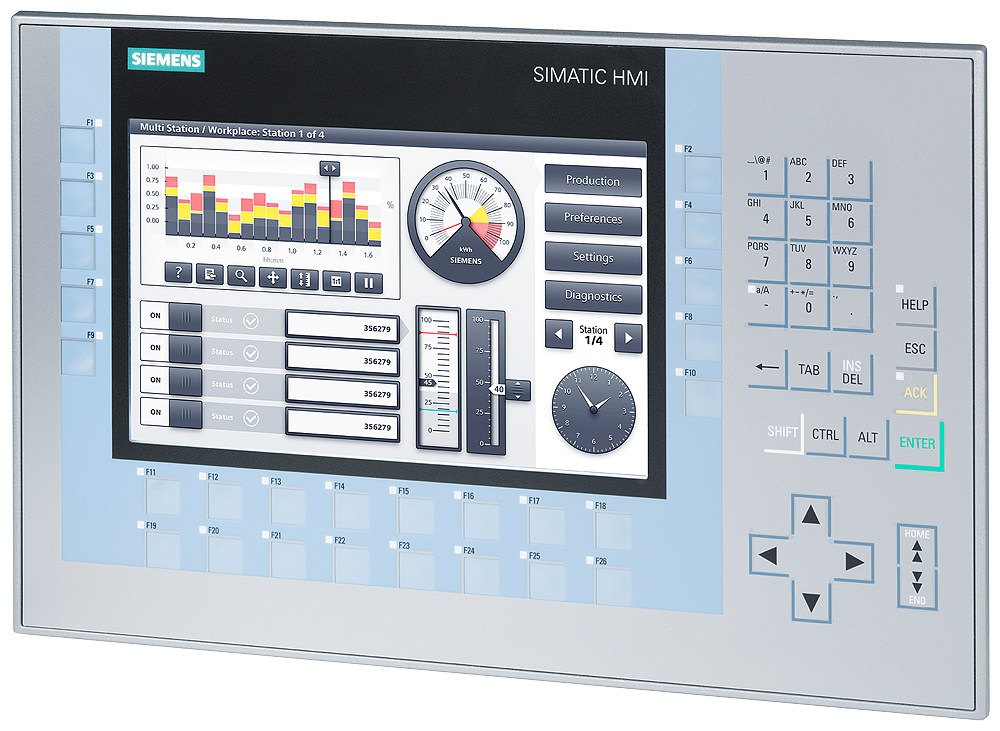

Siemens Panel Comfort KP900 9" Key

Siemens 6AV2124-1JC01-0AX0 Panel Comfort KP900 9" Key.

Manufacturer part number (MPN)

6AV2124-1JC01-0AX0

EAN / GTIN

4025515079040

Sales unit

pcs

Product type designation

KP900 Comfort

Display width

195 mm

Display height

117 mm

Number of colors

16 777 216

Backlighting — MTBF backlighting (at 25 °C)

80 000 h

Backlighting — Backlight dimmable

Yes; 0-100 %

Function keys — Number of function keys

26

Function keys — Number of function keys with LEDs

26

DP direct LEDs (LEDs as S7 output I/O) — F1...Fx

26

Direct keys (keys as S7 input I/O) — F1...Fx

26

Direct keys (keys as S7 input I/O) — Direct keys (touch buttons as S7 input I/O)

0

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.75 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

18 W

Memory available for user data

12 Mbyte

Number of industrial Ethernet interfaces

1; 2 ports (switch)

Number of RS 485 interfaces

1; RS 422 / 485 combined

Number of RS 422 interfaces

1

Number of RS 232 interfaces

0

Number of USB interfaces

2; USB 2.0

Number of USB interfaces — USB Mini B

1; 5-pole

Number of 20 mA interfaces (TTY)

0

Number of parallel interfaces

0

Number of SD card slots

2

Industrial Ethernet — Number of ports of the integrated switch

2

Operation (vertical installation) — For vertical installation, min.

0 °C

Operation (vertical installation) — For vertical installation, max.

50 °C; (55 °C, see entry ID: 64847814)

Operation (max. tilt angle) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle) — At maximum tilt angle, max.

40 °C

Operation (vertical installation, portrait format) — For vertical installation, min.

0 °C

Operation (vertical installation, portrait format) — For vertical installation, max.

40 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, max.

35 °C

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %; no condensation

Online languages — Number of online/runtime languages

32

Help system — Number of characters per info text

70

Message system — Number of alarm classes

32

Message system — Number of bit messages

4 000

Message system — Number of analog messages

200

Message system — Number of characters per message

80

Message system — Number of process values per message

8

Message buffer — Number of entries

1 024

Recipe management — Number of recipes

300

Recipe management — Size of internal recipe memory

2 Mbyte

Variables — Number of variables per device

2 048

Variables — Number of variables per screen

400

Images — Number of configurable images

500

Image objects — Number of objects per image

400

Complex image objects — Number of complex objects per screen

20

Lists — Number of text lists per project

500

Width of the housing front

361.2 mm

Height of housing front

230 mm

Mounting cutout, width

338 mm

Mounting cutout, height

206 mm

Mounting depth

63 mm

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

2

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

2

Type of display

TFT

Number of colours of the display

16777216

Screen diagonal

9 inch

Number of pixels, horizontal

800

Number of pixels, vertical

480

Usable project memory/user memory

12000 kByte

Number of function buttons, programmable

26

Number of buttons with LED

26

Number of system buttons

28

Touch technology

None

With touch screen

No

Number of password levels

50

Number of online languages

32

Degree of protection (IP), front side

IP65

Width of the front

362 mm

Height of the front

230 mm

Built-in depth

63 mm

Country of origin

Germany

HS Code

8537.10
