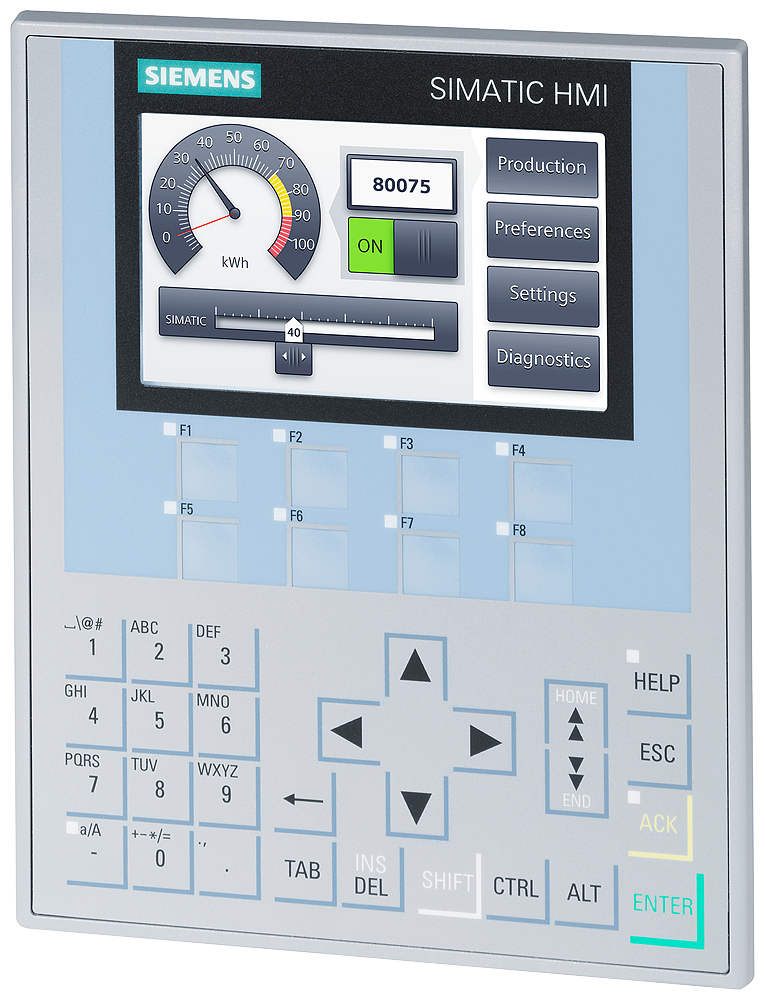

Siemens Panel Comfort KP400 4" Key

Siemens 6AV2124-1DC01-0AX0 Panel Comfort KP400 4" Key.

Manufacturer part number (MPN)

6AV2124-1DC01-0AX0

EAN / GTIN

4025515078982

Sales unit

pcs

Product type designation

KP400 Comfort

Display width

95 mm

Display height

53.8 mm

Number of colors

16 777 216

Backlighting — MTBF backlighting (at 25 °C)

80 000 h

Backlighting — Backlight dimmable

Yes; 0-100 %

Function keys — Number of function keys

8

Function keys — Number of function keys with LEDs

8

DP direct LEDs (LEDs as S7 output I/O) — F1...Fx

8

Direct keys (keys as S7 input I/O) — F1...Fx

8

Direct keys (keys as S7 input I/O) — Direct keys (touch buttons as S7 input I/O)

0

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.13 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

3.1 W

Memory available for user data

4 Mbyte

Number of industrial Ethernet interfaces

1

Number of RS 485 interfaces

1; RS 422 / 485 combined

Number of RS 422 interfaces

1

Number of RS 232 interfaces

0

Number of USB interfaces

1; USB 2.0

Number of USB interfaces — USB Mini B

1; 5-pole

Number of 20 mA interfaces (TTY)

0

Number of parallel interfaces

0

Number of SD card slots

2

Industrial Ethernet — Number of ports of the integrated switch

1; No switch integrated

Operation (vertical installation) — For vertical installation, min.

0 °C

Operation (vertical installation) — For vertical installation, max.

50 °C

Operation (max. tilt angle) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle) — At maximum tilt angle, max.

40 °C

Operation (vertical installation, portrait format) — For vertical installation, min.

0 °C

Operation (vertical installation, portrait format) — For vertical installation, max.

40 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, min.

0 °C

Operation (max. tilt angle, portrait format) — At maximum tilt angle, max.

35 °C

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %; no condensation

Online languages — Number of online/runtime languages

32

Help system — Number of characters per info text

70

Message system — Number of alarm classes

32

Message system — Number of bit messages

2 000

Message system — Number of analog messages

50

Message system — Number of characters per message

80

Message system — Number of process values per message

8

Message buffer — Number of entries

256

Recipe management — Number of recipes

100

Recipe management — Size of internal recipe memory

512 kbyte

Variables — Number of variables per device

1 024

Variables — Number of variables per screen

50

Images — Number of configurable images

500

Image objects — Number of objects per image

50

Complex image objects — Number of complex objects per screen

5

Lists — Number of text lists per project

300

Width of the housing front

152 mm

Height of housing front

188 mm

Mounting cutout, width

136 mm

Mounting cutout, height

172 mm

Mounting depth

48 mm

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Type of display

TFT

Number of colours of the display

16777216

Screen diagonal

4.3 inch

Number of pixels, horizontal

480

Number of pixels, vertical

272

Usable project memory/user memory

4000 kByte

Number of function buttons, programmable

8

Number of buttons with LED

8

Number of system buttons

28

Touch technology

None

With touch screen

No

Number of password levels

50

Number of online languages

32

Degree of protection (IP), front side

IP65

Width of the front

152 mm

Height of the front

188 mm

Built-in depth

49 mm

Country of origin

Germany

HS Code

8537.10
