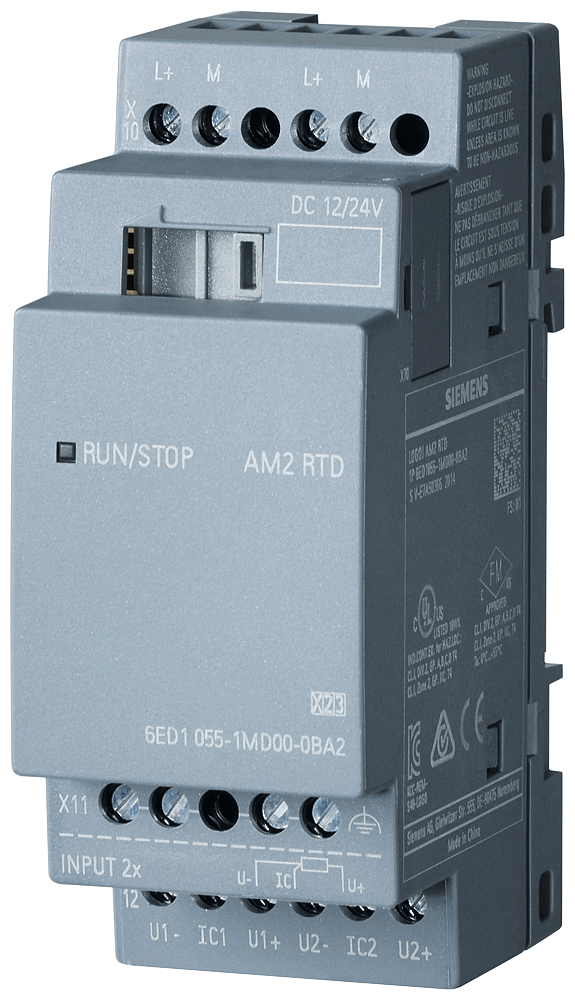

Siemens LOGO! AM2 RTD expansion module, PS: 12/24 V DC, 2AI-50...+200°/C PT100/1000 for LOGO! 8
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ED1055-1MD00-0BA2 — LOGO! logic module. Compact micro-controller for small automation and building-services tasks. AM2 RTD Expansion Module, PU: DC 12/24V, 2AI, -50. +200 'C PT100/1000.
Technical Specifications
- Manufacturer part number (MPN)
- 6ED1055-1MD00-0BA2
- EAN / GTIN
- 4034106029524
- Sales unit
- pcs
- Mounting
- on 35 mm DIN rail, 2 spacing units wide
- Rated value (DC) — 12 V DC
- Yes; 10.8 V DC to 28.8 V DC
- Rated value (DC) — 24 V DC
- Yes; 10.8 V DC to 28.8 V DC
- Current consumption, typ.
- 30 mA
- Number of analog inputs
- 2; 2 or 3 wire connection
- Input ranges — Voltage
- No
- Input ranges — Current
- No
- Input ranges — Resistance thermometer
- Yes; For PT100/PT1000 sensors
- Input ranges (rated values), voltages — 0 to +10 V
- No
- Input ranges (rated values), currents — 0 to 20 mA
- No
- Input ranges (rated values), resistance thermometer — Pt 100
- Yes
- Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas
- Yes
- IP degree of protection
- IP20
- CE mark
- Yes
- CSA approval
- Yes
- UL approval
- Yes
- FM approval
- Yes
- Developed in accordance with IEC 61131
- Yes
- Marine approval
- Yes
- Ambient temperature during operation — min.
- -20 °C; No condensation
- Ambient temperature during operation — max.
- 55 °C
- Dimensions — Width
- 35.5 mm
- Dimensions — Height
- 90 mm
- Dimensions — Depth
- 58 mm
- Number of analogue inputs
- 2
- Analogue outputs configurable
- No
- Resolution of the analogue inputs
- 10 Bit
- Output, current
- No
- Output, voltage
- No
- Output signal configurable
- No
- Type of electric connection
- Screw connection
- Performance level according to EN ISO 13849-1
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 35.5 mm
- Height
- 90 mm
- Depth
- 58 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4034106029524
- SAP 1000635608
- Code 8155856
