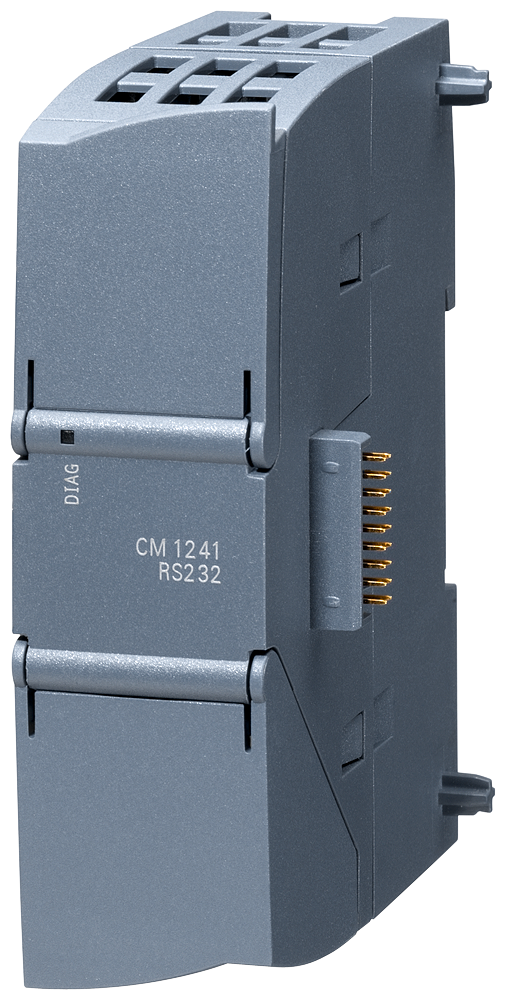

Siemens SIMATIC S7 automation module 6ES7241-1AH32-0XB0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ES7241-1AH32-0XB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. CM 1241, RS232.
Technical Specifications
- Manufacturer part number (MPN)
- 6ES7241-1AH32-0XB0
- EAN / GTIN
- 6940408102095
- Sales unit
- pcs
- Supporting protocol for EtherCAT
- No
- Number of HW-interfaces RS-232
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Redundancy
- No
- Type of data transmission
- Serial
- Transmission rate
- 9.6 kBit/s
- With potential separation
- Yes
- Suitable for safety functions
- No
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
- Explosion safety category for dust
- None
- Width
- 30 mm
- Height
- 100 mm
- Depth
- 75 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 6940408102095
- SAP 1000532703
- Code 81025836
Product Documentation
More from Siemens
Siemens
Siemens Fuse Base 3P+N, 100A, for fuses 22X58MM, DIN rail mounting 3NW7261
Siemens
Siemens SENTRON 3VA9267-0HC15 — Motor operating mechanism (stored-energy), 24 V DC, 3VA20 / 3VA21 / 3VA22
Siemens
Siemens SENTRON 5SY4663-7 Miniature Circuit Breaker 3+N-Pole C63A 10KA
Siemens
Siemens Alpha 400 Din, Panel board Surface-mounted mounting, Delivery Form Flat Pack, Ap-Cabinet, Colour Ral 9016 8GK1102-6KK52
Siemens

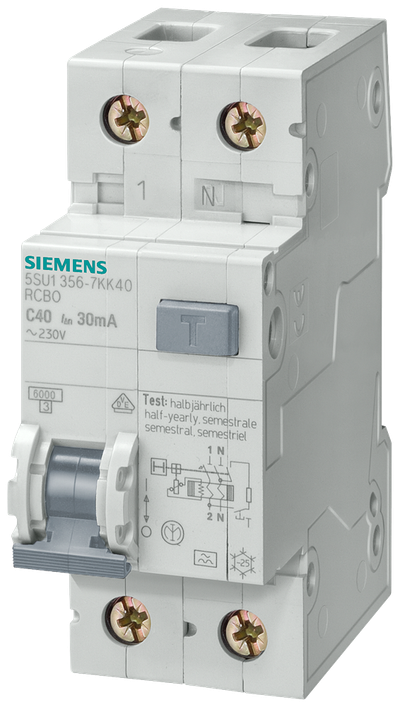

Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 30MA,6KA, 1+N-Pole B 10A
5SU1356-6KK10
Siemens

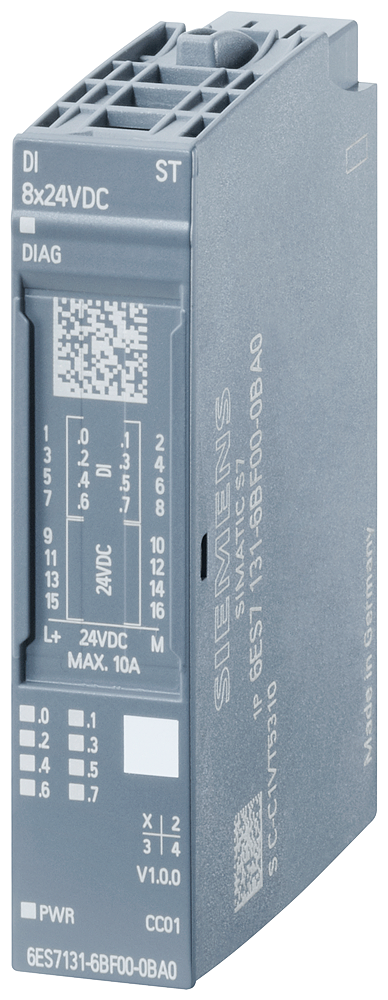

Siemens SIMATIC ET 200SP, digital input module, DI 8X 24V DC standard, Input type 3 (IEC 61131), sink input
6ES7131-6BF01-2BA0
Siemens

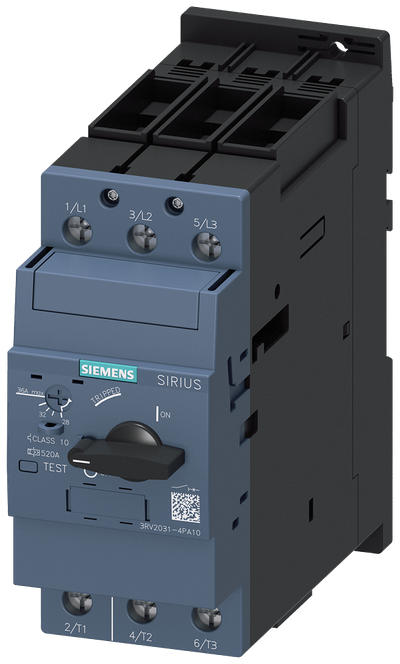

Siemens SIRIUS Motor protection circuit breaker,28 3RV2031-4PA10
