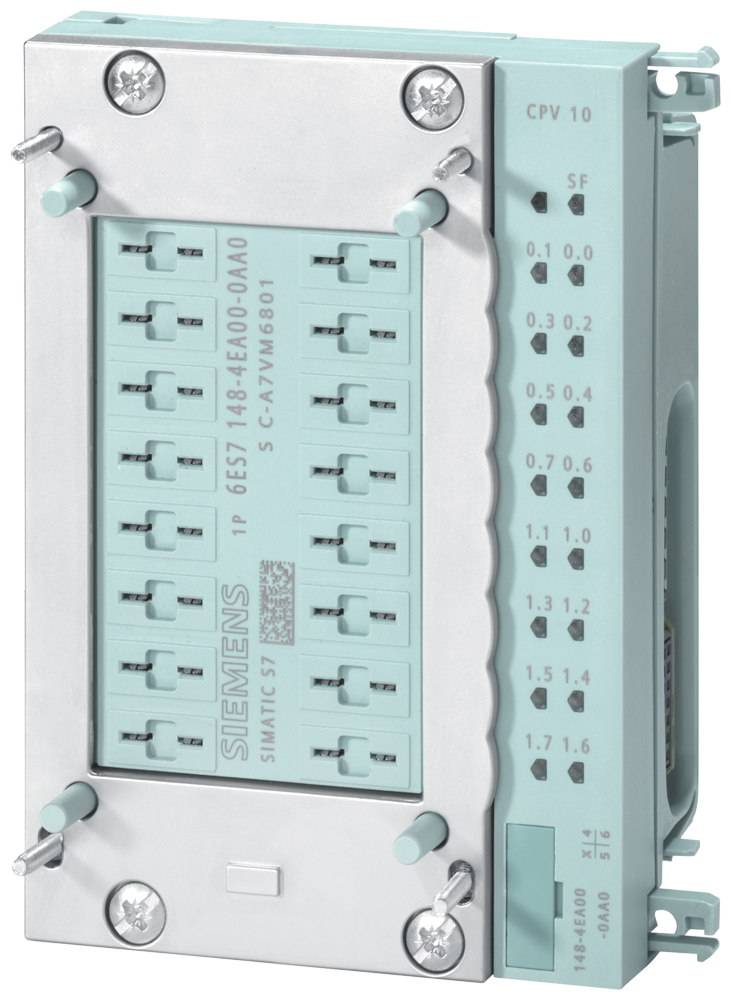

Siemens SIMATIC S7 automation module 6ES7148-4EA00-0AA0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ES7148-4EA00-0AA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET200PRO, 16DO,PNEUMATIC INTERFACE CPV10.
Technical Specifications
- Manufacturer part number (MPN)
- 6ES7148-4EA00-0AA0
- EAN / GTIN
- 4025515074403
- Sales unit
- pcs
- Operating pressure
- 3–8 hPa
- Supporting protocol for EtherCAT
- No
- Voltage type (supply voltage)
- DC
- Number of digital outputs
- 16
- Number of connectable valves
- 16
- Permitted working pressure
- 3000–8000 hPa
- Nominal volume flow rate
- 400 l/min
- Valve switching time from 0 to 1
- 17 ms
- Valve switching time from 1 to 0
- 25 ms
- Degree of protection (IP)
- IP65/IP67
- SIL according to IEC 61508
- 2
- Performance level according to EN ISO 13849-1
- Level d
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 90 mm
- Height
- 130 mm
- Depth
- 47 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4025515074403
- SAP 1000005596
- Code 830949
Product Documentation
