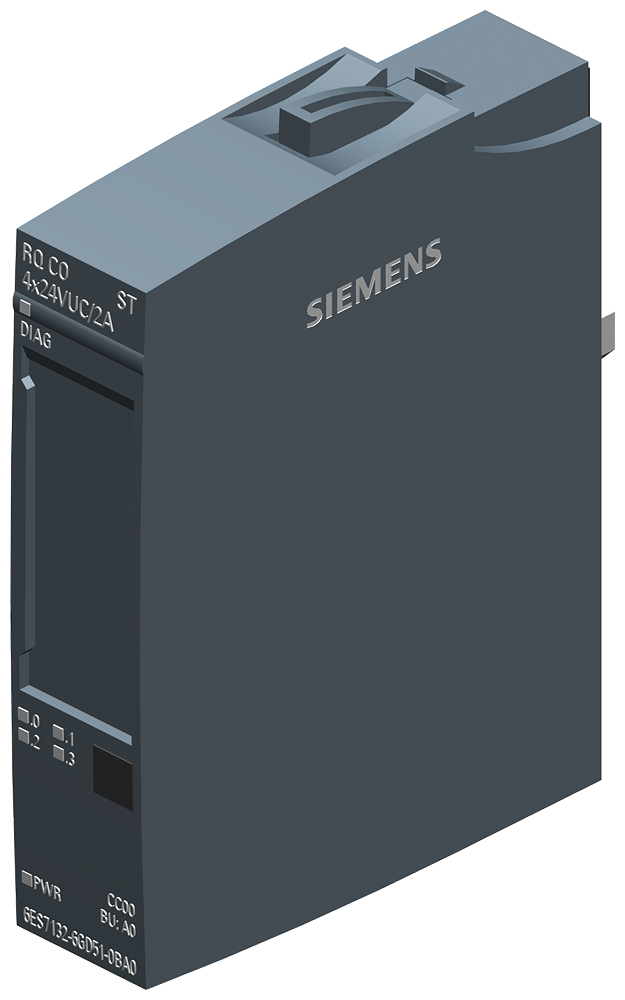

Siemens SIMATIC ET 200SP, Signal relay module, RQ CO 4X 24V DC/2A ST, 4 changeover contacts, isolated contacts

Siemens 6ES7132-6GD51-0BA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Signal relay, change over, RQ 4X24VDC/2A CO ST.

Manufacturer part number (MPN)

6ES7132-6GD51-0BA0

EAN / GTIN

4047623408697

HS code

8536.90

Sales unit

pcs

Product type designation

RQ CO 4x24VDC/2A ST

HW functional status

From FS02

Firmware version

V0.0

Firmware version — FW update possible

No

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC00

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V14

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption (rated value)

50 mA

Power loss, typ.

1.2 W

Address space per module — Inputs

+ 1 byte for QI information

Address space per module — Outputs

1 byte

Type of digital output

Relays

Number of digital outputs

4

Current-sinking

Yes

Current-sourcing

Yes

Digital outputs, parameterizable

Yes

Short-circuit protection

No

Parallel switching of two outputs — for logic links

Yes

Parallel switching of two outputs — for uprating

No

Switching frequency — with resistive load, max.

2 Hz

Total current of the outputs — Current per channel, max.

2 A

Total current of the outputs — Current per module, max.

8 A

Horizontal installation — up to 40 °C, max.

8 A

Horizontal installation — up to 50 °C, max.

6 A

Horizontal installation — up to 60 °C, max.

4 A

Vertical installation — up to 30 °C, max.

8 A

Vertical installation — up to 40 °C, max.

6 A

Vertical installation — up to 50 °C, max.

4 A

Relay outputs — Number of relay outputs

4

Relay outputs — Rated supply voltage of relay coil L+ (DC)

24 V

Relay outputs — Current consumption of relays (coil current of all relays), max.

40 mA

Relay outputs — Number of operating cycles, max.

500 000

Switching capacity of contacts — with resistive load, max.

2 A

Switching capacity of contacts — Thermal continuous current, max.

2 A

Switching capacity of contacts — Switching current, min.

1 mA; 5 V DC

Switching capacity of contacts — Rated switching voltage (DC)

24 V

Switching capacity of contacts — Rated switching voltage (AC)

24 V

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

200 m

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

2 000 m; On request: Installation altitudes greater than 2 000 m

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

30 g

HS Code

8536.90
