Siemens SITOP DC power supply 6EP3310-6SB00-0AY0

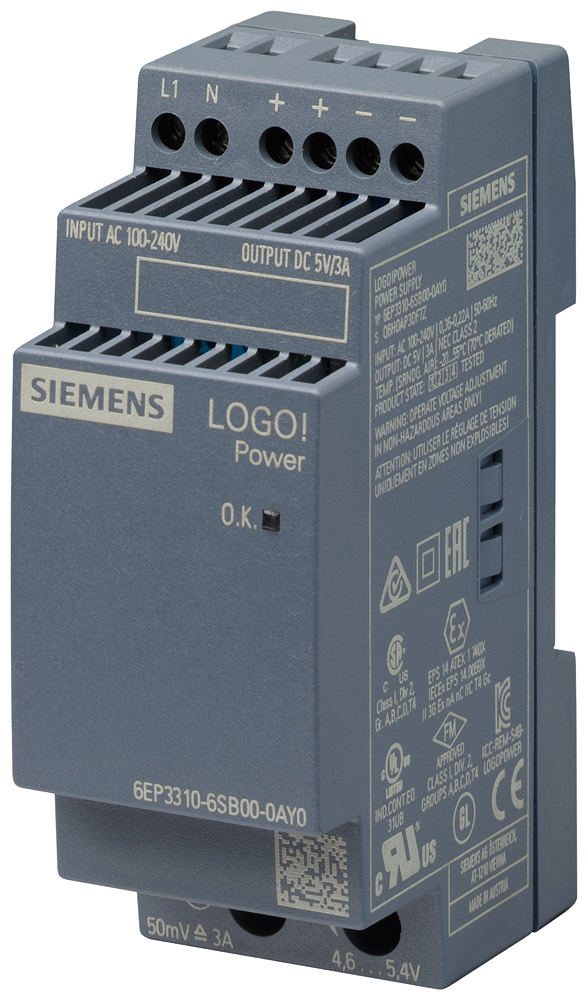

Siemens 6EP3310-6SB00-0AY0 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. LOGO!POWER input: 100-240 V AC output: 5 V / 3 A DC.

Manufacturer part number (MPN)

6EP3310-6SB00-0AY0 EAN / GTIN: 4025515154785 Sales unit: pcs Type of the power supply network: 1-phase AC or DC Supply voltage at AC — minimum rated value: 100 V Supply voltage at AC — maximum rated value: 240 V Supply voltage at AC — initial value: 85 V Supply voltage at AC — full-scale value: 264 V Input voltage at DC: 110 ... 300 V Overvoltage overload capability: 300 V AC for 1 s Buffering time for rated value of the output current in the event of power failure minimum: 40 ms Operating condition of the mains buffering: at Vin = 187 V Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 0.36 A Input current — at rated input voltage 230 V: 0.22 A Current limitation of inrush current at 25 °C maximum: 26 A I2t value maximum: 0.8 A²·s Fuse protection type in the feeder: Recommended miniature circuit breaker: from 6 A characteristic B or from 2 A characteristic C Output voltage at DC rated value: 5 V Output voltage — at output 1 at DC rated value: 5 V Adjustable output voltage: 4.6 ... 5.4 V Relative overall tolerance of the voltage: 3 % Relative control precision of the output voltage — on slow fluctuation of input voltage: 0.1 % Relative control precision of the output voltage — on slow fluctuation of ohm loading: 0.1 % Residual ripple — maximum: 100 mV Residual ripple — typical: 30 mV Voltage peak — maximum: 100 mV Voltage peak — typical: 50 mV Response delay maximum: 0.5 s Voltage increase time of the output voltage — typical: 100 ms Output current — rated value: 3 A Output current — rated range: 0 ... 3 A; +55 ... +70 °C: Derating 2%/K Supplied active power typical: 15 W Number of parallel-switched equipment resources for increasing the power: 2 Efficiency in percent: 76 % Power loss [W] — at rated output voltage for rated value of the output current typical: 4.7 W Power loss [W] — during no-load operation maximum: 0.3 W Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical: 0.2 % Relative control precision of the output voltage at load step of resistive load 10/90/10 % typical: 5 % Setting time — load step 10 to 90% typical: 1 ms Setting time — load step 90 to 10% typical: 1 ms Design of the overvoltage protection: < 60 V Protection and monitoring — typical: 3.8 A Overcurrent overload capability — when switching on: 150% Iout rated typ. 200 ms Overcurrent overload capability — in normal operation: overload capability 150% Iout rated typ. 200 ms Enduring short circuit current RMS value — maximum: 3.8 A Measuring point for output current: Yes; 50 mV =^ 3 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Protection class IP: IP20 Standard — for emitted interference: EN 55022 Class B Ambient temperature — during operation: -25 ... +70 °C; with natural convection Ambient temperature — during transport: -40 ... +85 °C Ambient temperature — during storage: -40 ... +85 °C Connection method — at input: L N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded Connection method — at output: +, -: 1 screw terminal each for 0.5 ... 2.5 mm² Width × height × depth of the enclosure: 36 × 90 × 53 mm Installation width × mounting height: 36 mm × 130 mm Required spacing — top: 20 mm Required spacing — bottom: 20 mm Mechanical data — net weight: 0.12 kg Other information: Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) Voltage type (supply voltage): AC/DC Max. output current 1: 3 A Nominal value output voltage 1: 5 V Nominal value output current 1: 3 A Output voltage stabilized: Yes Power output: 15 W Stabilized: Yes Type of electric connection: Screw connection Suitable for rail mounting: Yes Wall mounting possible: Yes Width in number of modular spacings: 2 Built-in width: 36 mm Built-in height: 130 mm Width: 36 mm Height: 90 mm Depth: 53 mm Degree of protection (IP): IP20 Suitable for wall mounting: Yes Country of origin: Germany

HS Code

8504.40

• EAN 4025515154785
• SAP 1200039546
• Code 81867109
