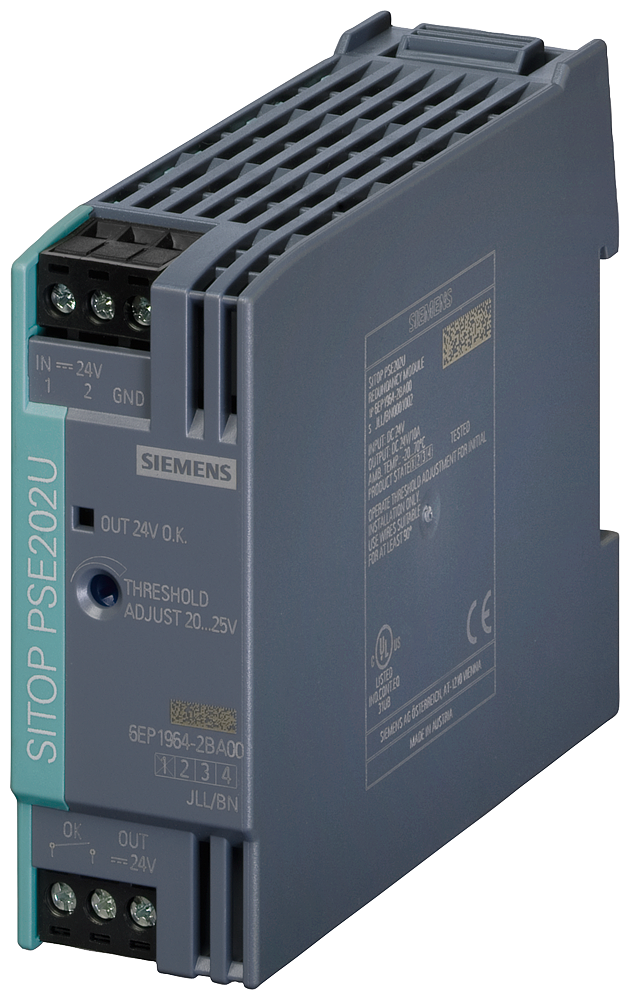

Siemens SITOP DC power supply 6EP1964-2BA00

Siemens 6EP1964-2BA00 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSE202U 10A Redundansmodul, In:/Out: 24 V DC 2x 5A.

Manufacturer part number (MPN)

6EP1964-2BA00

EAN / GTIN

4025515153054

Sales unit

pcs

Type of the power supply network

DC voltage

Supply voltage at DC

24 V

Input voltage at DC

19 ... 29 V

Voltage curve at output

Controlled, isolated DC voltage

Output voltage at DC rated value

24 V

Formula for output voltage

Vin - approx. 0.5 V

Output voltage adjustable

No

Display version for normal operation

Green LED for "both Input voltages > switching threshold"; red LED: for "at least one input voltage < switching threshold"

Type of signal at output

Isolated relay contact (contact rating 6 A/42 V AC

30 V DC)

Contact closed if both input voltages > switching threshold, setting range of switching threshold 20 V to 25 V

Output current — rated value

10 A

Output current — rated range

10 A; max. aggregate current 10 A

Efficiency in percent

97 %

Power loss [W] — at rated output voltage for rated value of the output current typical

3.6 W

Power loss [W] — during no-load operation maximum

1 W

Galvanic isolation between input and output

No

Galvanic isolation

relay contact: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

Operating resource protection class

Class III

Protection class IP

IP20

Standard — for emitted interference

EN 55022 Class B

Standard — for interference immunity

EN 61000-6-2

Ambient temperature — during operation

-20 ... +70 °C; with natural convection

Ambient temperature — during transport

-40 ... +85 °C

Ambient temperature — during storage

-40 ... +85 °C

Type of electrical connection

screw terminal

Connection method — at input

Input, output and ground: removable screw terminal, each 1 x 0.5 ... 2.5 mm² single-core/finely stranded

Connection method — for auxiliary contacts

Relay contact: 2 screw terminals for 0.5 ... 2.5 mm² single-core/finely stranded

Width × height × depth of the enclosure

30 × 80 × 100 mm

Installation width × mounting height

30 mm × 180 mm

Fastening method

Snaps onto DIN rail EN 60715 35x7.5/15

Housing can be lined up

Yes

Mechanical data — net weight

0.125 kg

Electrical accessories

Removable spring-type terminal 6EP1971-5BA00

Voltage type (supply voltage)

DC

1st secondary output voltage

24 V

Max. output current 1

10 A

Secondary voltage adjustable

No

Nominal value output voltage 1

24 V

Nominal value output current 1

10 A

Rated supply voltage DC

24 V

Output voltage stabilized

Yes

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Wall mounting possible

No

Suitable for distribution board

Yes

Built-in width

30 mm

Built-in height

180 mm

Direct mounting possible

No

Width

30 mm

Height

80 mm

Depth

100 mm

Suitable for safety functions

No

Degree of protection (IP)

IP20

Suitable for wall mounting

No

Country of origin

Austria

HS Code

8504.90
