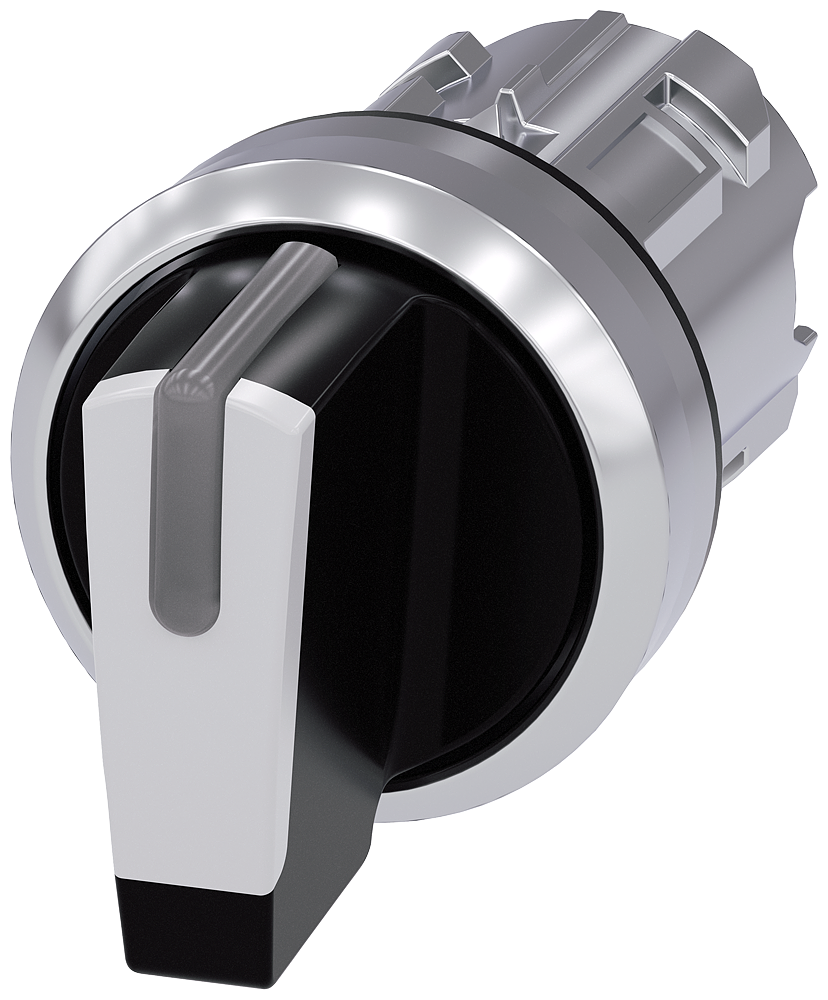

Siemens SIRIUS Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 3 switch positions I>O<II, momentary contact on the left, latching on the right, actuating angle 2X45°, 10:30H/12H/13:30H

Siemens 3SU1052-2BP60-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Selector Switch Head, 3 posisjons In>O-II 22mm round blank metal design, white.

Manufacturer part number (MPN)

3SU1052-2BP60-0AA0

EAN / GTIN

4011209970694

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Selector switches

Design of the product

Actuating/signaling element

Product type designation

3SU1

Product line

Metal, shiny, 22 mm

Number of command points

1

Design of the actuating element

Selector, short

Principle of operation of the actuating element

momentary contact/latching, 2x45° (10:30 h/12 h/13:30 h), return from left, right latching

Product extension optional — light source

Yes

Product extension optional — contact module

Yes

Color of the actuating element

white

Material of the actuating element

plastic

Shape of the actuating element

Handle

Outer diameter of the actuating element

32.3 mm

Number of switching positions

3

Actuating angle — clockwise

45°

Actuating angle — anticlockwise

45°

Product component front ring

Yes

Design of the front ring

standard

Material of the front ring

Metal, high gloss

Color of the front ring

silver

Protection class IP

IP66, IP67, IP69(IP69K)

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Operating frequency maximum

1 800 1/h

Mechanical service life (operating cycles) typical

1 000 000

Reference code according to IEC 81346-2

S

General technical data — Net Weight

49 g

Proportion of dangerous failures — with low demand rate according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920

50 %

B10 value with high demand rate according to SN 31920

300 000

Failure rate [FIT] with low demand rate per NC contact according to SN 31920

100 FIT

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

32.3 mm

Installation/ mounting/ dimensions — width

32.3 mm

Shape of the installation opening

round

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

28.8 mm

Installation width

32.3 mm

Installation depth

25.4 mm

Hole diameter

22.3 mm

Number of switch positions

3

Degree of protection (IP), front side

IP68

Width opening

32.3 mm

Height opening

28.8 mm

Material front ring

Metal

Construction type lens

Rectangular

Type of control element

Wing knob

Colour indicator light cap

White

Colour control element

White

Degree of protection (NEMA)

4X

Country of origin

Czechia

HS Code

8538.90
