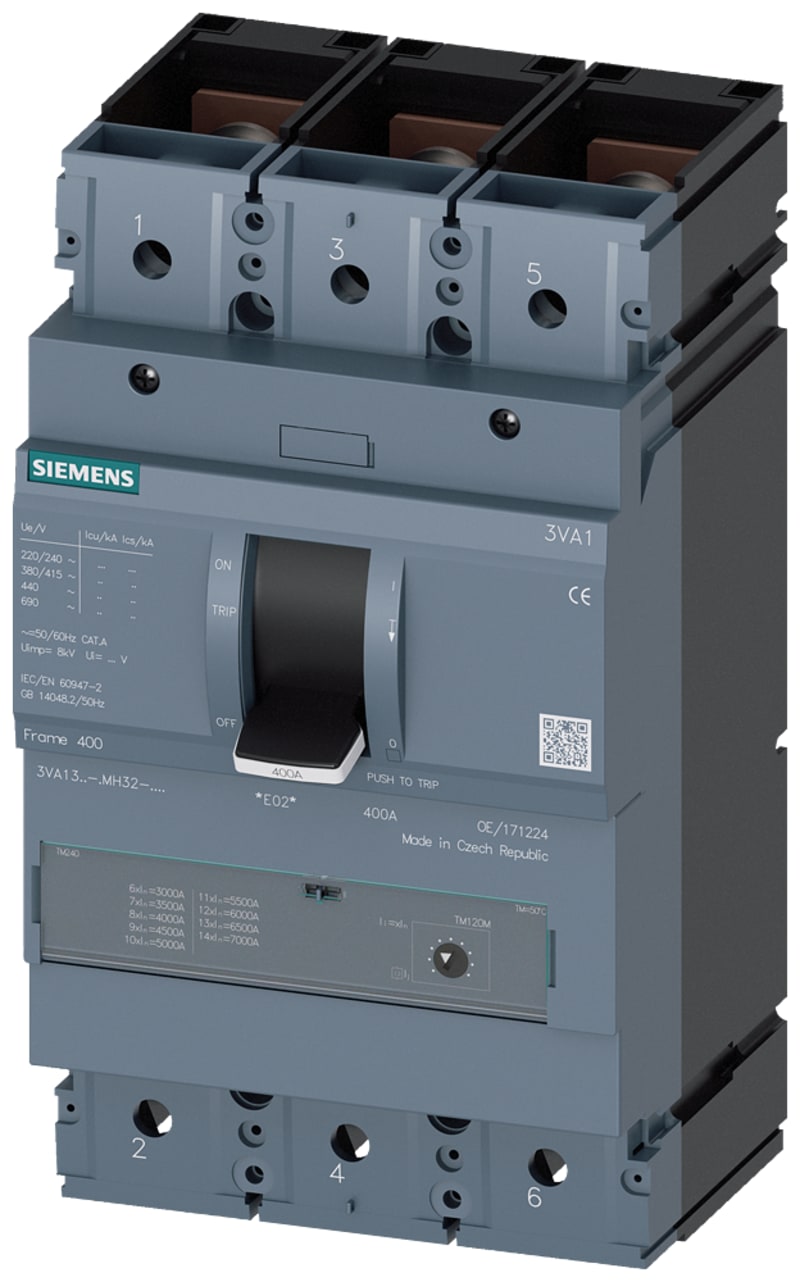

Siemens 3VA13, 3P, 250A, TM120M, with Bolt Connection, 55KA, II=2000-4000A, short-circuit protection/starter protection
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA1325-5MH320-0AA0 3VA13, 3P, 250A, TM120M, with bolt connection,55kA, II=2000-4000A, short-circuit protection/starter protection.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA1325-5MH320-0AA0
- EAN / GTIN
- 4042948827673
- Sales unit
- pcs
- Rated current
- 250 A
- Number of poles
- 3P
- Breaking capacity
- 55 kA
- Rated permanent current Iu
- 250 A
- With integrated under voltage release
- No
- Power loss
- 30 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948827673
- SAP 1200358493
- Code 82369719
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 12 A, 5.5 kW / 400 V, 3-Pole, 230 V AC, 50/60 Hz, spring-loaded terminal, electrical and mechanical interlock
3RA2317-8XB30-2AP0
Siemens
Siemens External operating mechanism ARD 30V AC, 48V DC F/ CB, RC blocks, RCBO on/of switch 5ST3058
Siemens

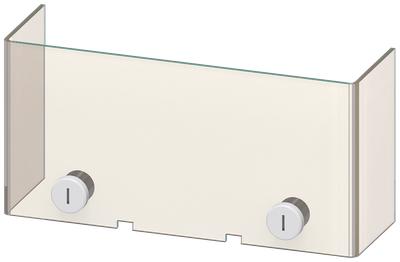

Siemens 3TX7686-0A Terminal Covers for 3UF1868-3F Current Transformer and 3TF68 Contactors
Siemens

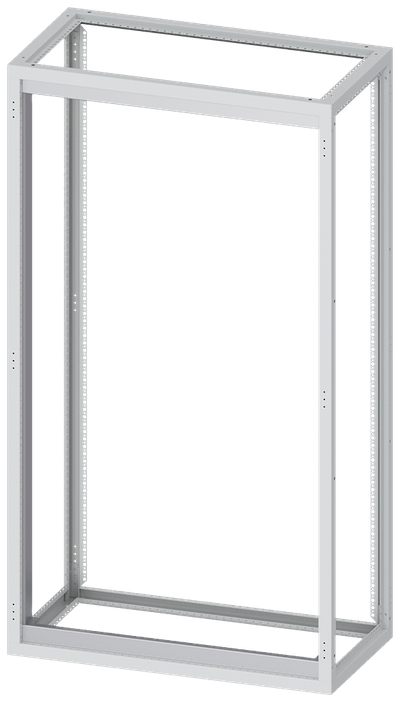

Siemens Alpha 1600 Din Adapter Set for Row Cabinet H=2000 B=1100 D=600
8GK9400-0KK47
Siemens

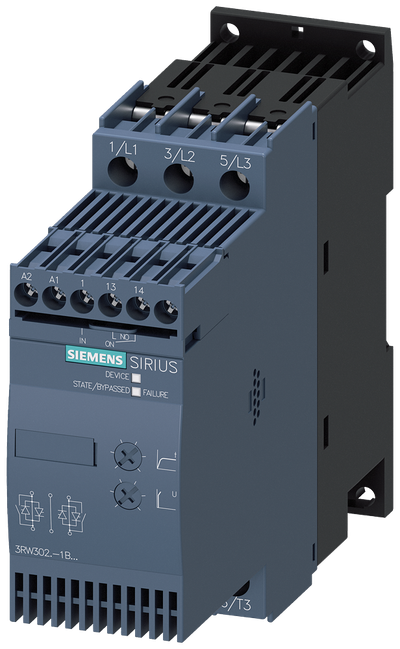

Siemens SIRIUS 3RW soft starter 3RW3026-1BB04
Siemens

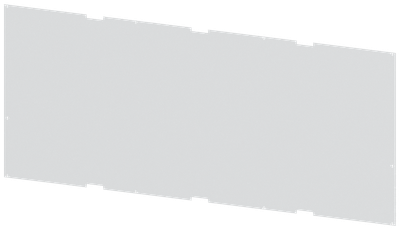

Siemens Alpha 630 Din, mounting plate Steel for mounting on Vertical montasjerailr(Traverser) H=1900 B=750
8GK9533-0KK30
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE12-0AB0
Siemens

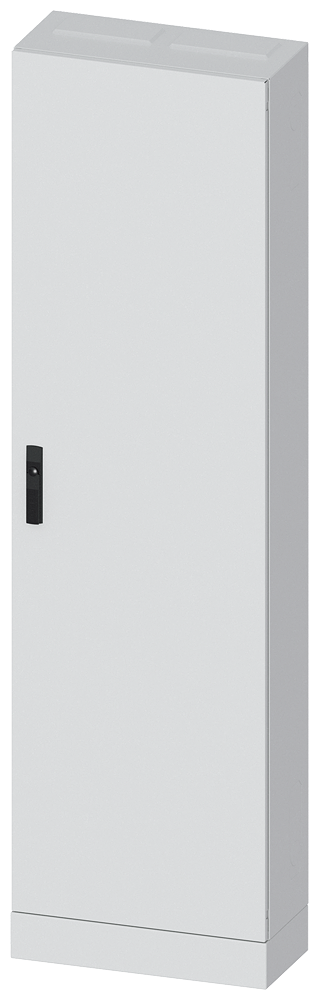

Siemens Alpha 630 Din, Floor Cabinet Including Plinth Colour Ral 7035, IP55, SK1, H=1900 B=550 D=250
