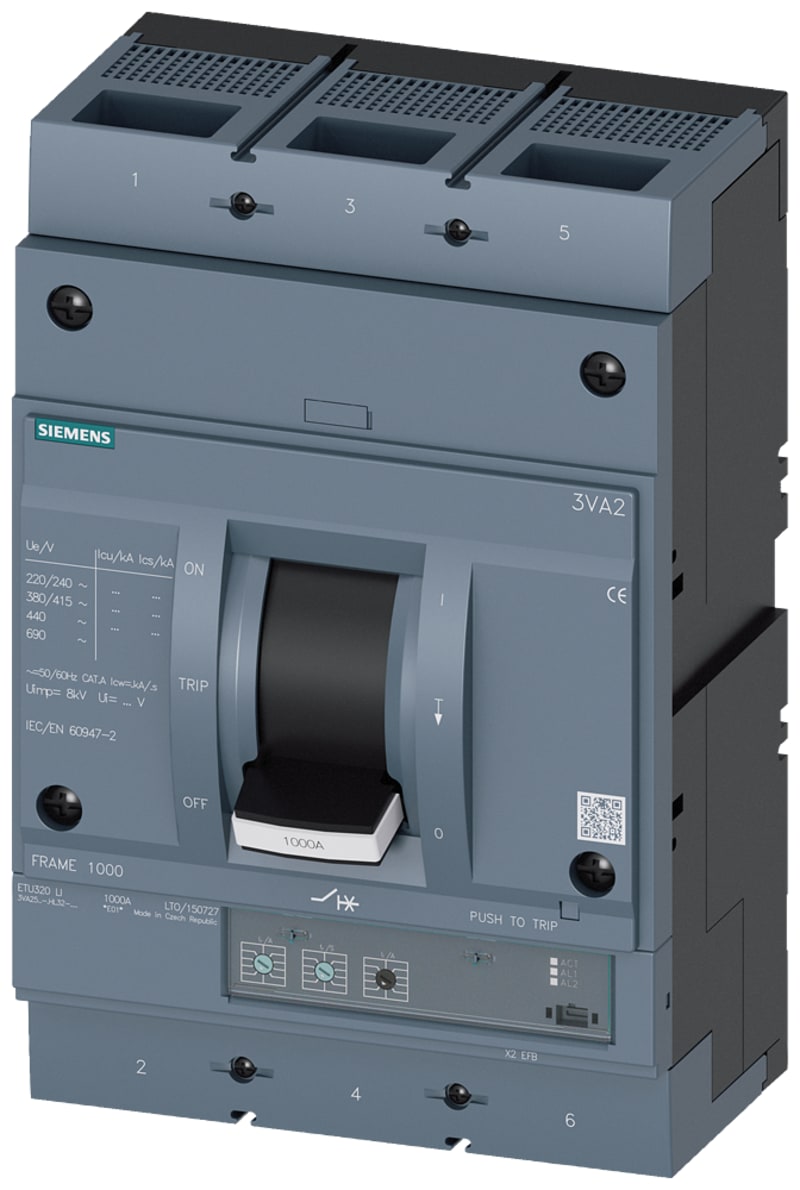

Siemens MCCB_3VA25_3P_55KA_ETU320,LI PROTECTION, IN=800A,IR=320A-800A, Tr=0,5-17 sek, II=1,5-10XIN, bolt
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2580-5HL320-0AA0 MCCB_3VA25_3P_55KA_ETU320,LI PROTECTION, IN=800A,IR=320A-800A, Tr=0,5-17 sek, II=1,5-10xIN, bolt.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2580-5HL320-0AA0
- EAN / GTIN
- 4042948836361
- Sales unit
- pcs
- Rated current
- 800 A
- Rated permanent current Iu
- 800 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Power loss
- 231 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Motor drive optional
- No
- Device construction
- Built-in device slide-in technique (withdrawable)
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948836361
- SAP 1200015740
- Code 81384964
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2011-0KA20
Siemens
Siemens SIMATIC S7 automation module 6ES7194-4CA50-0AA0
Siemens
Siemens Residual current circuit breaker with overcurrent, 2P, 13A, Type A 30MA, B-Curve, 2MW, Icn=10KA, conductor cross-section 35 mm², torque 2Nm
5SU1324-6FP13
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE46-0AB0
Siemens
Siemens Memory card CF 512 Mb
6AV6574-2AC00-2AA1
Siemens

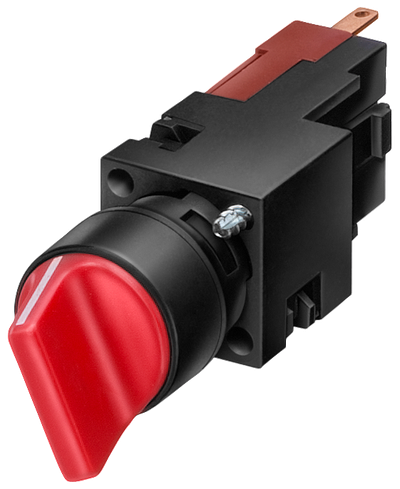

Siemens CHANGEOVER SWITCH 1-0-2 1S+1S
3SB2210-2DB01
Siemens

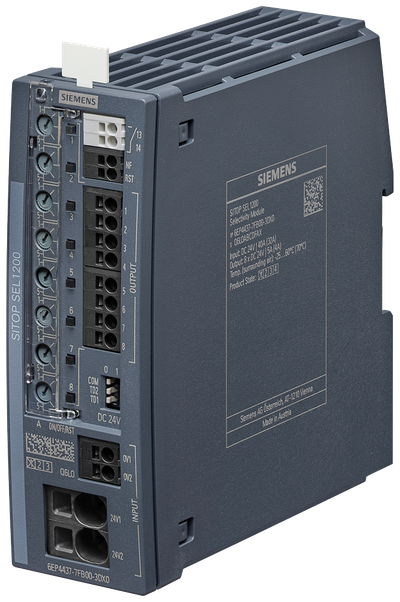

Siemens SITOP DC power supply 6EP4437-7FB00-3DX0
Siemens

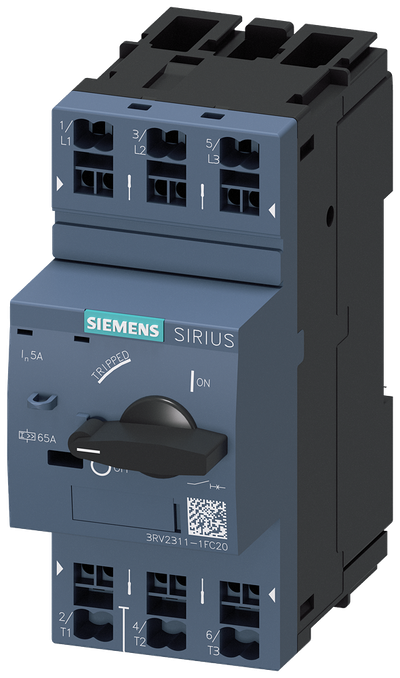

Siemens Circuit breaker 5A Spring terminals
