Siemens Panel Basic 2ND KTP1200 DP Touch and taster 12" Profibus

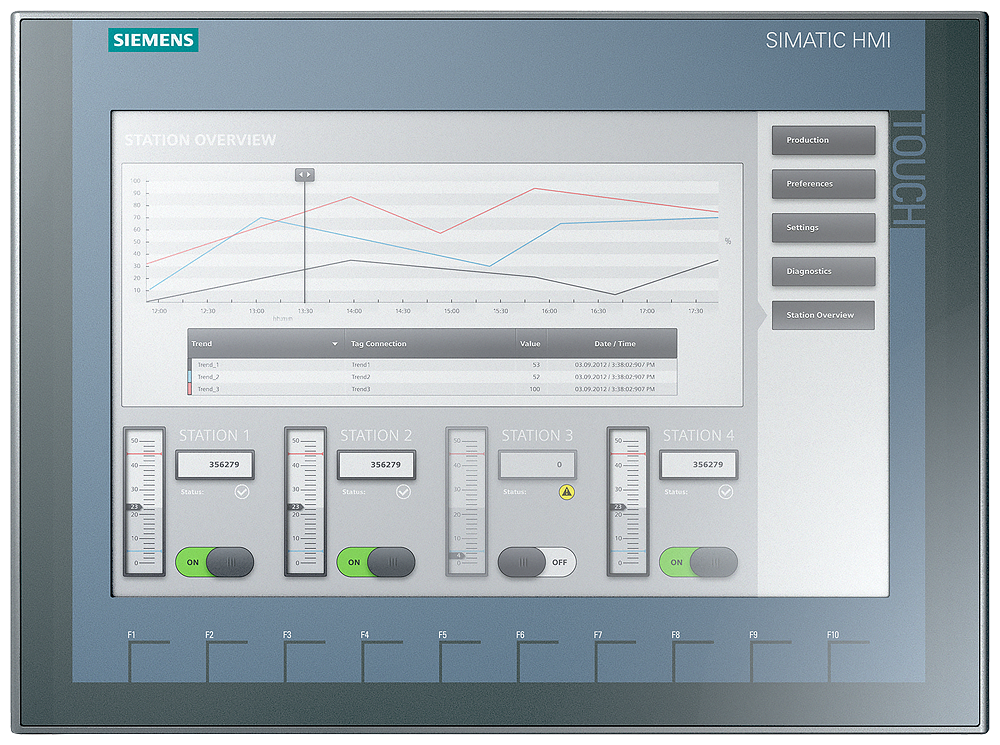

Siemens 6AV2123-2MA03-0AX0 Panel Basic 2nd KTP1200 DP Touch and taster 12" Profibus.

Manufacturer part number (MPN)

6AV2123-2MA03-0AX0

EAN / GTIN

4034106029258

Sales unit

pcs

Product type designation

KTP1200 Basic color DP

Design of display

TFT widescreen display, LED backlighting

Screen diagonal

12 in

Display width

261.1 mm

Display height

163.2 mm

Number of colors

65 536

Horizontal image resolution

1 280 pixel

Vertical image resolution

800 pixel

MTBF backlighting (at 25 °C)

20 000 h

Backlight dimmable

Yes

Number of function keys

10

Design as touch screen

Yes; Analog-resistive

Numeric/alphanumeric keyboard

Yes; Onscreen keyboard

Type of supply voltage

DC

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

550 mA

Active power input, typ.

13.2 W

Processor type

ARM

Memory available for user data

10 Mbyte

Number of RS 485 interfaces

1

Number of RS 422 interfaces

1; together with RS 485

Number of USB interfaces

1; Up to 16 GB

PROFIBUS

Yes

MPI

Yes

MODBUS

Yes; Modicon (MODBUS RTU)

Emission of radio interference acc. to EN 55011 Limit class A

Yes

IP (at the front)

IP65

IP (rear)

IP20

Enclosure Type 4/4x at the front

Yes

CE mark

Yes

CULus

Yes

RCM

Yes

KC approval

Yes

Marine approval

Germanischer Lloyd (GL), ABS, BV, DNV, Lloyds Register (LRS), Class NK

Ambient temperature during operation (vertical installation), max.

50 °C

Ambient temperature during storage/transportation

-20 ... 60 °C

Relative humidity, Operation, max.

90 %; no condensation

STEP 7 Basic/Professional (TIA Portal)

WinCC Basic/Comfort/Advanced/Professional

Yes

Number of online/runtime languages

10

Languages per project

32

Enclosure material (front)

plastic

Width of the housing front

330 mm

Height of housing front

245 mm

Mounting cutout, width

310 mm

Mounting cutout, height

221 mm

Mounting depth

54.9 mm

Weight (without packaging)

1 710 g

Power consumption

13.2 W

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Type of display

TFT

Number of colours of the display

65536

Number of pixels, horizontal

1280

Number of pixels, vertical

800

Usable project memory/user memory

10000 kByte

Number of function buttons, programmable

10

Touch technology

Resistive touch

With touch screen

Yes

Number of password levels

50

Number of online languages

10

Degree of protection (IP), front side

IP65

Width of the front

330 mm

Height of the front

245 mm

Built-in depth

60 mm

Country of origin

Germany

HS Code

8537.10

• EAN 4034106029258
• SAP 1000690141
• Code 8609870
