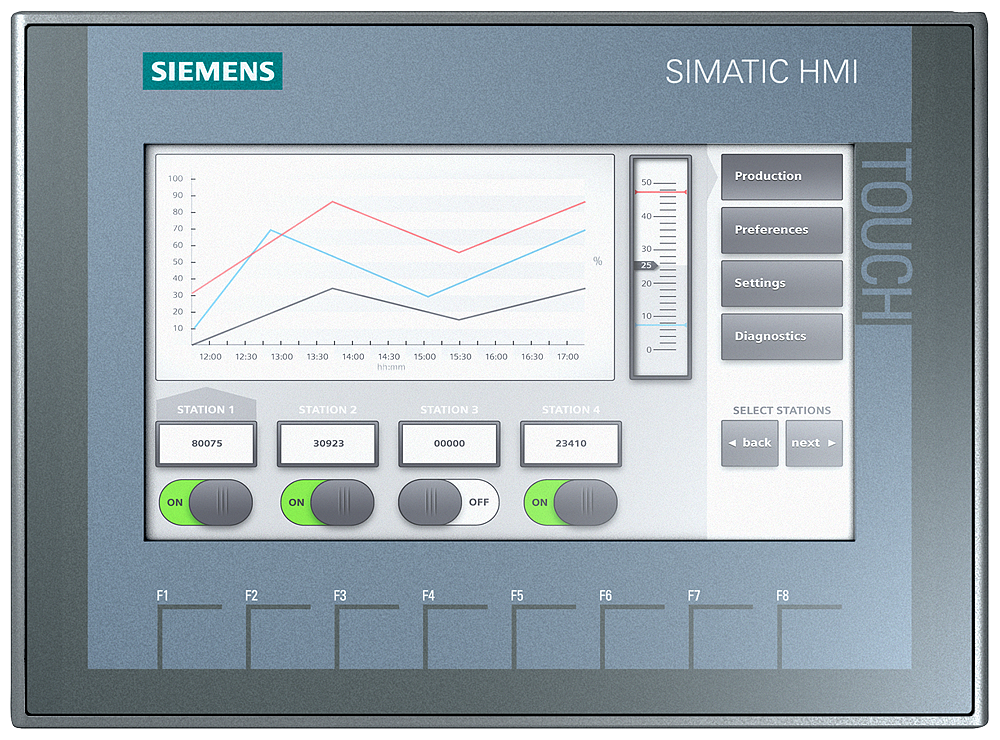

Siemens Panel Basic 2ND KTP700 DP Touch and taster 7" Profibus
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6AV2123-2GA03-0AX0 Panel Basic 2nd KTP700 DP Touch and taster 7" Profibus.
Technical Specifications
- Manufacturer part number (MPN)
- 6AV2123-2GA03-0AX0
- EAN / GTIN
- 4034106029227
- Sales unit
- pcs
- Product type designation
- KTP700 Basic color DP
- Design of display
- TFT widescreen display, LED backlighting
- Screen diagonal
- 7 in
- Display width
- 154.1 mm
- Display height
- 85.9 mm
- Number of colors
- 65 536
- Horizontal image resolution
- 800 pixel
- Vertical image resolution
- 480 pixel
- MTBF backlighting (at 25 °C)
- 20 000 h
- Backlight dimmable
- Yes
- Number of function keys
- 8
- Design as touch screen
- Yes; Analog-resistive
- Numeric keyboard
- Yes; Onscreen keyboard
- Type of supply voltage
- DC
- Rated value (DC)
- 24 V
- Permissible range, lower limit (DC)
- 19.2 V
- Permissible range, upper limit (DC)
- 28.8 V
- Current consumption (rated value)
- 230 mA
- Active power input, typ.
- 5.5 W
- Processor type
- ARM
- Memory available for user data
- 10 Mbyte
- Number of RS 485 interfaces
- 1
- Number of RS 422 interfaces
- 1; together with RS 485
- Number of USB interfaces
- 1; Up to 16 GB
- PROFIBUS
- Yes
- MPI
- Yes
- MODBUS
- Yes; Modicon (MODBUS RTU)
- IP (at the front)
- IP65
- IP (rear)
- IP20
- Enclosure Type 4 at the front
- Yes
- Enclosure Type 4x at the front
- Yes
- CE mark
- Yes
- CULus
- Yes
- Marine approval (GL/ABS/BV/DNV/LRS/Class NK)
- Yes
- Ambient temperature during operation (vertical installation)
- 0 ... 50 °C
- Ambient temperature during storage/transportation
- -20 ... +60 °C
- Relative humidity operation, max.
- 90 %; no condensation
- Configuration software
- WinCC Basic (TIA Portal) and higher
- Number of online/runtime languages
- 10
- Number of variables per device
- 800
- Number of configurable images
- 250
- Number of recipes
- 50
- Enclosure material (front)
- Plastic
- Width of the housing front
- 214 mm
- Height of housing front
- 158 mm
- Mounting cutout, width
- 198 mm
- Mounting cutout, height
- 142 mm
- Mounting depth
- 39 mm
- Weight (without packaging)
- 800 g
- Power consumption
- 5.5 W
- Supporting protocol for EtherCAT
- No
- Voltage type (supply voltage)
- DC
- Number of HW-interfaces RS-422
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces USB
- 1
- Type of display
- TFT
- Number of colours of the display
- 65536
- Number of pixels, horizontal
- 800
- Number of pixels, vertical
- 480
- Usable project memory/user memory
- 10000 kByte
- Number of function buttons, programmable
- 8
- Touch technology
- Resistive touch
- With touch screen
- Yes
- Number of password levels
- 50
- Number of online languages
- 10
- Degree of protection (IP), front side
- IP65
- Width of the front
- 214 mm
- Height of the front
- 158 mm
- Built-in depth
- 39 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4034106029227
- SAP 1000644438
- Code 8424925
