Siemens SIRIUS ACT 3SU1156-6AA70-3AA0 Indicator Light 22 mm Metal Clear 230 V AC

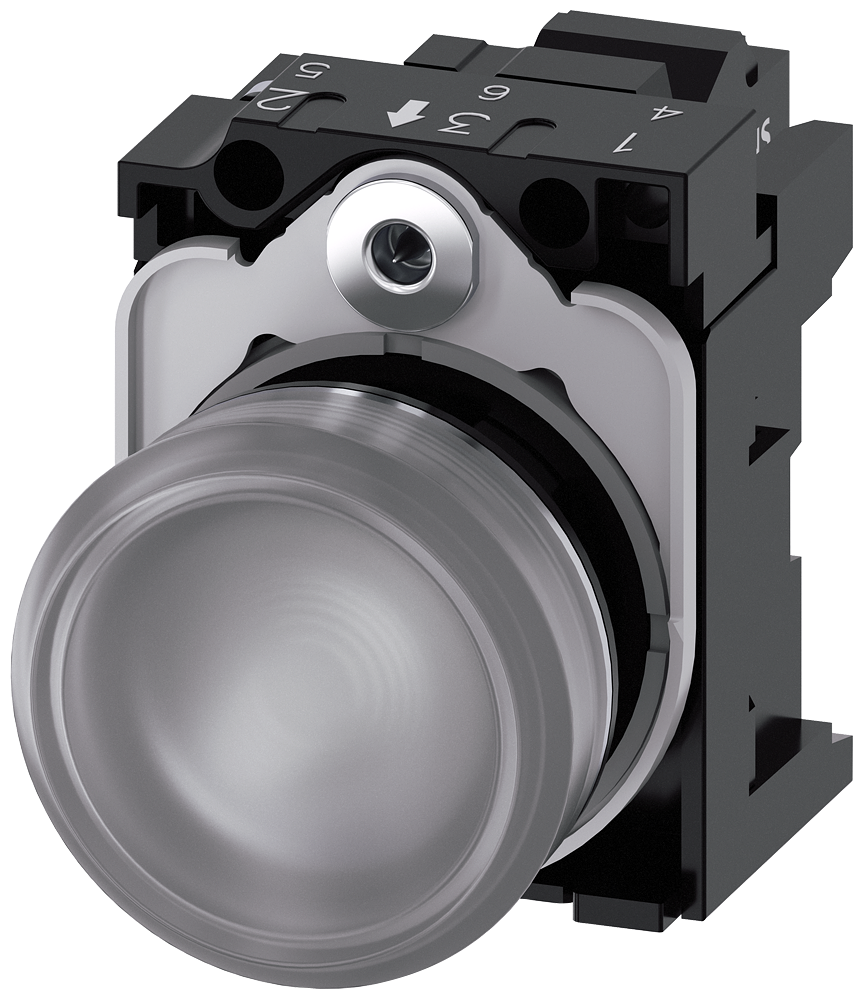

Siemens 3SU1156-6AA70-3AA0 — SIRIUS ACT 22 mm command and signalling device. Complete indicator light with clear smooth lens, holder, and integrated 230 V AC LED module wired through spring-type terminals. Metal shiny front ring in the 22 mm cutout family.

Manufacturer part number (MPN)

3SU1156-6AA70-3AA0

EAN / GTIN

4011209967373

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Indicator lights

Design of the product

Complete unit

Product type designation

3SU1

Product line

Metal, shiny, 22 mm

Manufacturer's article number — of supplied LED module

3SU1401-1BF60-3AA0

Manufacturer's article number — of the supplied holder

3SU1550-0AA10-0AA0

Manufacturer's article number — of supplied repeater

3SU1051-6AA70-0AA0

Number of command points

1

Product extension optional light source

Yes

Color — of the actuating element

clear

Material of the actuating element

plastic

Shape of the actuating element

round

Outer diameter of the actuating element

29.45 mm

Product component front ring

No

Material of the holder

Plastic

Number of LED modules

1

Product component light source

Yes

Insulation voltage rated value

320 V

Degree of pollution

3

Type of voltage of the operating voltage

AC

Surge voltage resistance rated value

4 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Reference code according to IEC 81346-2

P

General technical data — Net Weight

57.5 g

Type of voltage of the supply voltage of the light source

AC

Supply voltage of the light source at AC — at 50 Hz rated value

230 V

Supply voltage of the light source at AC — at 60 Hz rated value

230 V

Relative negative tolerance of the supply voltage

20 %

Relative positive tolerance of the supply voltage

20 %

Inrush current maximum

3 A

Type of electrical connection

other

Type of electrical connection — of modules and accessories

Spring-type terminal

Type of connectable conductor cross-sections — solid without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.25 ... 0.75 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (24 ... 16)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Type of light source

LED

Color of the light source

white

Light intensity

900 ... 1 400 mcd

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method

front plate mounting

Fastening method — of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Shape of the installation opening

round

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

11.8 mm

Installation width

29.5 mm

Installation depth

49.7 mm

Hole diameter

22.3 mm

Voltage type

AC

Colour lens

Colourless

Number of indicator lights

1

Rated operating voltage Ue

230 V

Width opening

29.5 mm

Height opening

11.8 mm

Degree of protection (IP)

IP67/IP69K

Construction type lens

Round

Type of lens

Flat

Country of origin

Germany

HS Code

8531.80
