Siemens Circuit breaker 0 3RV2311-0BC10
Pricing
Request a quote
We reply within 24 hours
Product Description

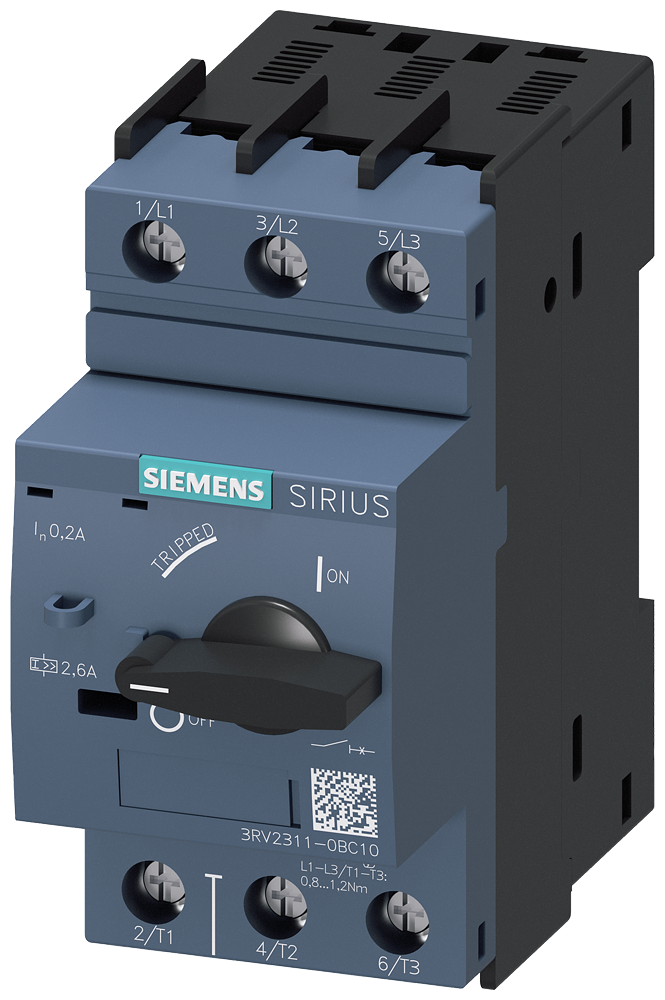

Siemens 3RV2311-0BC10 Circuit breaker 0.2A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2311-0BC10
- EAN / GTIN
- 4011209713864
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 97 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 0.06 kW
- Rated permanent current Iu
- 0.2 A
- Number of poles
- 3
- Power loss
- 5.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- No
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.03 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209713864
- SAP 1000097895
- Code 8939909
Product Documentation
