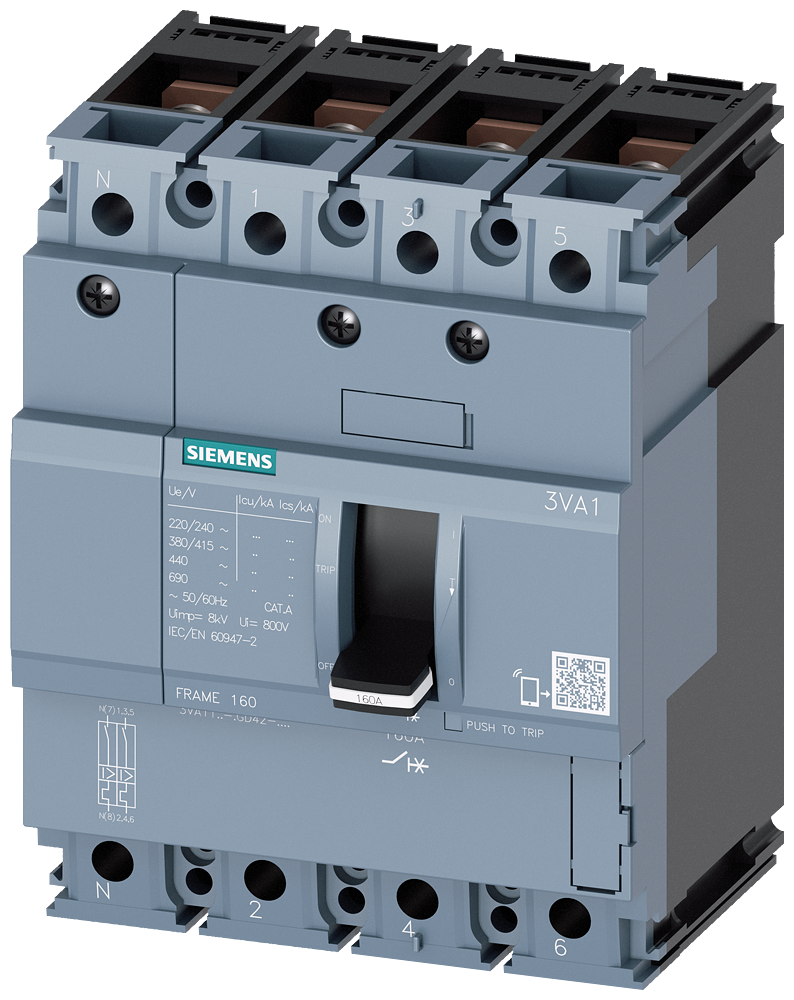

Siemens 3VA1 Circuit Breaker 25 kA 4-Pole 16 A TM210 Fast Thermal Release
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA1196-3GD42-0AA0 circuit breaker, 3VA1 series, 25 kA, 4-pole, TM210, fast thermal and instantaneous release, 16 A, bolt connection.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA1196-3GD42-0AA0
- EAN / GTIN
- 4042948831601
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 16 A
- Number of poles
- 4
- Breaking capacity
- 25 kA
- Rated permanent current Iu
- 16 A
- With integrated under voltage release
- No
- Overload release current setting
- 16 A
- Rated voltage
- 690 V
- Power loss
- 10.6 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Adjustment range undelayed short-circuit release
- 320 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948831601
- SAP 1000731694
- Code 838789
Product Documentation
