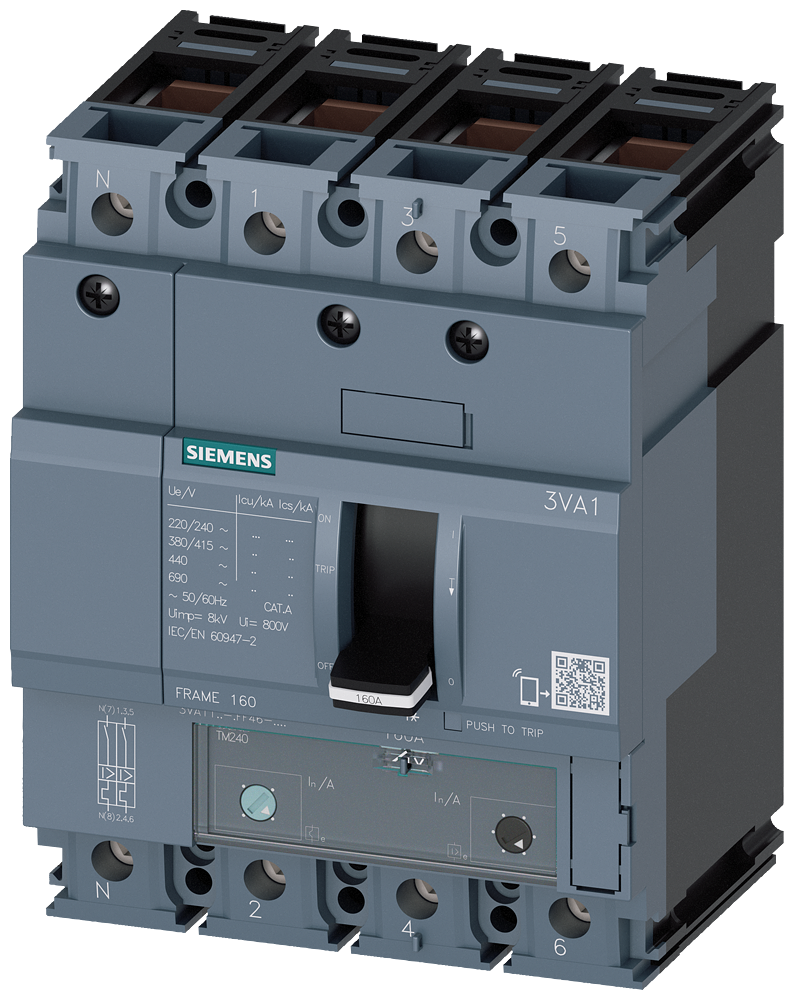

Siemens 3VA11, 25KA, 4-Pole, TM240, IN=40A,IR=28A 3VA11403GF460AA0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA11403GF460AA0 3VA11, 25KA, 4-pole, TM240, IN=40A,IR=28A.40A,II=5.10 X IN, box terminal.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA11403GF460AA0
- EAN / GTIN
- 4042948824405
- Sales unit
- pcs
- Number of poles
- 4P
- Breaking capacity
- 25 kA
- Rated current
- 40 A
- Rated permanent current Iu
- 40 A
- With integrated under voltage release
- No
- Overload release current setting
- 28–40 A
- Rated voltage
- 690 V
- Power loss
- 10.8 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Frame clamp
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Adjustment range undelayed short-circuit release
- 200–400 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948824405
- SAP 1000723971
- Code 8344920
Product Documentation
More from Siemens
Siemens

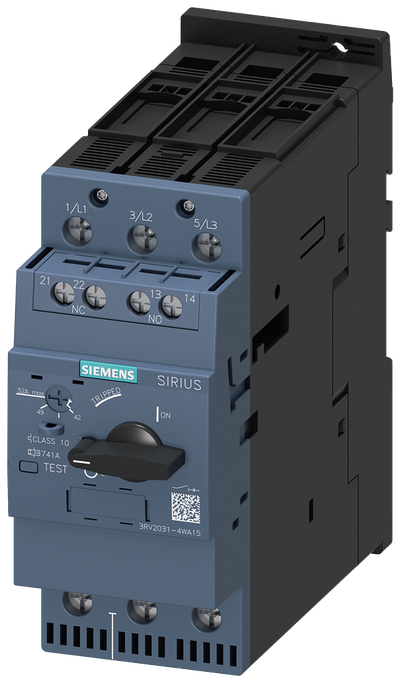

Siemens SIRIUS Motor protection circuit breaker 42 3RV2031-4WA15
Siemens

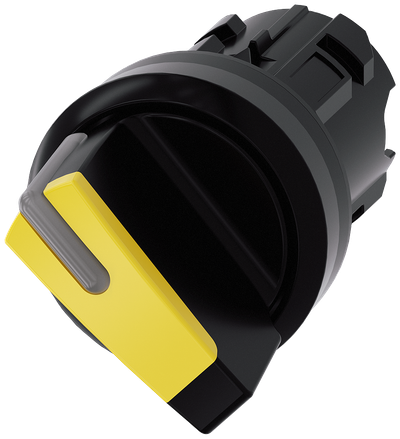

Siemens SIRIUS Selector switch, illuminable, 22 mm, round, plastic, yellow, selector switch, short, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30H/12H
