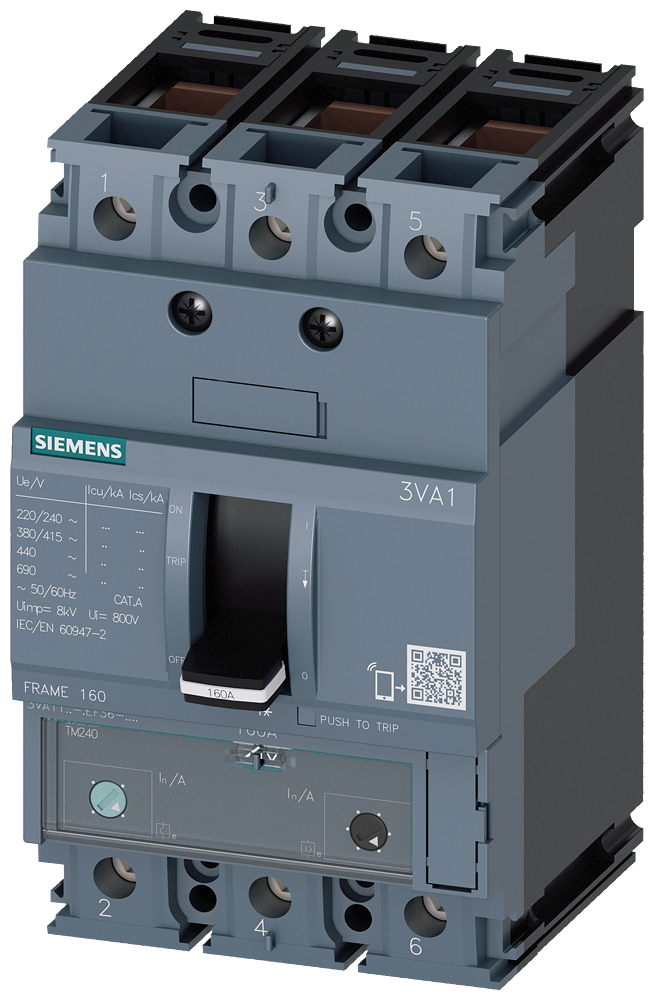

Siemens 3VA11, 25KA, 3-Pole, TM240, IN=16A,IR=11,2A 3VA1196-3EF36-0AA0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA1196-3EF36-0AA0 3VA11, 25KA, 3-pole, TM240, IN=16A,IR=11,2A.16A,II=10.20 X IN, box terminal.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA1196-3EF36-0AA0
- EAN / GTIN
- 4042948820285
- Sales unit
- pcs
- Number of poles
- 3P
- Breaking capacity
- 25 kA
- Rated current
- 16 A
- Rated permanent current Iu
- 16 A
- With integrated under voltage release
- No
- Overload release current setting
- 11–16 A
- Rated voltage
- 690 V
- Power loss
- 10.6 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Frame clamp
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Adjustment range undelayed short-circuit release
- 160–320 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948820285
- SAP 1000723892
- Code 8344846
Product Documentation
More from Siemens
Siemens
Siemens 3NE8018-1
Siemens
Siemens 3RU2146-4MB0 SIRIUS S3 Thermal Overload Relay for Motor Protection
Siemens
Siemens 3RU1900-2AM71
Siemens
Siemens SENTRON 5SY8406-8 Miniature Circuit Breaker 4-Pole D6A 25KA
Siemens
Siemens Alpha 400/630 Din, Set for Terminal blockr with Terminal Support, Felt Cover without Cut-Out 8GK4401-2KK22
Siemens
Siemens SITOP DC power supply 6EP3333-7SB00-0AX0
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD2240-2ME20-0, 32 A, 4-Pole, Front Operated Centre, with Rotary Handle
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE16-0AP0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3VA1196-3EF36-0AA0?
- 3VA1196-3EF36-0AA0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3VA1196-3EF36-0AA0.
- What is the HS code for 3VA1196-3EF36-0AA0?
- The customs tariff (HS) code for 3VA1196-3EF36-0AA0 is 8536.20.
- Who manufactures 3VA1196-3EF36-0AA0?
- 3VA1196-3EF36-0AA0 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3VA1196-3EF36-0AA0?
- Yes — the 3VA1196-3EF36-0AA0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3VA1196-3EF36-0AA0?
- The minimum order quantity is 1.
- Is 3VA1196-3EF36-0AA0 available?
- Yes — 3VA1196-3EF36-0AA0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
