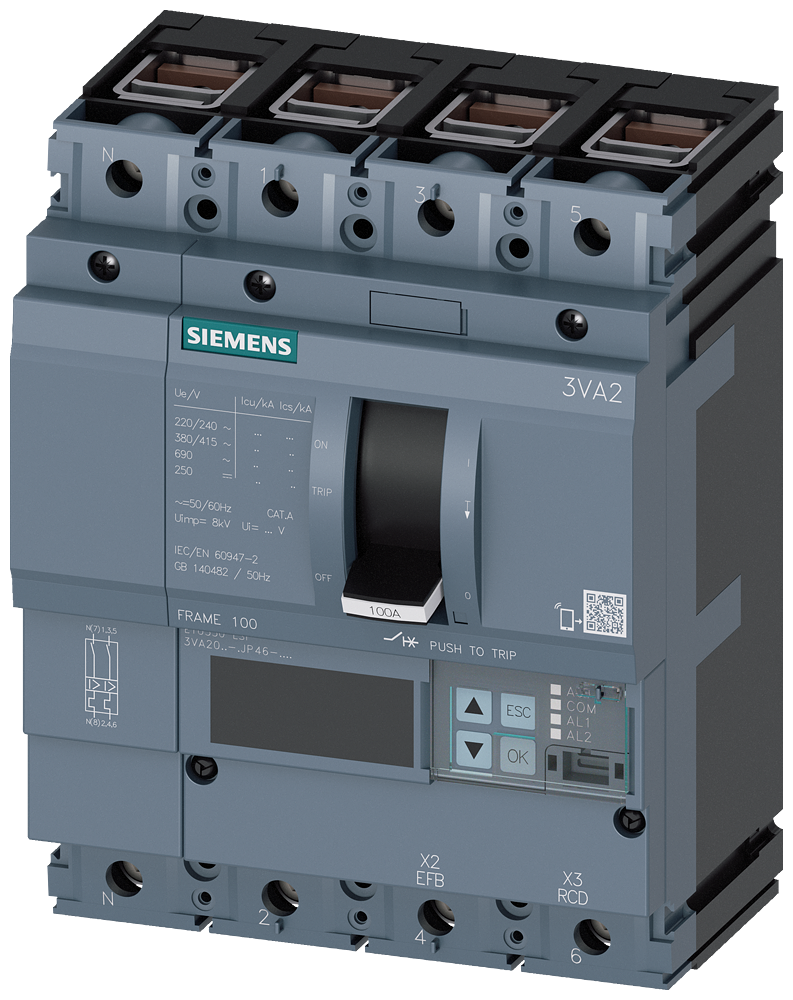

Siemens MCCB_3VA20_4P_55KA_ETU550_,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,terminal Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2010-5JP46-0AA0 MCCB_3VA20_4P_55KA_ETU550_,LSI,IN=100A,IR=40A-100A,ISD=0,6-10xIN,II=1,5-12xIN,terminal Cu.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2010-5JP46-0AA0
- EAN / GTIN
- 4042948818374
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 100 A
- Rated permanent current Iu
- 100 A
- With integrated under voltage release
- No
- Number of poles
- 4
- Power loss
- 13.5 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Frame clamp
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Device construction
- Built-in device slide-in technique (withdrawable)
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948818374
- SAP 1000632019
- Code 8566592
