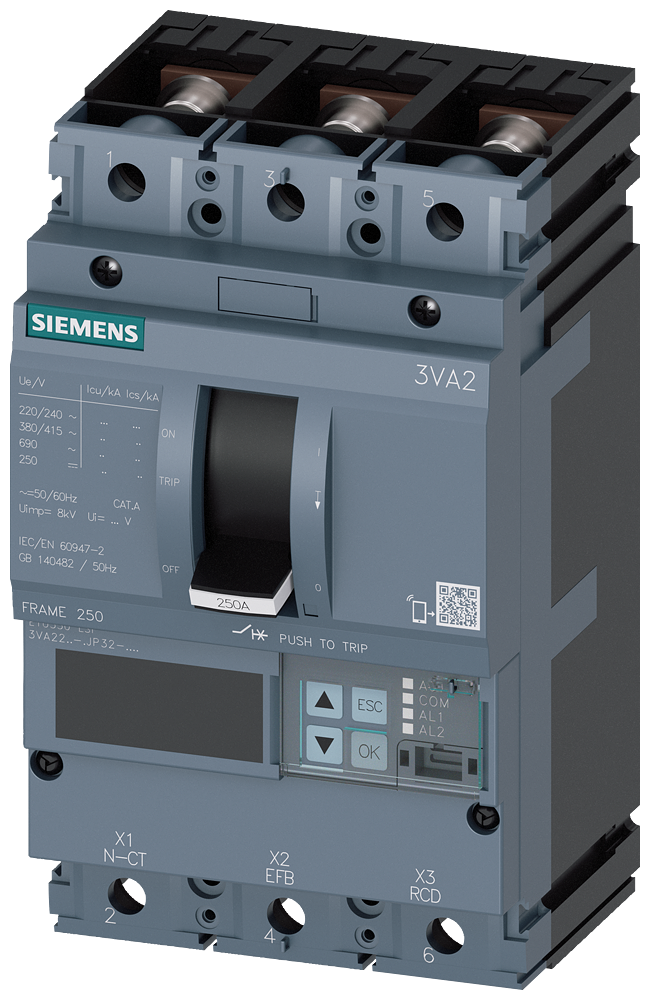

Siemens MCCB_3VA22_3P_55KA_ETU550,LSI,IN=160A,IR=64A-160A,ISD=0,6-10XIN,II=1,5-12XIN,B
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2216-5JP32-0AA0 MCCB_3VA22_3P_55KA_ETU550,LSI,IN=160A,IR=64A-160A,ISD=0,6-10xIN,II=1,5-12xIN,B.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2216-5JP32-0AA0
- EAN / GTIN
- 4042948805176
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 160 A
- Rated permanent current Iu
- 160 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Power loss
- 19.7 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Device construction
- Built-in device slide-in technique (withdrawable)
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948805176
- SAP 1000648040
- Code 8195485
