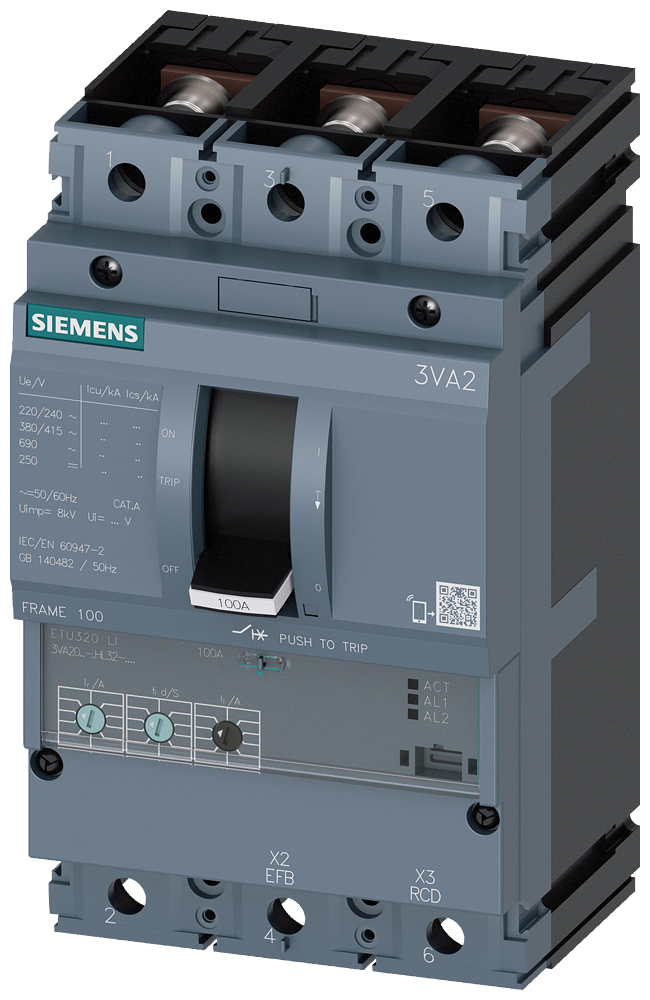

Siemens MCCB_3VA20_3P_55KA_ETU320,LI,IN=63A,IR=25A-63A,II=1,5-12XIN,B
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2063-5HL32-0AA0 MCCB_3VA20_3P_55KA_ETU320,LI,IN=63A,IR=25A-63A,II=1,5-12xIN,B.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2063-5HL32-0AA0
- EAN / GTIN
- 4042948833568
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 63 A
- Rated permanent current Iu
- 63 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Overload release current setting
- 25–63 A
- Rated voltage
- 690 V
- Power loss
- 5.4 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Adjustment range undelayed short-circuit release
- 95–756 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948833568
- SAP 1000705785
- Code 8321968
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS 3RB3 Electronic Overload Relay 10...40 A, Size S0, Class 5...30, Main Screw, Aux Screw, Ground Fault Detection
3RB3123-4VB0
Siemens
Siemens ALPHA 630, floor-standing cabinet, IP43, safety class 2, H: 1950 mm, W: 800 mm, D: 210 mm, RAL 7035
8GK1332-8KA32
Siemens
Siemens Alpha 400 Din, Panel board Surface-mounted mounting, Delivery Form Flat Pack, Ap-Cabinet, Colour Ral 9016 8GK1102-7KK52
Siemens
Siemens 3TK1934-0D
Siemens
Siemens SIMATIC S7 automation module 6ES7952-0AF00-0AA0
Siemens
Siemens Sinamics G120C PN 3AC 400V 5,5kW without filter
6SL3210-1KE21-3UF1
Siemens
Siemens SENTRON 5SY7406-6 Miniature Circuit Breaker 4-Pole B6A 15KA
Siemens
Siemens LED light 5W,24-48VDC, MOTION DETECTOR 8MR2201-0C
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3VA2063-5HL32-0AA0?
- 3VA2063-5HL32-0AA0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3VA2063-5HL32-0AA0.
- What is the HS code for 3VA2063-5HL32-0AA0?
- The customs tariff (HS) code for 3VA2063-5HL32-0AA0 is 8536.90.
- Who manufactures 3VA2063-5HL32-0AA0?
- 3VA2063-5HL32-0AA0 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3VA2063-5HL32-0AA0?
- Yes — the 3VA2063-5HL32-0AA0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3VA2063-5HL32-0AA0?
- The minimum order quantity is 1.
- Is 3VA2063-5HL32-0AA0 available?
- Yes — 3VA2063-5HL32-0AA0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
