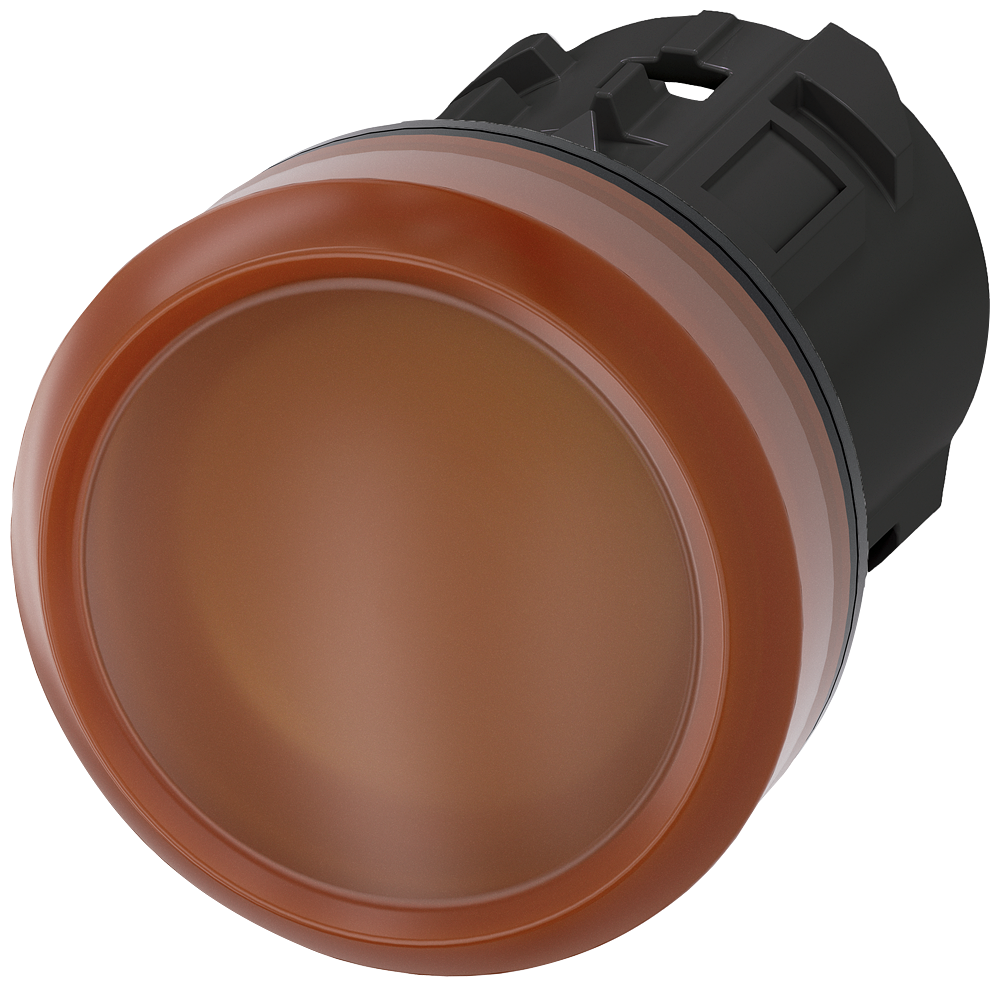

Siemens SIRIUS ACT Indicator lights, 22 mm, round, plastic, amber, lens, smooth
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1001-6AA00-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Indicator lamp Ravgul LED 24V AC/DC 22mm round matte metal design.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1001-6AA00-0AA0
- EAN / GTIN
- 4011209946354
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Indicator lights
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- No
- Color — of the actuating element
- amber
- Color — of the cover cap
- amber
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 29.45 mm
- Product component front ring
- No
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Reference code according to IEC 81346-2
- P
- General technical data — Net Weight
- 0.011 kg
- Tightening torque of the screws in the bracket
- 1 ... 1.2 N·m
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 29.5 mm
- Installation/ mounting/ dimensions — width
- 29.5 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 11.8 mm
- Installation width
- 29.5 mm
- Installation depth
- 24.4 mm
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 4011209946354
- SAP 1000688654
- Code 8397387
