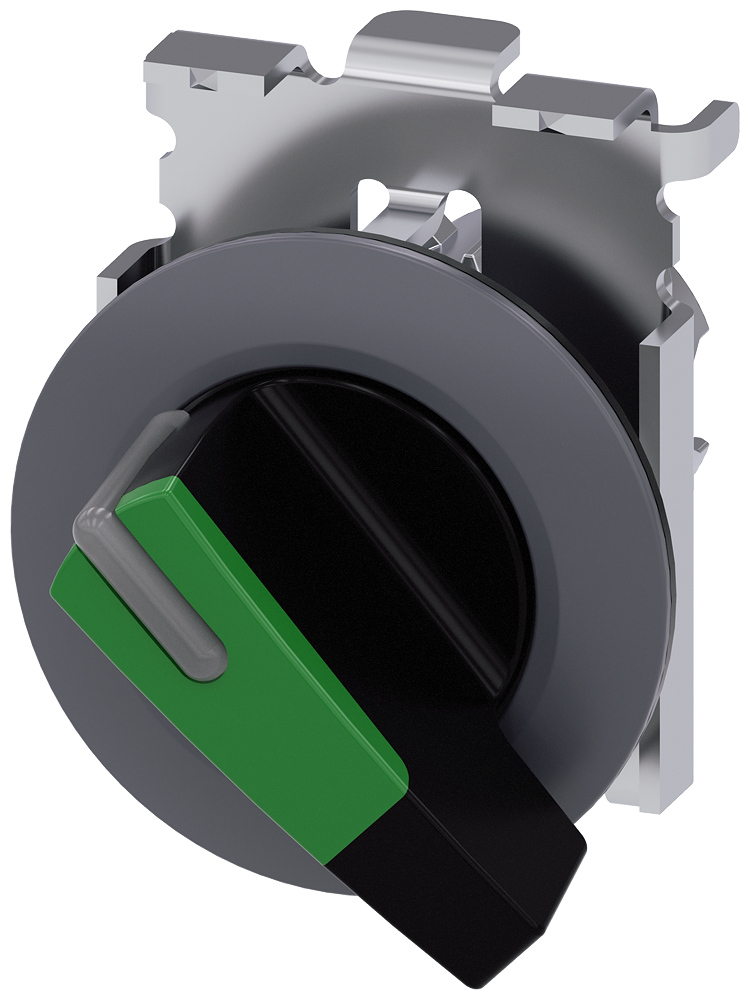

Siemens SIRIUS Selector switch, illuminable, 30 mm, round, metal, matte, green, selector switch, long, front ring for flush installation, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30H/12H

Siemens 3SU1062-2EC40-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 30mm low profile-matte metal Selector Switch-2 positions.

Manufacturer part number (MPN)

3SU1062-2EC40-0AA0

EAN / GTIN

4011209967564

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Selector switches

Design of the product

Actuating/signaling element

Product type designation

3SU1

Product line

Metal, matt, flat, 30 mm

Number of command points

1

Design of the actuating element

selector, long

Principle of operation of the actuating element

momentary contact, 45° (10:30 h/12 h), return from center to left

Product extension optional — light source

Yes

Product extension optional — contact module

Yes

Color of the actuating element

green

Material of the actuating element

plastic

Shape of the actuating element

Handle

Outer diameter of the actuating element

44.8 mm

Number of switching positions

2

Actuating angle — clockwise

45°

Product component front ring

Yes

Design of the front ring

Flat

Material of the front ring

Metal, matt

Color of the front ring

sand gray

Protection class IP

IP66, IP67, IP69(IP69K)

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

1 800 1/h

Mechanical service life (operating cycles) typical

300 000

Reference code according to IEC 81346-2

S

General technical data — Net Weight

84 g

Proportion of dangerous failures — with low demand rate according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920

50 %

B10 value with high demand rate according to SN 31920

500 000

Failure rate [FIT] with low demand rate per NC contact according to SN 31920

100 FIT

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

44.8 mm

Installation/ mounting/ dimensions — width

44.8 mm

Shape of the installation opening

round

Mounting diameter

30.5 mm

Positive tolerance of installation diameter

0.5 mm

Mounting height

22.1 mm

Installation width

44.8 mm

Installation depth

32.1 mm

Hole diameter

30.5 mm

Number of switch positions

2

Colour front ring

Grey

Degree of protection (IP), front side

IP68

Width opening

44.8 mm

Height opening

22.1 mm

Material front ring

Metal

Construction type lens

Rectangular

Type of control element

Wing knob

Colour indicator light cap

Green

Colour control element

Green

Degree of protection (NEMA)

4X

Country of origin

Czechia

HS Code

8538.90
