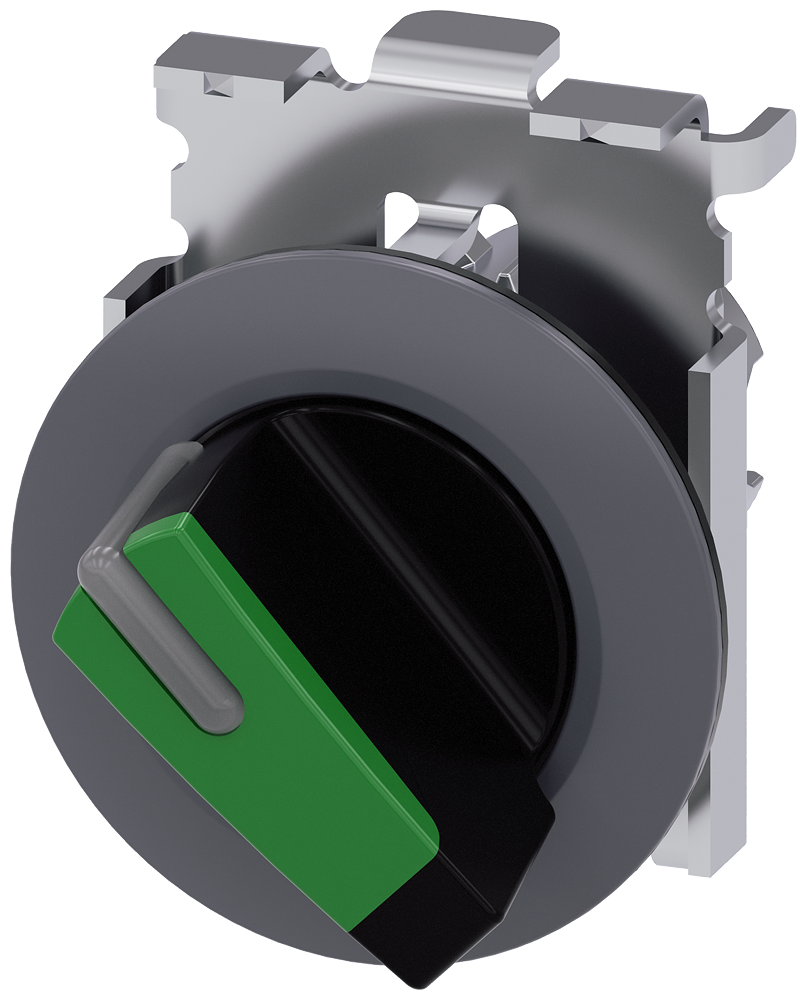

Siemens SIRIUS Selector switch, illuminable, 30 mm, round, metal, matte, green, selector switch, short, front ring for flush installation, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30H/12H
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1062-2DC40-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 30mm low profile-matte metal Selector Switch-2 positions.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1062-2DC40-0AA0
- EAN / GTIN
- 4011209967441
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Selector switches
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, matt, flat, 30 mm
- Number of command points
- 1
- Design of the actuating element
- Selector, short
- Principle of operation of the actuating element
- momentary contact, 45° (10:30 h/12 h), return from center to left
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- Yes
- Color of the actuating element
- green
- Material of the actuating element
- plastic
- Shape of the actuating element
- Handle
- Outer diameter of the actuating element
- 38 mm
- Number of switching positions
- 2
- Actuating angle — clockwise
- 45°
- Product component front ring
- Yes
- Design of the front ring
- Flat
- Material of the front ring
- Metal, matt
- Color of the front ring
- sand gray
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 1 800 1/h
- Mechanical service life (operating cycles) typical
- 300 000
- Reference code according to IEC 81346-2
- S
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 500 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 44.8 mm
- Installation/ mounting/ dimensions — width
- 38 mm
- Shape of the installation opening
- round
- Mounting diameter
- 30.5 mm
- Positive tolerance of installation diameter
- 0.5 mm
- Mounting height
- 22.1 mm
- Installation width
- 38 mm
- Installation depth
- 32.1 mm
- Hole diameter
- 30.5 mm
- Number of switch positions
- 2
- Colour front ring
- Grey
- Degree of protection (IP), front side
- IP68
- Width opening
- 38 mm
- Height opening
- 22.1 mm
- Material front ring
- Metal
- Construction type lens
- Rectangular
- Type of control element
- Wing knob
- Colour indicator light cap
- Green
- Colour control element
- Green
- Degree of protection (NEMA)
- 4X
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209967441
- SAP 1000688610
- Code 8606116
Product Documentation
More from Siemens
Siemens
Siemens PE Infeed for 3RA6 Compact Starter, 63 A, 1-Pole, Spring Clamp Connection
3RA6860-5AC
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AC16-0EC0
Siemens
Siemens Sinamics EMC filter class B, 3AC400V 39,4A, footprint FSC
6SL3203-0BD23-8SA0
Siemens
Siemens SENTRON 3VA9223-0QG00 — Copper connecting bar, angled, prepared for cable lug, 3VA20 / 3VA21 / 3VA22
Siemens
Siemens Front foil for Panels 8"
6AV6671-3CC00-0AX0
Siemens
Siemens SENTRON 3VA9153-0QB00 — Copper connecting bar, 3VA10 / 3VA11
Siemens
Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 38 A, 18.5 kW / 400 V, 3-Pole, 230 V AC, 50/60 Hz, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1
3RA2328-8XB30-1AL2
Siemens

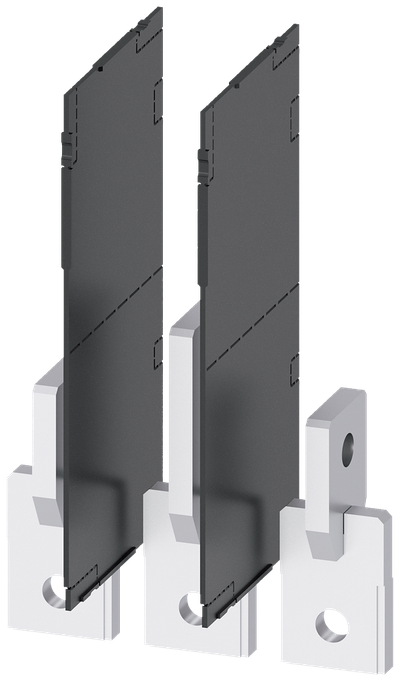

Siemens SENTRON 3VA94830QD00 — Copper connecting bar, 90° angled, 3VA23 / 3VA24
