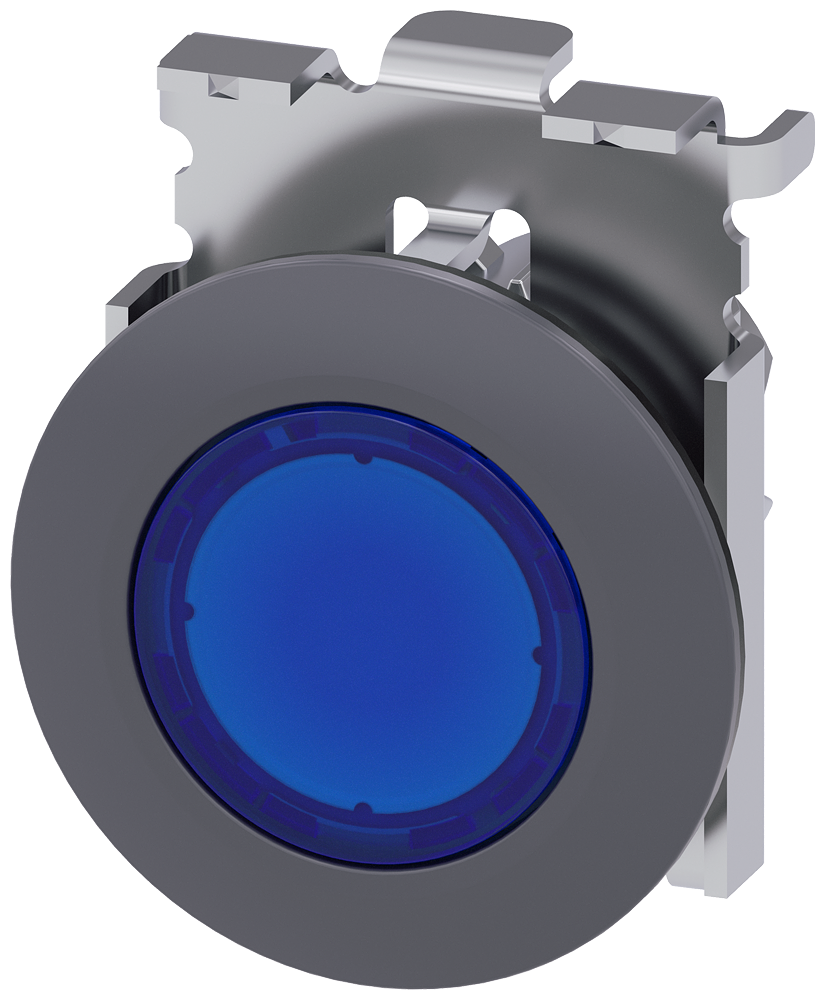

Siemens SIRIUS Illuminated pushbutton, 30 mm, round, metal, matte, blue, front ring for flush installation, momentary contact type
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1061-0JB50-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 30mm low profile-matte metal Push-Button Head - blue illuminated.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1061-0JB50-0AA0
- EAN / GTIN
- 4011209966697
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Illuminated pushbuttons
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, matt, flat, 30 mm
- Number of command points
- 1
- Design of the actuating element
- Flat button
- Principle of operation of the actuating element
- momentary contact type
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- Yes
- Color of the actuating element
- blue
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 38 mm
- Product component front ring
- Yes
- Design of the front ring
- Flat
- Material of the front ring
- Metal, matt
- Color of the front ring
- sand gray
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 3 600 1/h
- Mechanical service life (operating cycles) typical
- 3 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 65 g
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 3 000 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 38 mm
- Installation/ mounting/ dimensions — width
- 38 mm
- Shape of the installation opening
- round
- Mounting diameter
- 30.5 mm
- Positive tolerance of installation diameter
- 0.5 mm
- Mounting height
- 4.2 mm
- Installation width
- 38 mm
- Installation depth
- 31.1 mm
- Hole diameter
- 30.5 mm
- Colour button
- Blue
- Number of command positions
- 1
- Labelled
- No
- Colour front ring
- Grey
- Width opening
- 38 mm
- Height opening
- 4.2 mm
- With protective cover
- No
- Material front ring
- Metal
- Construction type lens
- Round
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209966697
- SAP 1000688603
- Code 884531
Product Documentation
More from Siemens
Siemens
Siemens Accessory for 3KD ST4, terminal cover short length, contains 1 pcs
3KD9404-1
Siemens
Siemens NH2-NH3 connection terminal for auxiliary contact for, frame terminal
3NP1953-1BG40
Siemens
Siemens AS-Interface Add-On Module for 3RA6 Compact Starter, Screw Connection (3RA6970-3D)
Siemens
Siemens Auxiliary Contact Block for 3RA6 Compact Starter (3RA6912-1A)
Siemens
Siemens SENTRON 3VA9157-0PK13 — Side-wall rotary operating mechanism, 3VA10 / 3VA11
Siemens
Siemens SIRIUS Illuminated pushbutton, 30 mm, round, metal, matte, green, front ring for flush installation, momentary contact type
3SU1061-0JB40-0AA0
Siemens
Siemens SIRIUS ACT White Illuminated Plastic Pushbutton 22 mm 1 NO 230 V AC
3SU1106-0AB60-3BA0
Siemens

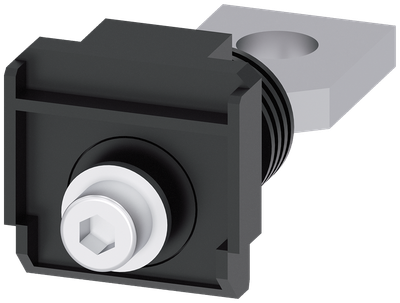

Siemens SENTRON 3VA9401-0QE10 — Rear connection terminal (flat bar), short, 3VA23 / 3VA24
