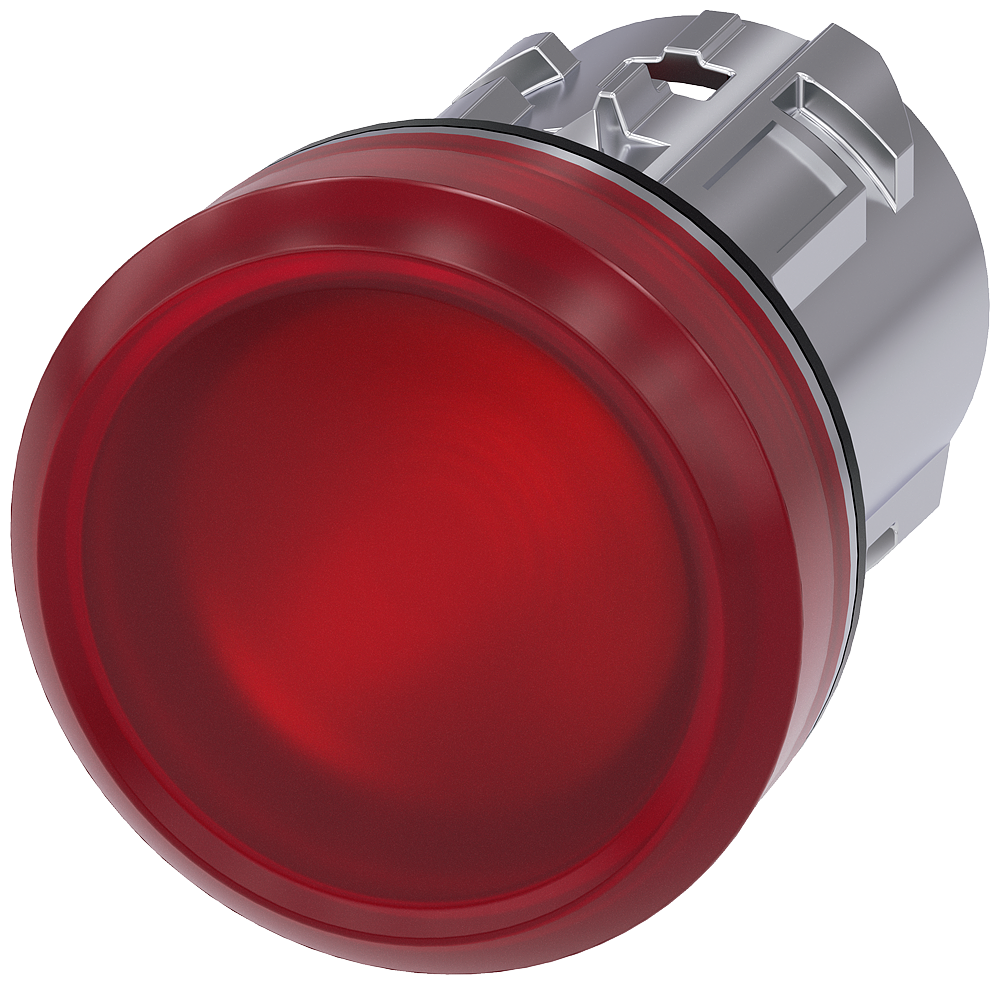

Siemens SIRIUS Indicator lights, 22 mm, round, metal, shiny, red, lens, smooth
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1051-6AA20-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 22mm blank metal design Push-Button Head red-illuminated.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1051-6AA20-0AA0
- EAN / GTIN
- 4011209946385
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Indicator lights
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- No
- Color — of the actuating element
- red
- Color — of the cover cap
- red
- Material of the actuating element
- metal
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 29.45 mm
- Product component front ring
- No
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Reference code according to IEC 81346-2
- P
- Tightening torque of the screws in the bracket
- 1 ... 1.2 N·m
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 29.5 mm
- Installation/ mounting/ dimensions — width
- 29.5 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 11.8 mm
- Installation width
- 29.5 mm
- Installation depth
- 24.4 mm
- Hole diameter
- 22.3 mm
- Colour lens
- Red
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP67/IP69K
- Width opening
- 29.5 mm
- Height opening
- 11.8 mm
- Material front ring
- Plastic
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- High
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209946385
- SAP 1000688553
- Code 8606061
Product Documentation
