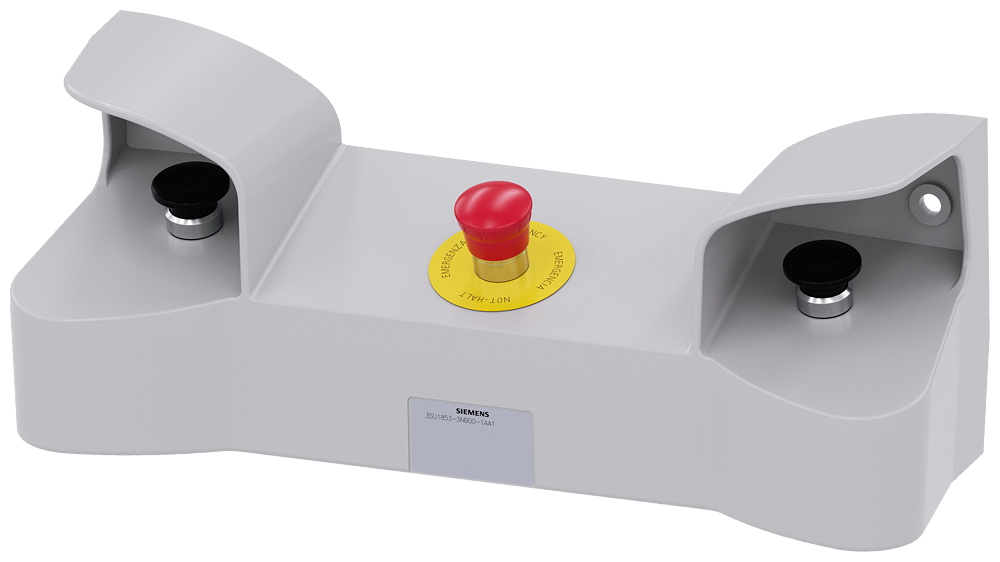

Siemens SIRIUS ACT 3SU1853-3NB00-1AA1 Two-Hand Console with E-Stop, Metal, 22 mm

Siemens 3SU1853-3NB00-1AA1 is a SIRIUS ACT two-hand operating console in a horizontally mounted metal enclosure with a grey top part. It provides three 22 mm round command points on a single unit: two black 40 mm momentary mushroom pushbuttons (1 NO + 1 NC each) and one red 40 mm EMERGENCY STOP with rotate-to-unlock (2 NC). All contacts are screw terminals; the enclosure is rated IP66 with positive opening on all functions.

Manufacturer part number (MPN)

3SU1853-3NB00-1AA1

EAN / GTIN

4011209953796

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Two-hand operation console

Product type designation

3SU1

Design of the housing

Two-hand operating console with standard components

Material of the enclosure

metal

Number of command points

3

Color of the enclosure top part

grey

Delivery state — as a kit

No

Delivery state — pre-wired on strip terminal

No

Fastening method of the enclosure

Horizontal

Design of the actuating element

A = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton

Principle of operation of the actuating element

A = momentary contact / B = latching / C = momentary contact

Product feature — lockout

No

Product feature — staggered switching

No

Color of the actuating element

A = black / B = red / C = black

Material of the actuating element

metal

Shape of the actuating element

round

Number of contact modules

6

Type of unlocking device

A = none / B = rotate to unlock / C = none

Product component front ring

Yes

Material of the front ring

metal

Color of the front ring

silver

Material of the holder

Metal

Product function — positive opening

Yes

Product function — EMERGENCY OFF function

Yes

Product function — EMERGENCY STOP function

Yes

Product component stand/pedestal

No

Protection class IP

IP66

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Vibration resistance according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Reference code according to IEC 81346-2

S

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

4

Number of NO contacts for auxiliary contacts

2

Type of electrical connection on enclosure

Cable routing at the rear 2 x M25

Product function suitable for safety function

Yes

Test wear-related service life necessary

Yes

Proportion of dangerous failures — with low demand rate according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920

20 %

B10 value with high demand rate according to SN 31920

100 000

Failure rate [FIT] with low demand rate according to SN 31920

100 FIT

Failure rate [FIT] with low demand rate per NC contact according to SN 31920

100 FIT

Device type according to ISO 13849-1

3

Safety device type according to IEC 61508-2

Type A

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

185.5 mm

Installation/ mounting/ dimensions — width

492.3 mm

Installation/ mounting/ dimensions — depth

159.5 mm

Number of backing plates

1

Marking of backing plate

NOT-HALT

Color of backing plate

Yellow

Number of contacts as normally closed contact

4

Number of contacts as normally open contact

2

Country of origin

Germany

HS Code

8536.50

• EAN 4011209953796
• SAP 1000688539
• Code 884311
