Siemens 3SU1152-6AA20-1AA0 SIRIUS ACT Indicator Light 22 mm Red 24 V AC/DC

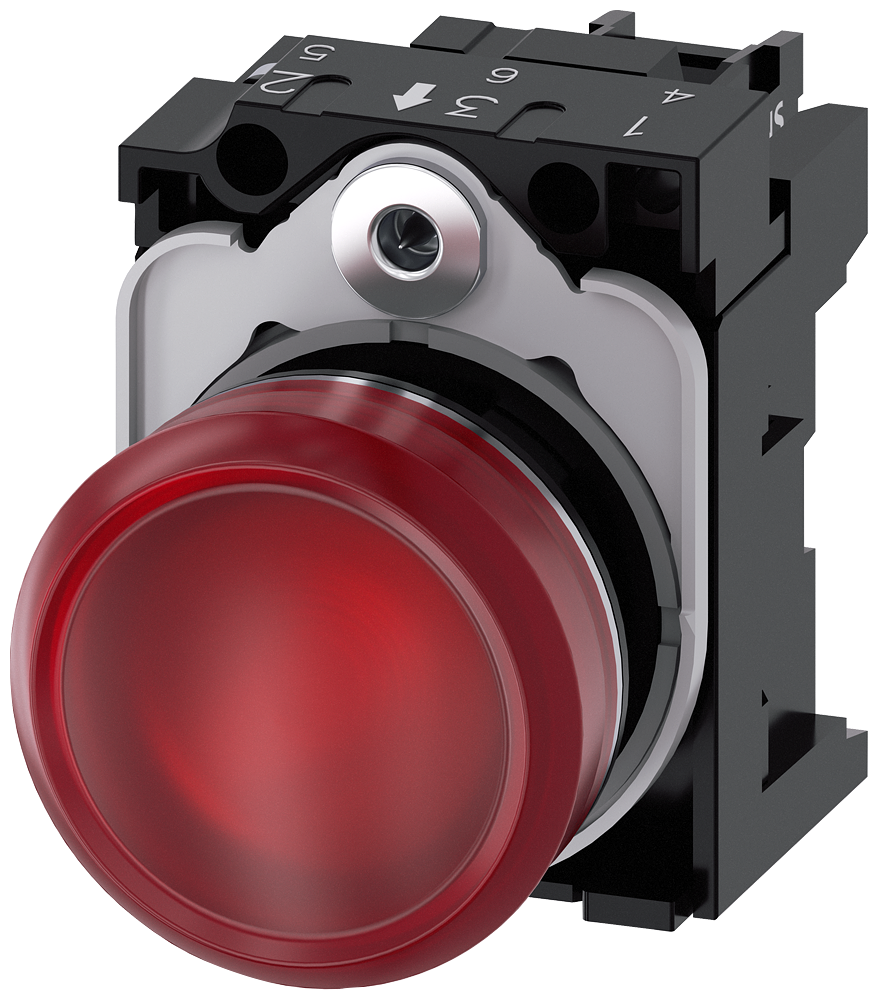

Siemens 3SU1152-6AA20-1AA0 - SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT complete 22 mm shiny metal indicator lamp with smooth red lens, with holder, LED module with integrated LED 24 V AC/DC, screw terminal.

Manufacturer part number (MPN)

3SU1152-6AA20-1AA0

EAN / GTIN

4011209957008

HS code

8539.52

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Indicator lights

Design of the product

Complete unit

Product type designation

3SU1

Product line

Metal, shiny, 22 mm

Number of command points

1

Product extension optional light source

Yes

Color — of the actuating element

red

Material of the actuating element

plastic

Shape of the actuating element

round

Outer diameter of the actuating element

29.45 mm

Product component front ring

No

Material of the holder

Plastic

Number of LED modules

1

Product component light source

Yes

Insulation voltage rated value

320 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

4 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Reference code according to IEC 81346-2

P

Type of voltage of the supply voltage of the light source

AC/DC

Supply voltage of the light source at AC — at 50 Hz rated value

24 V

Supply voltage of the light source at AC — at 60 Hz rated value

24 V

Relative negative tolerance of the supply voltage

20 %

Relative positive tolerance of the supply voltage

20 %

Inrush current maximum

2 A

Type of electrical connection

other

Type of electrical connection — of modules and accessories

Screw-type terminal

Type of connectable conductor cross-sections — solid with core end processing

2x (0.5 ... 0.75 mm²)

Type of connectable conductor cross-sections — solid without core end processing

2x (1.0 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (1,0 ... 1,5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (18 ... 14)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque with screw-type terminals

0.8 ... 0.9 N·m

Type of light source

LED

Color of the light source

red

Light intensity

450 ... 1 120 mcd

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method

front plate mounting

Fastening method — of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Shape of the installation opening

round

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

11.8 mm

Installation width

29.5 mm

Installation depth

49.7 mm

HS Code

8539.52

• EAN 4011209957008
• SAP 1000688530
• Code 884293
