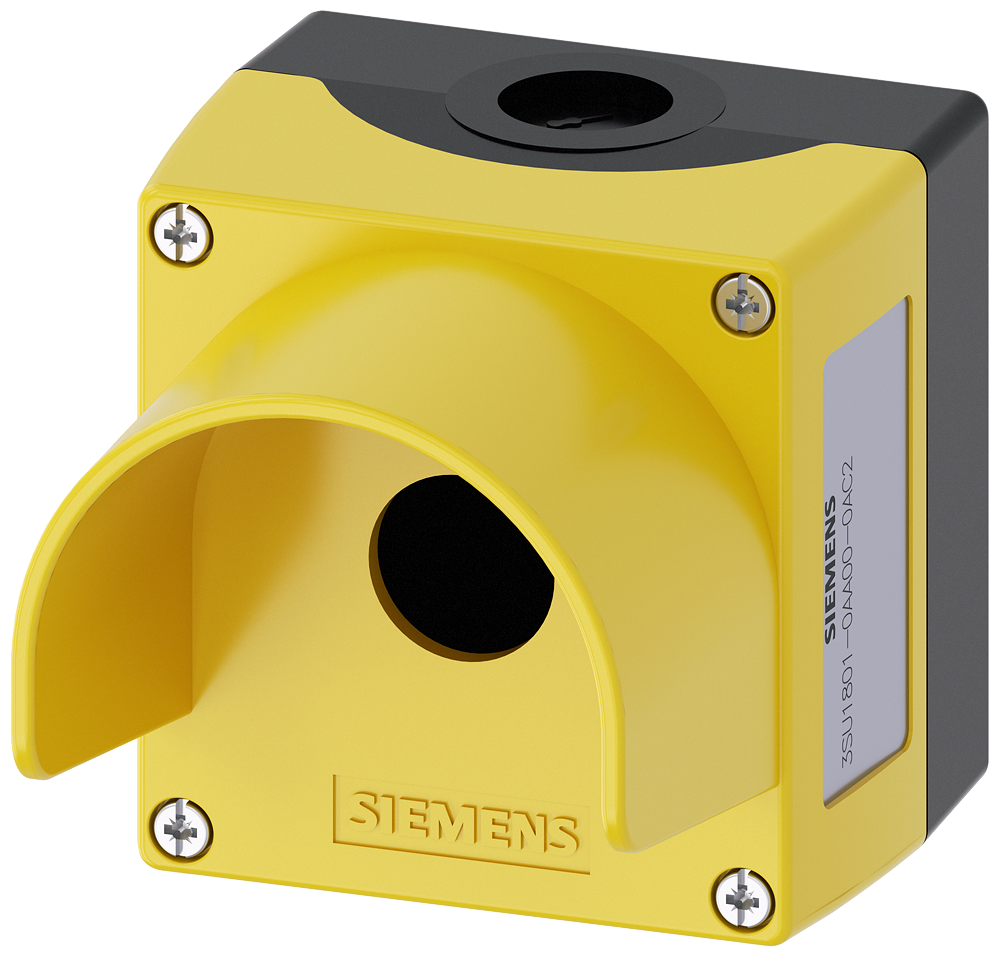

Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, with protective collar, without equipment
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1801-0AA00-0AC2 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Box - yellow rigid plastic jacket Yellow emergency stop box with jacket.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1801-0AA00-0AC2
- EAN / GTIN
- 4011209968288
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Enclosures
- Product type designation
- 3SU1
- Design of the housing
- with protective collar
- Shape of the enclosure front
- Square
- Material of the enclosure
- plastic
- Number of command points
- 1
- Product component protective collar
- Yes
- Color of the enclosure top part
- yellow
- Fastening method of the enclosure
- Vertical
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance for railway applications according to EN 61373
- Category 1, Class B
- General technical data — Net Weight
- 313 g
- Cable entry type
- Without
- Type of electrical connection on enclosure
- Cable routing above and below, both 1 x M20
- Tightening torque of fixing screws in the enclosure cover
- 1.5 ... 1.7 N·m
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Fastening method of modules and accessories
- Floor mounting
- Installation/ mounting/ dimensions — height
- 85 mm
- Installation/ mounting/ dimensions — width
- 85 mm
- Installation/ mounting/ dimensions — depth
- 112.5 mm
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Width
- 85 mm
- Height
- 85 mm
- Depth
- 112.5 mm
- Diameter openings
- 22.3 mm
- Number of command positions
- 1
- Colour housing cover
- Yellow
- Housing material
- Plastic
- Construction type housing
- Surface mounted housing
- Degree of protection (IP)
- IP67/IP69K
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209968288
- SAP 1000688506
- Code 8297157
Product Documentation
