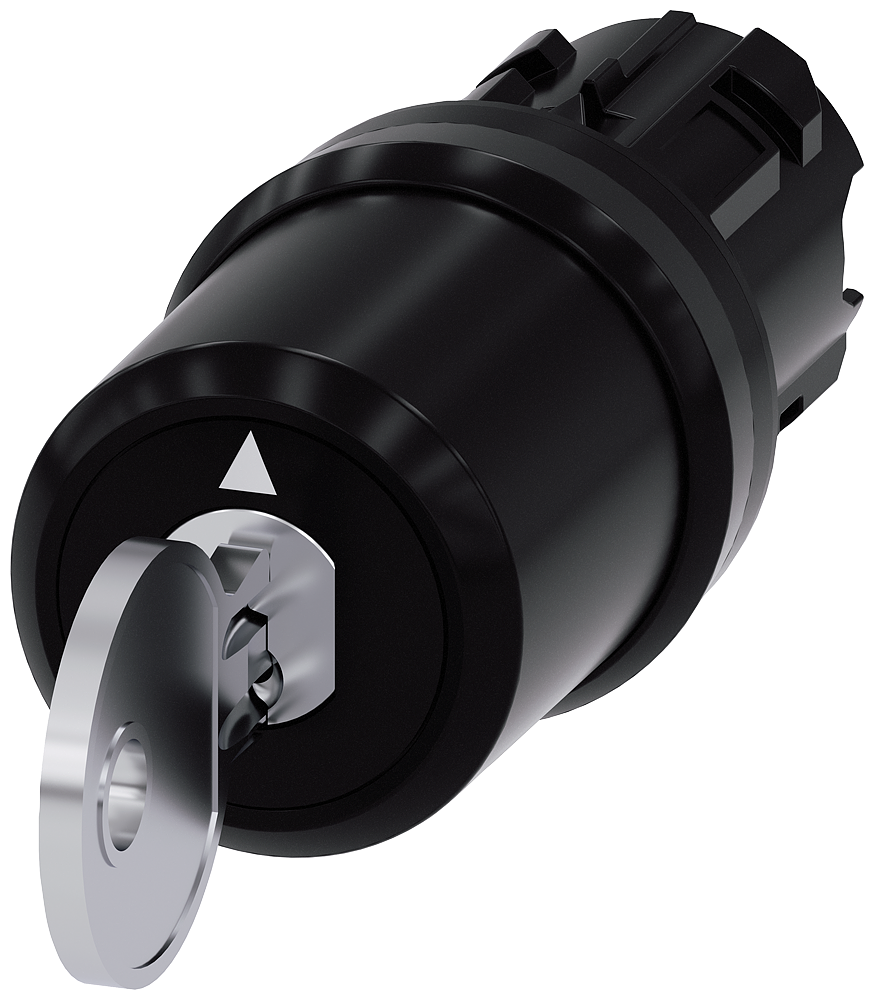

Siemens SIRIUS ACT Siemens keyswitch, C, 22 mm, round, plastic, lock number S-10-CG, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2X45°, 10:30H/12H/13:30H, key removal I+O+II
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1000-5BL11-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 22mm black rigid plastic design Key selector head, CES In-O-II.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1000-5BL11-0AA0
- EAN / GTIN
- 4011209950658
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Key-operated switches
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Principle of operation of the actuating element
- latching, 2x45° (10:30 h/12 h/13:30 h)
- Product extension optional light source
- No
- Color — of the actuating element
- silver
- Material of the actuating element
- metal
- Shape of the actuating element
- Key
- Outer diameter of the actuating element
- 29.5 mm
- Number of switching positions
- 3
- Switch position for key distraction
- O+I+II
- Actuating angle — clockwise
- 45°
- Actuating angle — anticlockwise
- 45°
- Lock make
- Siemens, C
- Key number
- S-10-CG
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Protection class IP of the terminal
- IP20
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 1 800 1/h
- Mechanical service life (operating cycles) typical
- 1 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 125 g
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 300 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 29.5 mm
- Installation/ mounting/ dimensions — width
- 29.5 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 61 mm
- Installation width
- 29.5 mm
- Installation depth
- 25.4 mm
- Hole diameter
- 22.3 mm
- Number of switch positions
- 3
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP68
- Width opening
- 29.5 mm
- Height opening
- 61 mm
- Material front ring
- Plastic
- Construction type lens
- Rectangular
- Type of control element
- Key
- Colour control element
- Silver
- Degree of protection (NEMA)
- 4X
- Country of origin
- Czechia
