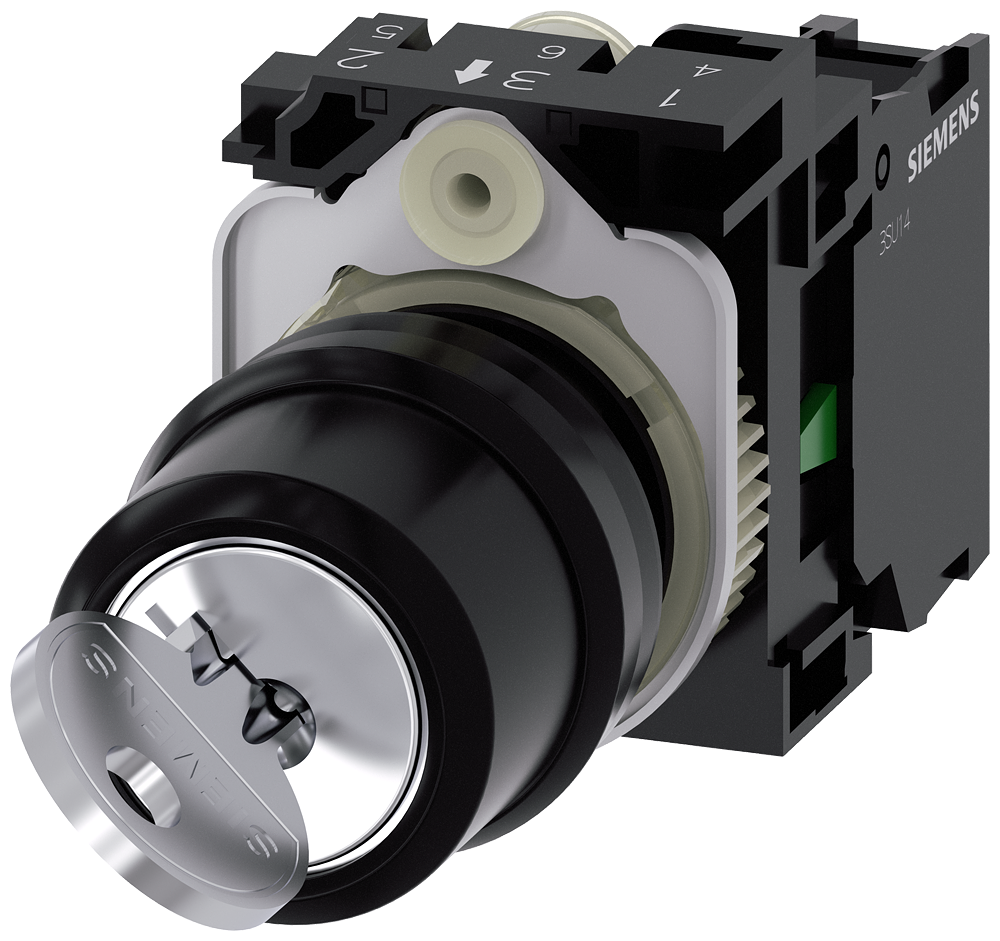

Siemens 3SU1100-4BF11-1BA0 SIRIUS ACT Ronis Key Switch 22 mm SB30 2 Positions O-I

Siemens 3SU1100-4BF11-1BA0 - SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT complete 22 mm black hard plastic Ronis key-operated switch, lock number SB30, 2 latching positions O-I (10:30H/13:30H), key removal O+I, with holder, 1 NO, screw terminal; possible special locks SB31, 421, 455.

Manufacturer part number (MPN)

3SU1100-4BF11-1BA0

EAN / GTIN

4011209957671

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Key-operated switches

Design of the product

Complete unit

Product type designation

3SU1

Product line

Plastic, black, 22 mm

Shape of the enclosure front

round

Number of command points

1

Principle of operation of the actuating element

latching, 90° (10:30 h/13:30 h)

Color of the actuating element

silver

Material of the actuating element

metal

Shape of the actuating element

Key

Outer diameter of the actuating element

29.5 mm

Number of contact modules

1

Number of switching positions

2

Actuating angle — clockwise

90°

Key number

SB30

Insulation voltage rated value

500 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

6 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

1 800 1/h

Mechanical service life (operating cycles) typical

1 000 000

Electrical endurance (operating cycles) typical

10 000 000

Thermal current

10 A

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

84 g

Operating voltage — rated value

5 ... 500 V

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

0

Number of NO contacts for auxiliary contacts

1

Type of electrical connection — of modules and accessories

Screw-type terminal

Type of connectable conductor cross-sections — solid with core end processing

2x (0.5 ... 0.75 mm²)

Type of connectable conductor cross-sections — solid without core end processing

2x (1.0 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (1,0 ... 1,5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (18 ... 14)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque for auxiliary contacts with screw-type terminals

0.8 ... 0.9 N·m

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

49.4 mm

Installation width

29.5 mm

Installation depth

49.7 mm

Hole diameter

22.3 mm

Colour button

Silver

Number of switch positions

2

Colour front ring

Black

Width opening

29.5 mm

Height opening

49.4 mm

Degree of protection (IP)

IP67/IP69K

Material front ring

Plastic

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50
