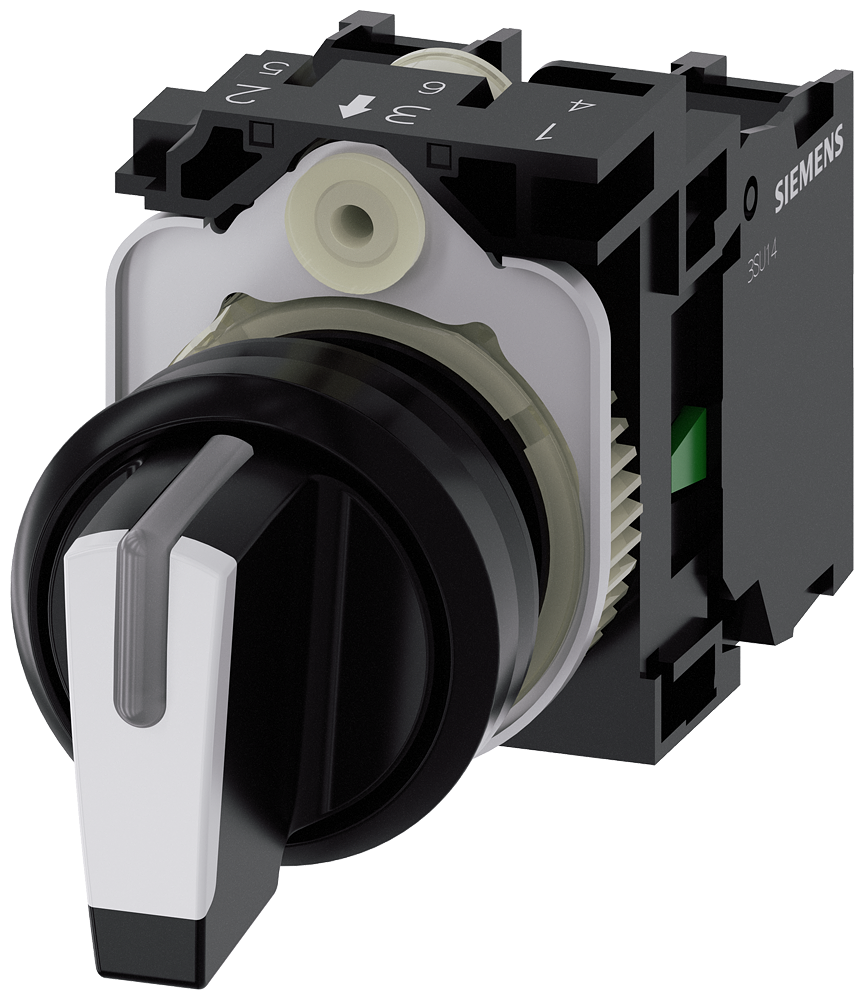

Siemens SIRIUS ACT 3SU1100-2BM60-1NA0 3-Position Selector Switch, Momentary, 2 NO

Siemens 3SU1100-2BM60-1NA0 is a 22 mm SIRIUS ACT selector switch in white plastic with a short lever and three positions I-O-II (10:30h/12h/13:30h), momentary with return on both sides. The unit is supplied with two contact modules for two normally-open circuits on screw terminals, rated 500 V insulation, 10 A thermal current and 6 kV surge withstand. Front protection is IP66, IP67 and IP69/IP69K; terminal protection is IP20 and NEMA ratings include 4X and 12. Mechanical life is 1,000,000 cycles and electrical endurance is 10,000,000 cycles.

Manufacturer part number (MPN)

3SU1100-2BM60-1NA0

EAN / GTIN

4011209957640

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Selector switches

Product type designation

3SU1

Product line

Plastic, black, 22 mm

Number of command points

1

Principle of operation of the actuating element

momentary contact, 2x45° (10:30 h/12 h/13:30 h), return on both sides

Outer diameter of the actuating element

32.3 mm

Number of contact modules

2

Number of switching positions

3

Actuating angle — clockwise

45°

Actuating angle — anticlockwise

45°

Number of LED modules

0

Insulation voltage rated value

500 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

6 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

1 800 1/h

Mechanical service life (operating cycles) typical

1 000 000

Electrical endurance (operating cycles) typical

10 000 000

Thermal current

10 A

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

63 g

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

0

Number of NO contacts for auxiliary contacts

2

Type of electrical connection

screw terminal

Type of electrical connection — of modules and accessories

Screw-type terminal

Type of connectable conductor cross-sections — solid with core end processing

2x (0.5 ... 0.75 mm²)

Type of connectable conductor cross-sections — solid without core end processing

2x (1.0 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (1,0 ... 1,5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (18 ... 14)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque with screw-type terminals

0.8 ... 0.9 N·m

Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920

50 %

B10 value with high demand rate according to SN 31920

300 000

Device type according to ISO 13849-1

3

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

32.3 mm

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

28.8 mm

Installation width

32.3 mm

Installation depth

49.7 mm

Hole diameter

22.3 mm

Colour button

White

Number of switch positions

3

Colour front ring

Black

Type of electric connection

Screw connection

Supply voltage

5–500 V

Width opening

32.3 mm

Height opening

28.8 mm

Degree of protection (IP)

IP67/IP69K

Material front ring

Plastic

Type of control element

Wing knob

Number of contacts as normally open contact

2

Country of origin

Germany

HS Code

8536.50

• EAN 4011209957640
• SAP 1000688464
• Code 884073
