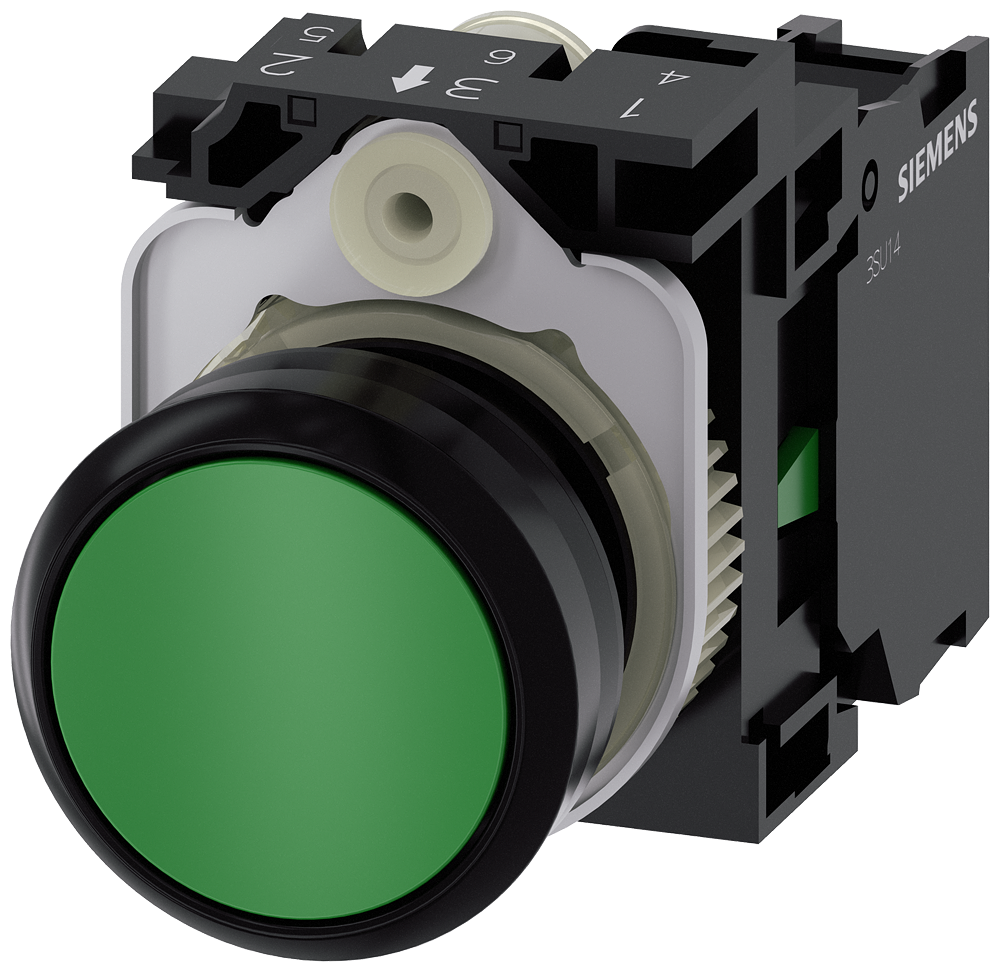

Siemens SIRIUS ACT Pushbutton 22mm Green Momentary 1NO Screw Terminal 3SU1100-0AB40-1BA0

Siemens 3SU1100-0AB40-1BA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Complete 22mm black hard plastic push-button - green.

Manufacturer part number (MPN)

3SU1100-0AB40-1BA0

EAN / GTIN

4011209959378

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Pushbuttons

Design of the product

Complete unit

Product type designation

3SU1

Product line

Plastic, black, 22 mm

Number of command points

1

Design of the actuating element

Button, flat

Principle of operation of the actuating element

momentary contact type

Color of the actuating element

green

Outer diameter of the actuating element

29.45 mm

Number of contact modules

1

Number of LED modules

0

Insulation voltage rated value

500 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

6 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

3 600 1/h

Mechanical service life (operating cycles) typical

10 000 000

Electrical endurance (operating cycles) typical

10 000 000

Thermal current

10 A

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

48 g

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

0

Number of NO contacts for auxiliary contacts

1

Type of electrical connection

screw terminal

Type of electrical connection — of modules and accessories

Screw-type terminal

Type of connectable conductor cross-sections — solid with core end processing

2x (0.5 ... 0.75 mm²)

Type of connectable conductor cross-sections — solid without core end processing

2x (1.0 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (1,0 ... 1,5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (18 ... 14)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque with screw-type terminals

0.8 ... 0.9 N·m

Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920

50 %

B10 value with high demand rate according to SN 31920

10 000 000

Device type according to ISO 13849-1

3

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

11 mm

Installation width

29.5 mm

Installation depth

49.7 mm

Hole diameter

22.3 mm

Colour button

Green

Number of command positions

1

Type of button

Mushroom

Colour front ring

Black

Type of electric connection

Screw connection

Width opening

29.5 mm

Height opening

11 mm

Degree of protection (IP)

IP67/IP69K

Material front ring

Plastic

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50
