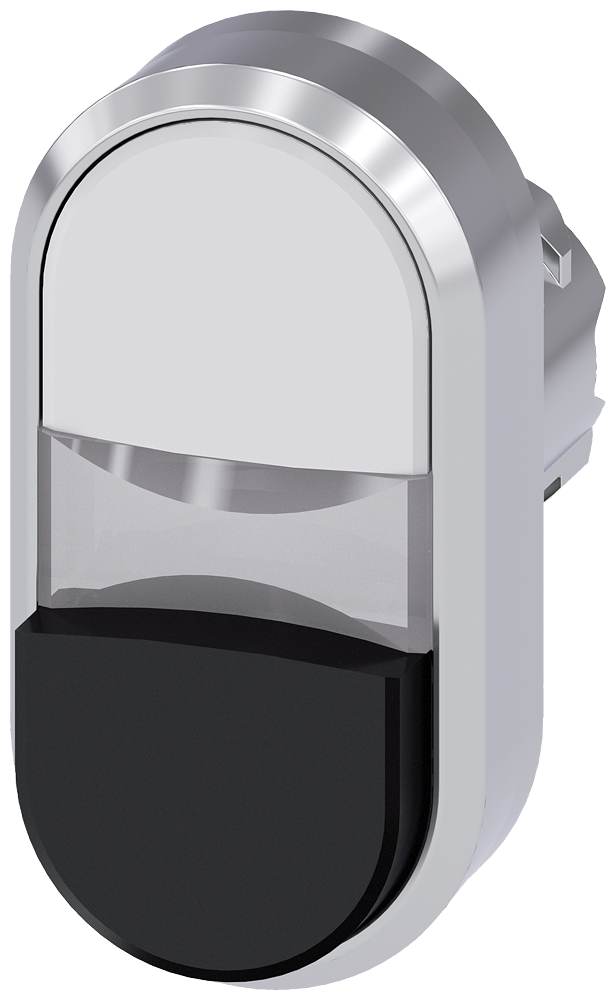

Siemens SIRIUS Twin pushbutton, 22 mm, round, metal, shiny, white, black, pushbuttons, flat and raised
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1050-3BB61-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Twin push-button head- White/Black 22mm round blank metal.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1050-3BB61-0AA0
- EAN / GTIN
- 4011209962866
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Twin pushbuttons
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Flat/raised buttons
- Principle of operation of the actuating element
- momentary contact type
- Product extension optional — light source
- No
- Product extension optional — contact module
- Yes
- Color of the actuating element
- white / black
- Material of the actuating element
- plastic
- Shape of the actuating element
- oval
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- Metal, high gloss
- Color of the front ring
- silver
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Operating frequency maximum
- 3 600 1/h
- Mechanical service life (operating cycles) typical
- 2 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 67 g
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 57.9 mm
- Installation/ mounting/ dimensions — width
- 29.9 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 18.7 mm
- Installation width
- 29.9 mm
- Installation depth
- 25.5 mm
- Hole diameter
- 22.3 mm
- Colour button
- Black/white
- Number of command positions
- 1
- Labelled
- No
- Width opening
- 29.9 mm
- Height opening
- 18.7 mm
- With protective cover
- No
- Material front ring
- Metal
- Construction type lens
- Oval
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209962866
- SAP 1000688321
- Code 8605716
