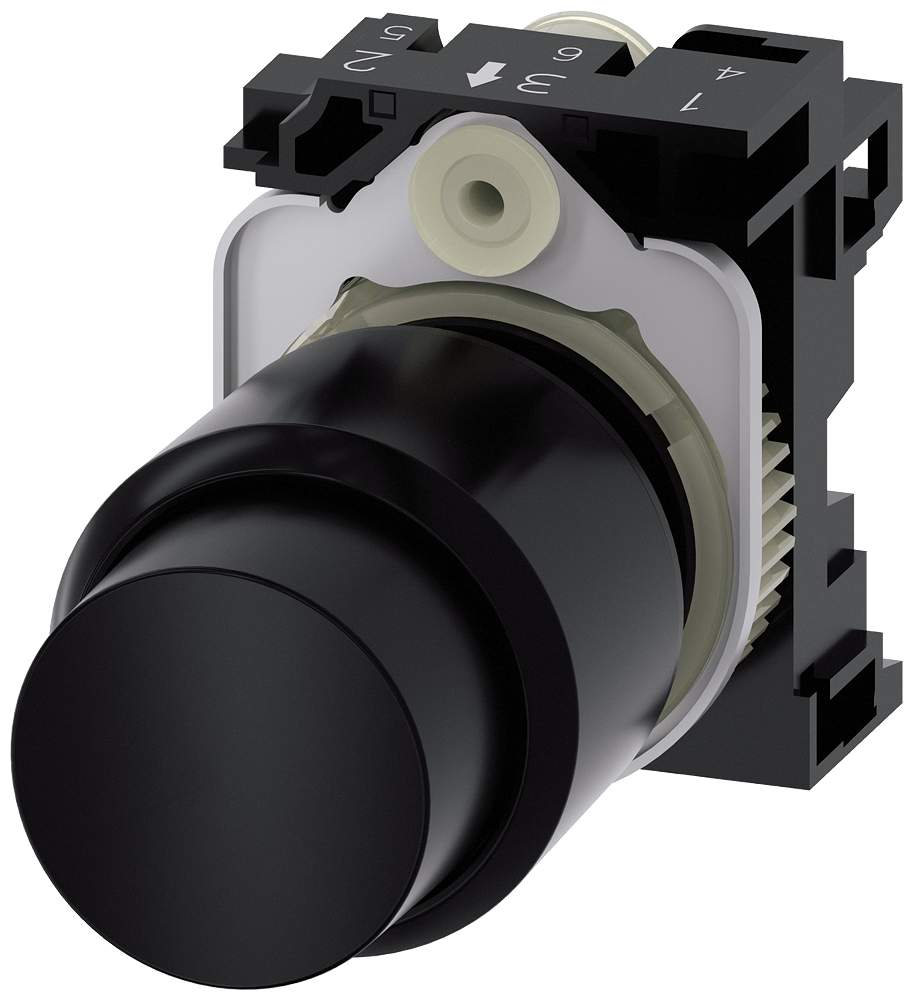

Siemens 3SU1200-0FB10-0AA0 SIRIUS ACT 22 mm Compact Extended-Stroke Pushbutton Black
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1200-0FB10-0AA0 — SIRIUS ACT 22 mm command and signalling device. Compact pushbutton with a 12 mm extended stroke, raised black hard-plastic actuator, momentary action and holder in the 22 mm cutout family. IP66/IP67/IP69K front protection, ~5,000,000 mechanical operating cycles.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1200-0FB10-0AA0
- EAN / GTIN
- 4011209973848
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Pushbuttons
- Design of the product
- Complete unit
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Raised button with extended stroke
- Principle of operation of the actuating element
- momentary contact type
- Product extension optional — light source
- No
- Product extension optional — contact module
- Yes
- Color of the actuating element
- black
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 29.5 mm
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 3 600 1/h
- Mechanical service life (operating cycles) typical
- 5 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 49 g
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 40 mm
- Installation/ mounting/ dimensions — width
- 30 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 32.5 mm
- Installation width
- 29.5 mm
- Installation depth
- 30.9 mm
- Hole diameter
- 22.3 mm
- Colour button
- Black
- Number of command positions
- 1
- Labelled
- No
- Colour front ring
- Black
- Width opening
- 29.5 mm
- Height opening
- 32.5 mm
- With protective cover
- No
- Material front ring
- Plastic
- Construction type lens
- Round
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209973848
- SAP 1000688315
- Code 8396826
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AB71-0QY0
Siemens
Siemens 3RV2902-1DF0 Shunt Release AC 90-110 V for 3RV2 S00/S0
Siemens
Siemens Alpha 630 Din, Plinth, H=100 B=550 D=210
8GK9901-0KK22
Siemens
Siemens S6 contactor, 90KW/400V/AC-3 3RT1056-6AF36
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD5240-0RE10-0, 1250 A, 4-Pole, Front Operated Left, without Rotary Handle
Siemens
Siemens Electrical Products SIRIUS Simocode pro V Sum 3UL2305-1A
Siemens

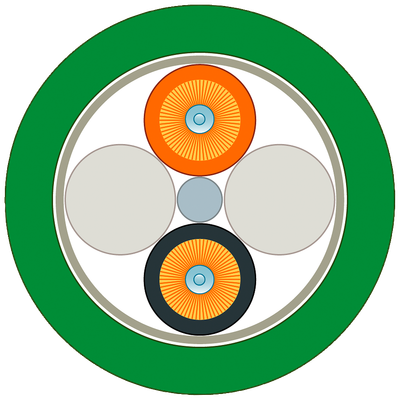

Siemens PCF STANDARD CABLE
6XV1861-2A
Siemens

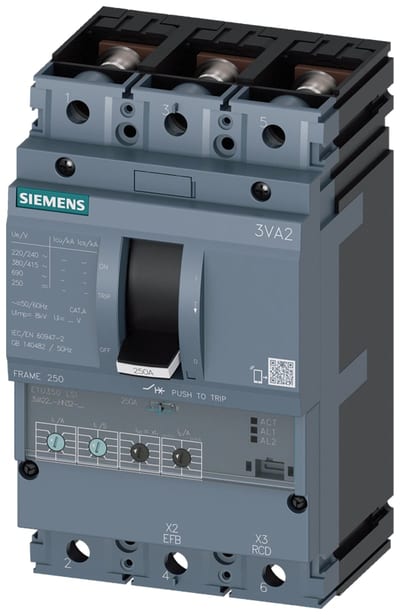

Siemens MCCB_3VA22_3P_55KA_ETU350,LSI,IN=160A,IR=64A-160A,ISD=1,5-10XIR,II=12XIN,B
