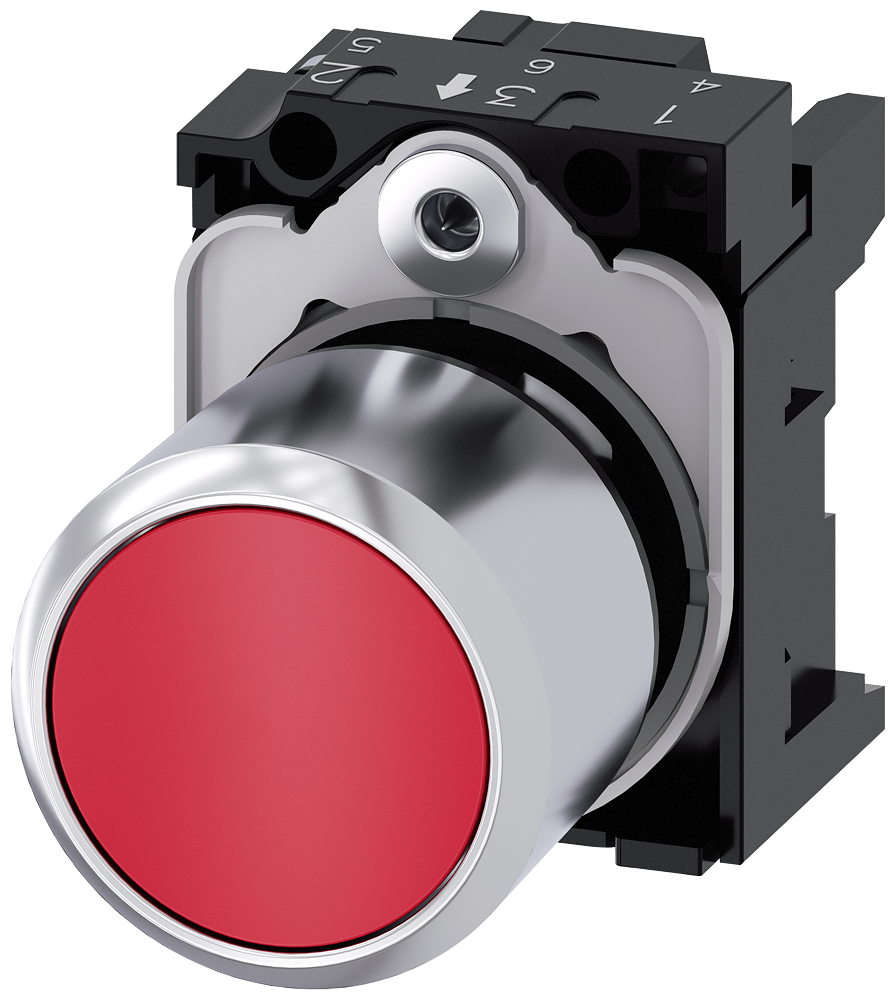

Siemens SIRIUS Compact Pushbutton 22 mm Red Metal Extended
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1250-0EB20-0AA0 - SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. Complete SIRIUS ACT compact pushbutton in red, 22 mm round shiny metal.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1250-0EB20-0AA0
- EAN / GTIN
- 4011209973930
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Pushbuttons
- Design of the product
- Complete unit
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Flat button with extended stroke
- Principle of operation of the actuating element
- momentary contact type
- Product extension optional — light source
- No
- Product extension optional — contact module
- Yes
- Color of the actuating element
- red
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 29.5 mm
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- Metal, high gloss
- Color of the front ring
- silver
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 3 600 1/h
- Mechanical service life (operating cycles) typical
- 5 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 104 g
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 40 mm
- Installation/ mounting/ dimensions — width
- 30 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 20.3 mm
- Installation width
- 29.5 mm
- Installation depth
- 30.9 mm
- Hole diameter
- 22.3 mm
- Colour button
- Red
- Number of command positions
- 1
- Labelled
- No
- Width opening
- 29.5 mm
- Height opening
- 20.3 mm
- With protective cover
- No
- Material front ring
- Metal
- Construction type lens
- Round
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209973930
- SAP 1000688311
- Code 883515
