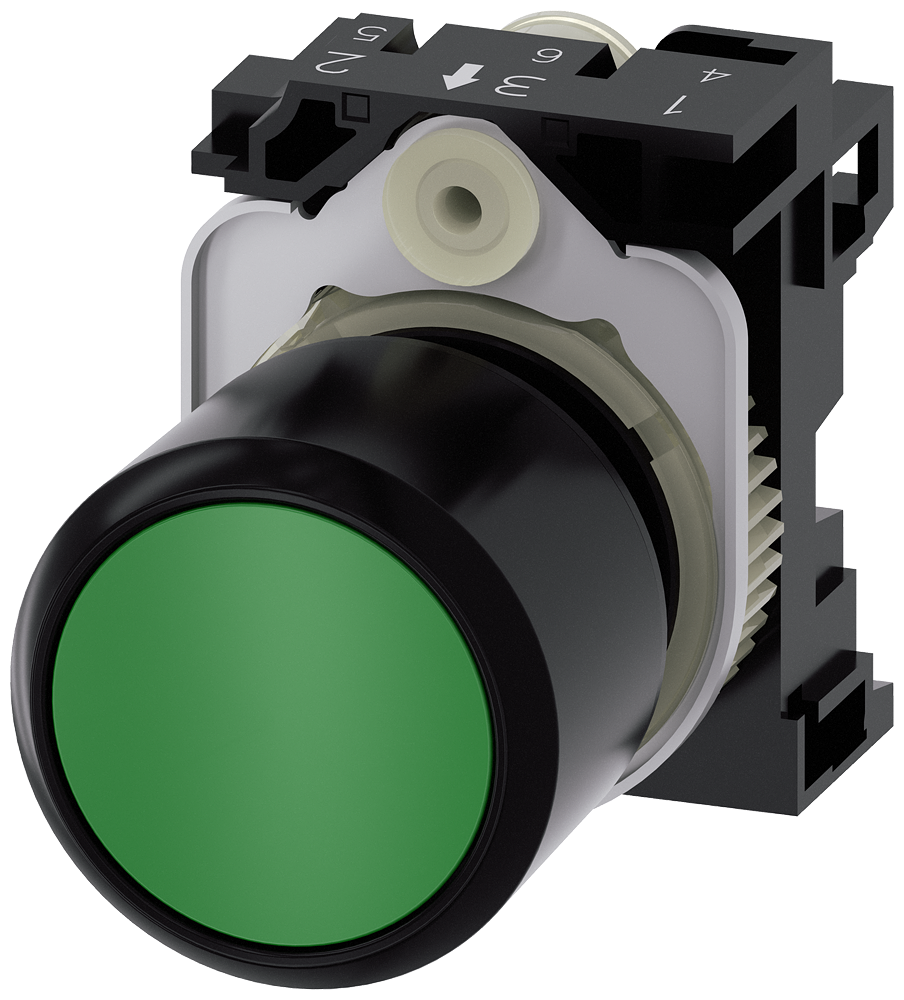

Siemens SIRIUS ACT 3SU1200-0EB40-0AA0 Pushbutton 22 mm Plastic Green with Holder
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1200-0EB40-0AA0 — SIRIUS ACT 22 mm command and signalling device. Compact flat pushbutton with 12 mm extended stroke and momentary contact operation, green plastic actuator, supplied with holder. Round black plastic front ring for the 22 mm cutout family.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1200-0EB40-0AA0
- EAN / GTIN
- 4011209973879
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Pushbuttons
- Design of the product
- Complete unit
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Flat button with extended stroke
- Principle of operation of the actuating element
- momentary contact type
- Product extension optional — light source
- No
- Product extension optional — contact module
- Yes
- Color of the actuating element
- green
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 29.5 mm
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 3 600 1/h
- Mechanical service life (operating cycles) typical
- 5 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 48 g
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 40 mm
- Installation/ mounting/ dimensions — width
- 30 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 20.3 mm
- Installation width
- 29.5 mm
- Installation depth
- 30.9 mm
- Hole diameter
- 22.3 mm
- Colour button
- Green
- Number of command positions
- 1
- Labelled
- No
- Colour front ring
- Black
- Width opening
- 29.5 mm
- Height opening
- 20.3 mm
- With protective cover
- No
- Material front ring
- Plastic
- Construction type lens
- Round
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209973879
- SAP 1000688307
- Code 883484
