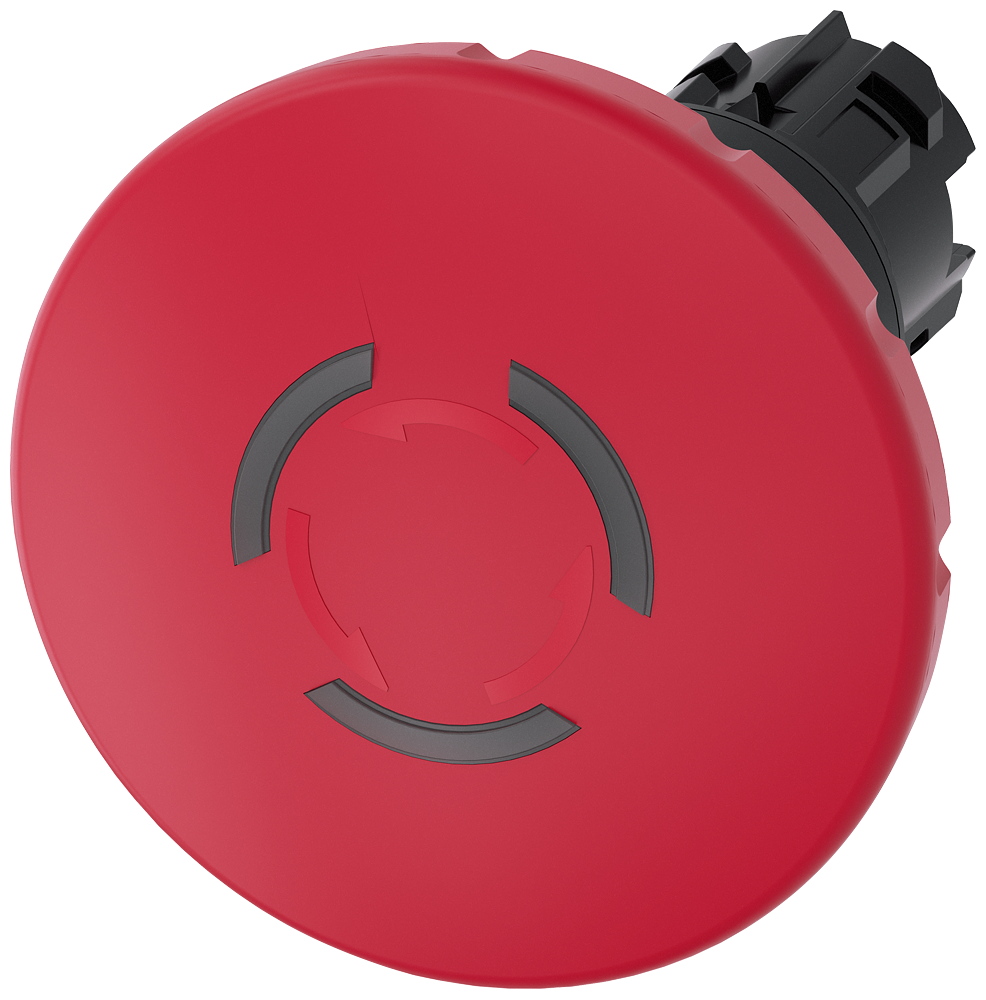

Siemens SIRIUS ACT 22 mm Emergency Stop Mushroom Pushbutton Red Ø60 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1001-1JB20-0AA0 is a SIRIUS ACT 22 mm illuminable emergency-stop mushroom pushbutton with a 60 mm red plastic actuator and rotate-to-unlatch mechanism, conforming to EN ISO 13850 with positive latching and positive opening. The plastic-black platform is rated IP66 / IP67 / IP69K and NEMA 4X / 12 / 13 for industrial and outdoor panels. Mechanical service life of 300,000 operating cycles at up to 600 operations per hour.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1001-1JB20-0AA0
- EAN / GTIN
- 4011209964723
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- EMERGENCY STOP mushroom pushbuttons
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Number of command points
- 1
- Design of the actuating element
- positive latching
- Principle of operation of the actuating element
- latching
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- Yes
- Color — of the actuating element
- red
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 60 mm
- Type of unlocking device
- rotate-to-unlatch mechanism
- Number of switching positions
- 2
- Product component front ring
- No
- Product function — positive opening
- Yes
- Product function — EMERGENCY OFF function
- Yes
- Product function — EMERGENCY STOP function
- Yes
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 600 1/h
- Mechanical service life (operating cycles) typical
- 300 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 59 g
- Product function suitable for safety function
- Yes
- Service life maximum
- 20 a
- Test wear-related service life necessary
- Yes
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 100 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- Device type according to ISO 13849-1
- 3
- Safety device type according to IEC 61508-2
- Type A
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 45.3 mm
- Installation width
- 60 mm
- Installation depth
- 26.3 mm
- Hole diameter
- 22.3 mm
- Colour button
- Red
- Unlocking method
- Turn-release
- Diameter cap
- 60 mm
- Type of button
- High
- With lighting
- Yes
- Width opening
- 60 mm
- Height opening
- 45.3 mm
- Degree of protection (IP)
- IP67/IP69K
- Construction type lens
- Round
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209964723
- SAP 1000688305
- Code 883472
Product Documentation
More from Siemens
Siemens
Siemens 3SE7920-1AB
Siemens

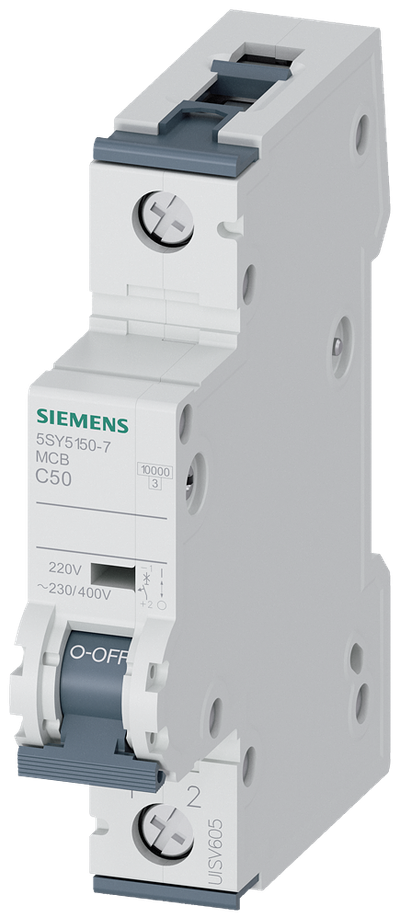

Siemens SENTRON 5SY5150-7 Miniature Circuit Breaker 1-Pole C50A 10KA
Siemens

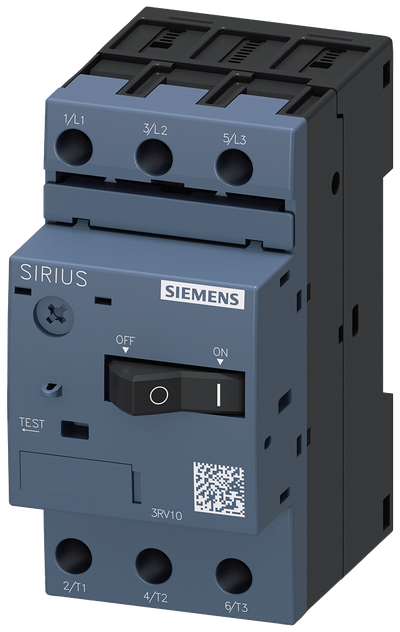

Siemens 3RV1011-1FA10
Siemens
Siemens SENTRON 5SP4191-8 Miniature Circuit Breaker 1-Pole D100A 10KA
Siemens
Siemens FO GROUND CABLE (50/125)
6XV1873-2G
Siemens

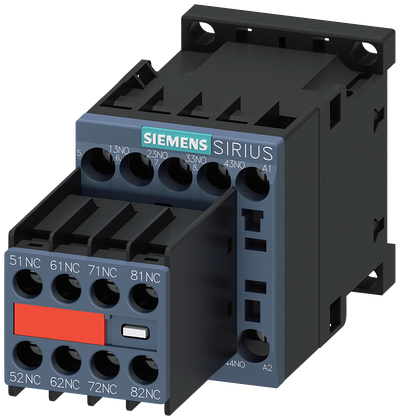

Siemens Contactor Relay, 4NO+4NC, DC 24V, Size S00, Screw Terminal Connection
3RH2244-1BB40
Siemens
Siemens ENERGY CABLE 2-Conductor
6XV1812-8A
Siemens

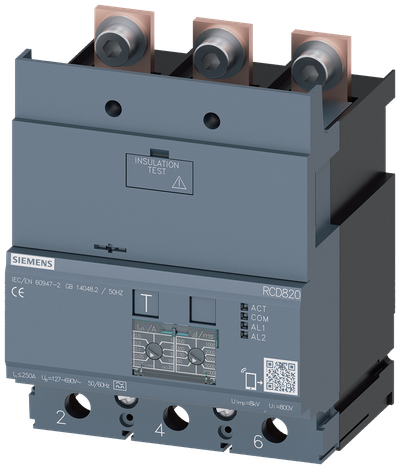

Siemens SENTRON 3VA9223-0RL30 — Residual-current device module (RCD820), 3-Pole, 3VA22
