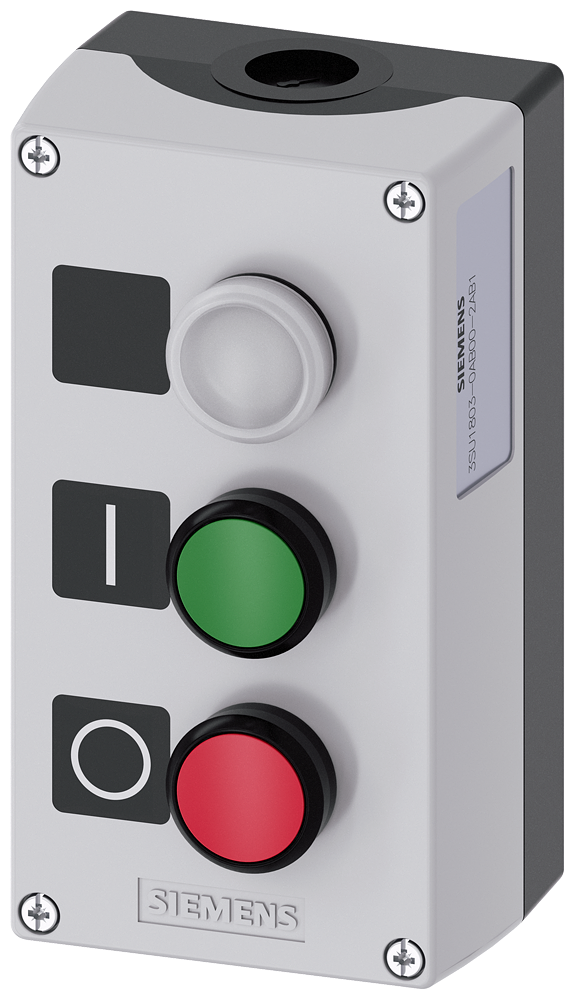

Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, C=Indicator light clear, label LED 24 V, screw terminal, B=Pushbutton green, label: I, 1 NO, screw terminal, A=Pushbutton red, label: O, 1 NC, screw terminal, floor mounting, 1XM20 each on top and bottom, Labels enclosed

Siemens 3SU1803-0AB00-2AB1 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Complete box: 3 hole Grey top section rigid plastic enclosure.

Manufacturer part number (MPN)

3SU1803-0AB00-2AB1

EAN / GTIN

4011209970205

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Enclosures

Product type designation

3SU1

Equipment of commanding and signaling device

A = Pushbutton / B = Pushbutton / C = Indicator light

Design of the housing

with recess for label

Shape of the enclosure front

rectangular

Material of the enclosure

plastic

Number of command points

3

Product component — EMERGENCY STOP device

No

Product component — protective collar

No

Color of the enclosure top part

grey

Delivery state — as a kit

No

Delivery state — pre-wired on strip terminal

No

Fastening method of the enclosure

Vertical

Design of the actuating element

Pushbutton / pushbutton / indicator light

Suitability for use EMERGENCY OFF switch

No

Color of the actuating element

A = red / B = green / C = clear

Material of the actuating element

plastic

Shape of the actuating element

round

Number of contact modules

2

Type of unlocking device

A = none / B = none / C = none

Design of the front ring

Standard

Material of the front ring

plastic

Color of the front ring

black

Material of the holder

Plastic

Number of LED modules

1

Protection class IP

IP66, IP67, IP69(IP69K)

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12K, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Reference code according to IEC 81346-2

S

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

At AC — at 50 Hz rated value

24 V

At AC — at 60 Hz rated value

24 V

At AC — at DC rated value

24 V

Design of the interface for communication

without

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

1

Number of NO contacts for auxiliary contacts

1

Type of electrical connection of modules and accessories

Screw-type terminal

Type of electrical connection on enclosure

Cable routing above and below, both 1 x M20

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque of fixing screws in the enclosure cover

1.5 ... 1.7 N·m

Tightening torque with screw-type terminals

0.8 ... 0.9 N·m

Light intensity

900 ... 1 400 mcd

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method of modules and accessories

Floor mounting

Installation/ mounting/ dimensions — height

154 mm

Installation/ mounting/ dimensions — width

85 mm

Installation/ mounting/ dimensions — depth

75.8 mm

Shape of the installation opening

round

Number of labels

3

Marking of the name plate for command devices

A = O / B = I / C = without inscription

Color of the label

A = black / B = black / C = black

Number of inscription plates

0

Number of command positions

3

Colour housing cover

Grey

Housing material

Plastic

Number of indicator lights

1

Degree of protection (IP)

IP67/IP69K

Number of push buttons

2

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50
