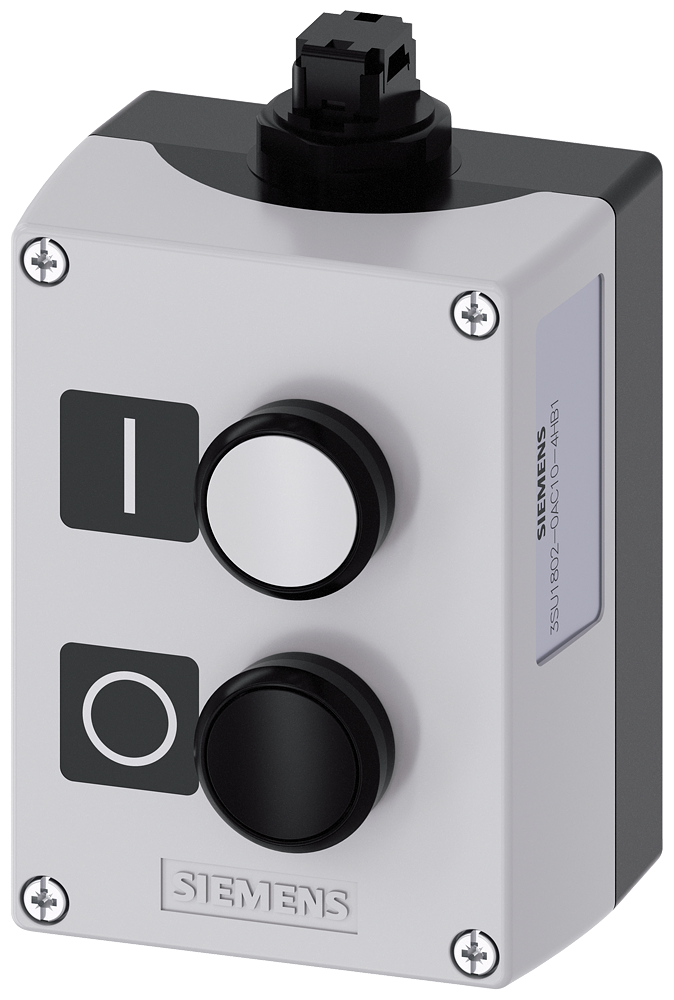

Siemens SIRIUS AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 2 control points plastic, Recess for labels, B=Pushbutton white, label: I, 1 NO, spring-type terminal, A=Pushbutton black label: O 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top, Labels enclosed

Siemens 3SU1802-0AC10-4HB1 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Complete box:2-AS-Interface Grey top section rigid plastic enclosure.

Manufacturer part number (MPN)

3SU1802-0AC10-4HB1

EAN / GTIN

4011209970397

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Enclosures

Product type designation

3SU1

Equipment of commanding and signaling device

A = Pushbutton / B = Pushbutton

Manufacturer's article number — of supplied contact module at the command point A 1

3SU1400-2AA10-3CA0

Manufacturer's article number — of supplied contact module at the command point B 2

3SU1400-2AA10-3BA0

Manufacturer's article number — of the supplied holder at the command point A

3SU1500-0AA10-0AA0

Manufacturer's article number — of the supplied holder at the command point B

3SU1500-0AA10-0AA0

Manufacturer's article number — of the supplied actuator at the command point A

3SU1000-0AB10-0AA0

Manufacturer's article number — of the supplied actuator at the command point B

3SU1000-0AB60-0AA0

Manufacturer's article number — of supplied empty enclosure

3SU1802-0AA00-0AB1

Manufacturer's article number — of the supplied accessories at the command point A

3SU1900-0AF16-0QA0

Manufacturer's article number — of the supplied accessories at the command point B

3SU1900-0AF16-0QB0

Design of the housing

with recess for label

Shape of the enclosure front

rectangular

Material of the enclosure

plastic

Number of command points

2

Product component — EMERGENCY STOP device

No

Product component — protective collar

No

Color of the enclosure top part

grey

Delivery state — as a kit

No

Delivery state — pre-wired on strip terminal

Yes

Fastening method of the enclosure

Vertical

Design of the actuating element

Pushbutton / pushbutton

Suitability for use EMERGENCY OFF switch

No

Product feature lockout

No

Product extension optional light source

No

Color of the actuating element

A = black / B = white

Material of the actuating element

plastic

Shape of the actuating element

round

Number of contact modules

2

Type of unlocking device

A = none / B = none

Product component front ring

Yes

Design of the front ring

Standard

Material of the front ring

plastic

Color of the front ring

black

Material of the holder

Plastic

Number of LED modules

0

Product function — positive opening

Yes

Product function — EMERGENCY OFF function

No

Product function — EMERGENCY STOP function

No

Protection class IP

IP66, IP67, IP69(IP69K)

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12K, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Reference code according to IEC 81346-2

S

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

480 g

At AC — at 50 Hz rated value

18 ... 31.6 V

At AC — at 60 Hz rated value

18 ... 31.6 V

At AC — at DC rated value

18 ... 31.6 V

Cable entry type

Adapter ASI shaped cable (insulation displacement method) M20 cable entry

Design of the interface for communication

AS-i

Type of electrical connection of the communication interface

Insulation piercing technology top/right

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

1

Number of NO contacts for auxiliary contacts

1

Type of electrical connection of modules and accessories

Spring-type terminal

Type of electrical connection on enclosure

Adapter ASI shaped cable (insulation displacement method)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Tightening torque of fixing screws in the enclosure cover

1.5 ... 1.7 N·m

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method of modules and accessories

Floor mounting

Installation/ mounting/ dimensions — height

134.4 mm

Installation/ mounting/ dimensions — width

85 mm

Installation/ mounting/ dimensions — depth

75 mm

Shape of the installation opening

round

Number of labels

2

Marking of the name plate for command devices

A = O / B = I

Color of the label

A = black / B = black

Number of inscription plates

0

Number of command positions

2

Colour housing cover

Grey

Housing material

Plastic

Degree of protection (IP)

IP67/IP69K

Number of push buttons

2

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50
