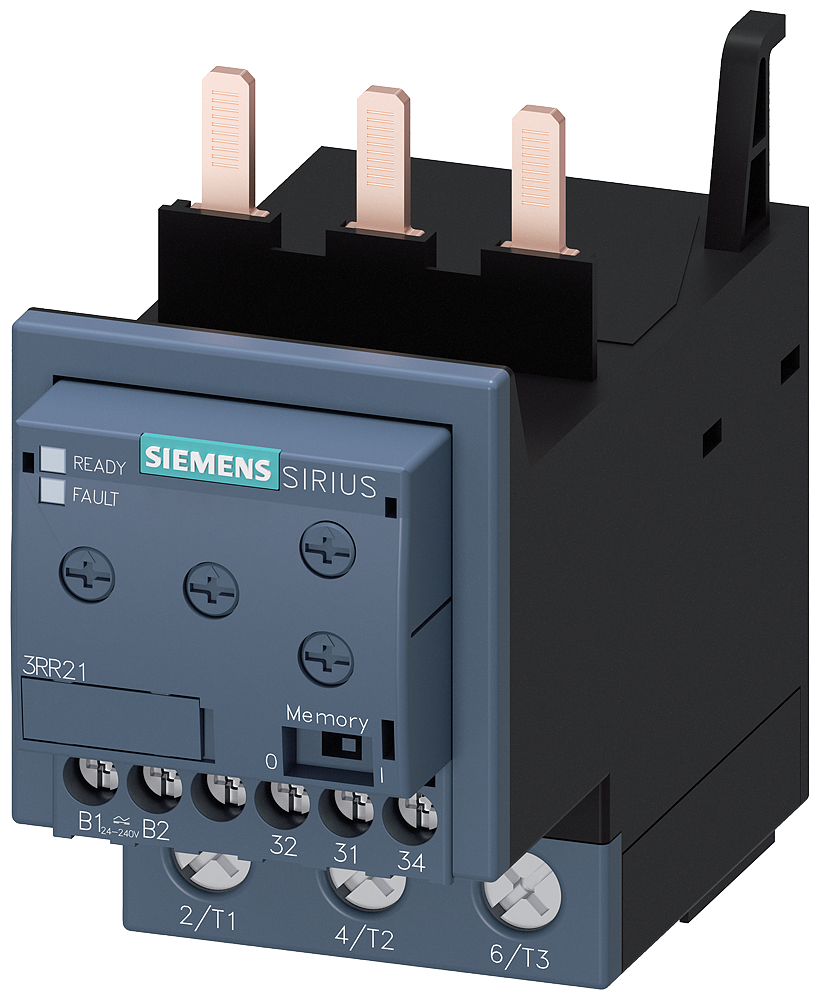

Siemens 3RR2143-1AW30 current-monitoring relay, 8-80 A, 24-240 V AC/DC, screw terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RR2143-1AW30 current-monitoring relay, size S2, 8-80 A, 24-240 V AC/DC, with screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RR2143-1AW30
- EAN / GTIN
- 4011209940093
- Sales unit
- pcs
- Voltage
- 24-240 V
- Setting range
- 8-80 A
- Operating voltage AC 50 Hz
- 24–240 V
- Operating voltage AC 60 Hz
- 24–240 V
- Operating voltage DC
- 24–240 V
- Supply voltage AC 50 Hz
- 24–240 V
- Supply voltage AC 60 Hz
- 24–240 V
- Supply voltage DC
- 24–240 V
- Response value amperage 1
- 8–80 A
- Response value amperage 2
- 8–80 A
- Type of current
- AC
- Voltage type (supply voltage)
- AC/DC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- Voltage type for actuating
- AC/DC
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 60 s
- Min. adjustable off-delay time
- 0 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 1
- External current transformer
- No
- Width
- 55 mm
- Height
- 99 mm
- Depth
- 112 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209940093
- SAP 1200022154
- Code 81418517
Product Documentation
