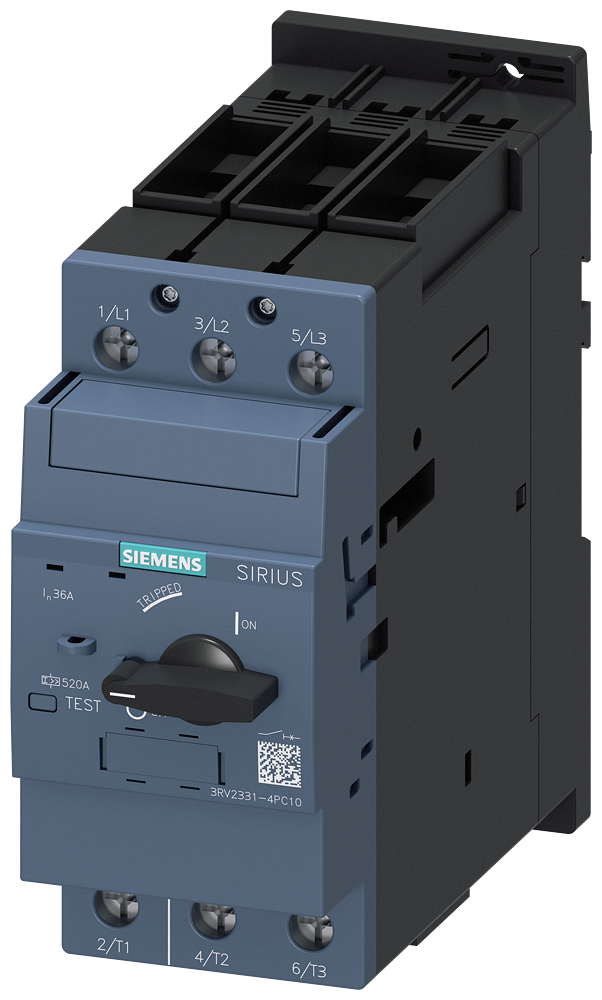

Siemens SIRIUS Motor protection circuit breaker 36A
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2331-4PC10 SIRIUS Motor protection circuit breaker 36A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2331-4PC10
- EAN / GTIN
- 4011209945999
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 36 A
- Width
- 55 mm
- Height
- 140 mm
- Depth
- 149 mm
- Rated operation power at AC-3, 400 V
- 18.5 kW
- Rated permanent current Iu
- 36 A
- Number of poles
- 3
- Power loss
- 20 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- No
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 11 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 65 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209945999
- SAP 1000790352
- Code 81402244
Product Documentation
More from Siemens
Siemens
Siemens Current transformer 300/5A 5VA K0,5
4NC5224-2DE21
Siemens
Siemens Alpha KIT 3KF2, 300X500
8GK4723-2KK10
Siemens
Siemens MCCB_3VA21_3P_55KA_ETU550,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2110-5JP32-0AA0
Siemens
Siemens MCCB_3VA23_3P_55KA_ETU850,LSI,IN=250A,IR=100A-250A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2325-5KP32-0AA0
Siemens
Siemens Electronic Motor protection relay 50-200 A 3RB2056-2FW2
Siemens
Siemens SIRIUS Indicator light, 22 mm, round, plastic, blue, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, screw terminal
3SU1102-6AA50-1AA0
Siemens
Siemens INSTA contactor 0/1 automatic with 3 NO contacts and 1 NC contact for 230 V, 400 V AC 25 A activation 230 V AC
5TT5831-6
Siemens

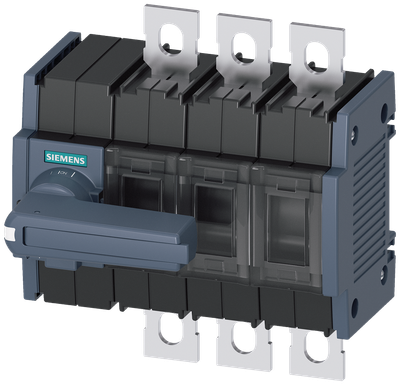

Siemens SENTRON 3KD Switch-Disconnector 3KD3632-0NE10-0, 200 A, 3-Pole, Front Operated Left, without Rotary Handle
