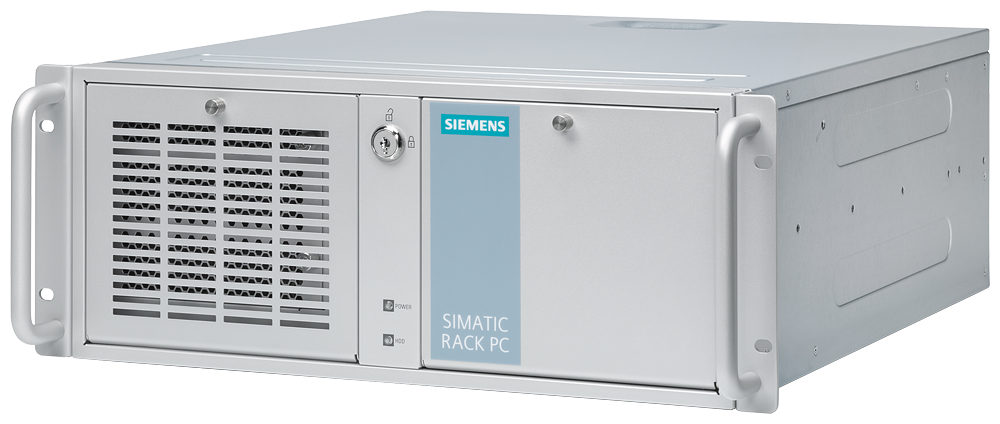

Siemens SIMATIC IPC347G (rack PC, 19", 4 U); Core I7 6700 (4C/8T, 3
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6AG4012-2CA20-0BX0 SIMATIC IPC347G (rack PC, 19", 4 U); Core i7 6700 (4C/8T, 3.4 (4.0) GHz, 8 MB cache).
Technical Specifications
- Manufacturer part number (MPN)
- 6AG4012-2CA20-0BX0
- EAN / GTIN
- 4034106033774
- Sales unit
- pcs
- Rack width
- 19 in
- Rack units
- 4 U
- Number of free PCIe-slots
- 4
- Supporting protocol for EtherCAT
- No
- Supply voltage AC 50 Hz
- 100–240 V
- Supply voltage AC 60 Hz
- 100–240 V
- Number of HW-interfaces industrial Ethernet
- 2
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces RS-232
- 2
- Number of HW-interfaces RS-422
- 2
- Number of HW-interfaces RS-485
- 2
- Number of HW-interfaces USB
- 10
- Number of HW-interfaces other
- 2
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Max. main memory
- 8 Mbyte
- Degree of protection (IP)
- IP20
- Operating temperature
- 5–40 °C
- Construction type housing
- Rack
- With hard disc
- Yes
- Processor clock rate
- 4 GHz
- With graphic card
- Yes
- With sound card
- Yes
- With optical drive
- No
- With floppy disc drive
- No
- Number of free PCI-slots
- 3
- With other storage media
- No
- Suitable for rail mounting
- No
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Number of storage media bays
- 3
- Suitable for safety functions
- No
- Width
- 430 mm
- Height
- 176 mm
- Depth
- 465.8 mm
- Memory capacity hard disc
- 1 TB
- Country of origin
- China
Standards & Compliance
- HS Code
- 8471.50
Cross References
- EAN 4034106033774
- SAP 1200753260
- Code 83919494
