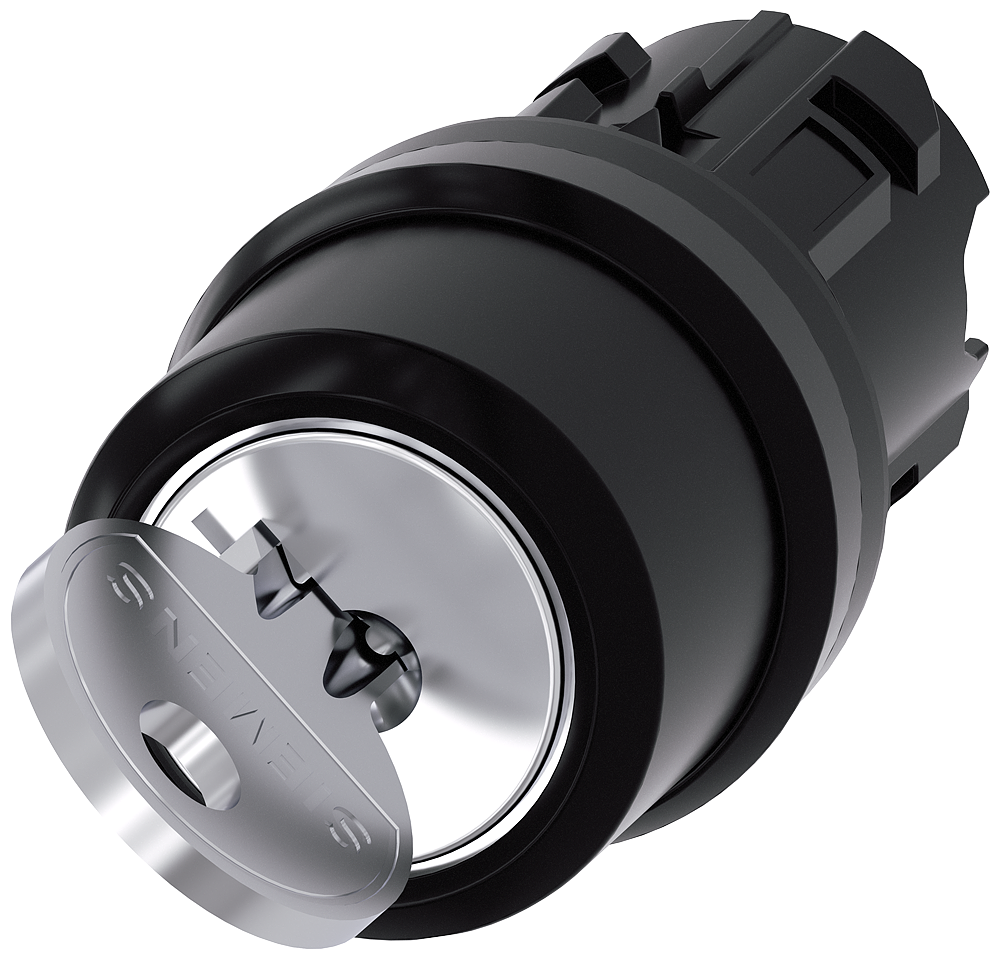

Siemens SIRIUS ACT 3SU1000-4BF01-0AA0 RONIS Key-Operated Switch SB30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1000-4BF01-0AA0 SIRIUS ACT 22 mm plastic key-operated switch with a RONIS SB30 lock, supplied with two keys. Two latching switch positions O-I with a 90 degree actuating angle (10:30 h / 13:30 h) and key removal in position O. Compatible alternate locks include SB31, 421 and 455.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1000-4BF01-0AA0
- EAN / GTIN
- 4011209962521
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Key-operated switches
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Manufacturer's article number of included key
- 3SU1950-0FB80-0AA0
- Principle of operation of the actuating element
- latching, 90° (10:30 h/13:30 h)
- Product extension optional light source
- No
- Color — of the actuating element
- silver
- Material of the actuating element
- metal
- Shape of the actuating element
- Key
- Outer diameter of the actuating element
- 29.5 mm
- Number of switching positions
- 2
- Switch position for key distraction
- O
- Actuating angle — clockwise
- 90°
- Lock make
- RONIS
- Key number
- SB30
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Protection class IP of the terminal
- IP20
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 1 800 1/h
- Mechanical service life (operating cycles) typical
- 1 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 55 g
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 29.5 mm
- Installation/ mounting/ dimensions — width
- 29.5 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 49.4 mm
- Installation width
- 29.5 mm
- Installation depth
- 25.4 mm
- Hole diameter
- 22.3 mm
- Number of switch positions
- 2
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP68
- Width opening
- 29.5 mm
- Height opening
- 49.4 mm
- Material front ring
- Plastic
- Construction type lens
- Rectangular
- Type of control element
- Key
- Colour control element
- Silver
- Degree of protection (NEMA)
- 4X
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209962521
- SAP 1000734704
- Code 8373423
Product Documentation
