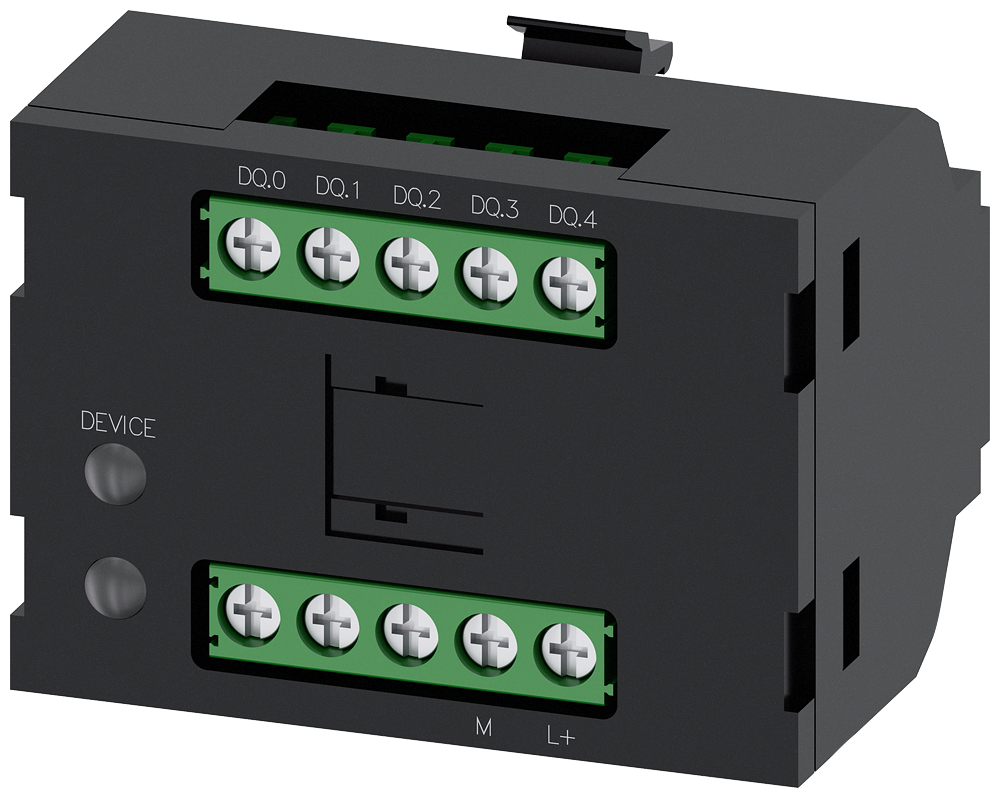

Siemens SIRIUS Electronics module for ID key-operated switch, black, Operating voltage 24 V DC, group ID, screw terminal, for front plate mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1400-1GC10-1AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. Holder for IO-Link module, without IO-Link kommunikasjonsgrensesnitt.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1400-1GC10-1AA0
- EAN / GTIN
- 4011209946651
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Electronic module for ID key-operated switches
- Product type designation
- 3SU1
- Product extension optional light source
- No
- Socket design
- other
- Number of LEDs
- 4
- Insulation voltage rated value
- 30 V
- Degree of pollution
- 3
- Type of voltage — of the operating voltage
- DC
- Type of voltage — of the input voltage
- DC
- Surge voltage resistance rated value
- 0.8 kV
- Consumed current maximum
- 49 mA
- Protection class IP
- IP20, clamping screw tightened
- Reference code according to IEC 81346-2
- P
- General technical data — Net Weight
- 61 g
- Operating voltage — rated value
- 18 ... 30 V
- Operating voltage — at DC rated value
- 24 V
- Operating voltage 1 at DC rated value
- 24 V
- Protocol is supported IO-Link protocol
- No
- Number of NC contacts for auxiliary contacts
- 0
- Number of NO contacts for auxiliary contacts
- 5
- Number of digital inputs
- 0
- Number of digital inputs — safety-related
- 0
- Number of digital outputs
- 5
- Output voltage at digital output at DC rated value
- 23.5 V
- Output current per output
- 250 mA
- Type of electrical connection
- screw terminal
- Type of connectable conductor cross-sections — solid without core end processing
- 1x (0.2 ... 2.5 mm²)
- Type of connectable conductor cross-sections — finely stranded with core end processing
- 1x (0.25 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)
- Type of connectable conductor cross-sections — finely stranded without core end processing
- 1x (0.2 ... 2.5 mm²), 2x (0.2 ... 0.75 mm²)
- Type of connectable conductor cross-sections — for AWG cables
- 1x (26 ... 14)
- Tightening torque with screw-type terminals
- 0.4 N·m
- Product function parameterizable
- No
- MTBF — at 70 °C
- 138 a
- MTBF — at full load at 25 °C
- 141 a
- Touch protection against electrical shock
- finger-safe
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Fastening method
- front plate mounting
- Fastening method — of modules and accessories
- Front plate mounting
- Installation/ mounting/ dimensions — height
- 36 mm
- Installation/ mounting/ dimensions — width
- 50 mm
- Installation/ mounting/ dimensions — depth
- 36.4 mm
- Required spacing with side-by-side mounting — forwards
- 100 mm
- Required spacing with side-by-side mounting — backwards
- 100 mm
- Required spacing with side-by-side mounting — upwards
- 100 mm
- Required spacing with side-by-side mounting — downwards
- 100 mm
- Required spacing with side-by-side mounting — at the side
- 100 mm
- Product function
- Group ID 24 V DC
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4011209946651
- SAP 1000700211
- Code 8416260
Product Documentation
